CNC Machining for HDPE

Precision Machining for HDPE Components
Custom Solutions for Durable HDPE Parts

What is HDPE CNC Machining?

HDPE (High-Density Polyethylene) is a lightweight, tough, chemical-resistant plastic used for trays, guards, cutting boards, fluid handling, and general fixtures. It machines fast with sharp tools and good chip control.

Tooling: Razor-sharp O-flute / polished carbide; high rake to shear, not rub.
Heat control: Air blast or light mist—avoid melting and chip-weld.
Feeds/Speeds: Higher feed with shallow step-over; keep a steady chip load to reduce fuzz.
Workholding: Vacuum/soft jaws; short stick-out for thin panels and large plates.

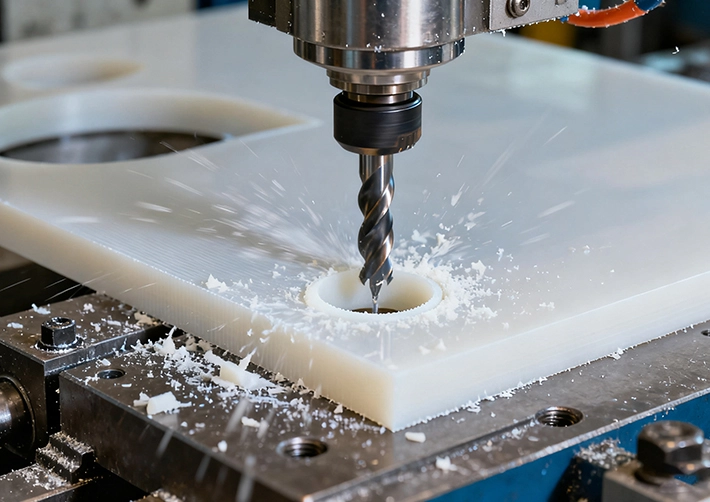

HDPE CNC machining overview with O-flute tooling and air blast

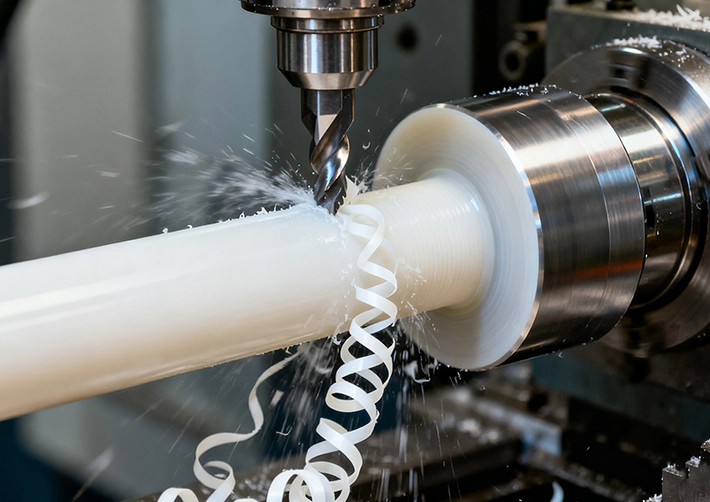

HDPE machining: burr control, smooth finish, chemical resistance

Key Considerations

HDPE is tough yet flexible. Use climb milling for cleaner edges, firm clamping, and a light finish pass on show faces. Deburr gently (blade/tumble) to avoid whitening.

For flatness and tight fits: rough → let the part rest (or lightly condition) → finish passes. Mind thermal expansion and creep on large/thin geometries.

Precision HDPE CNC Machining

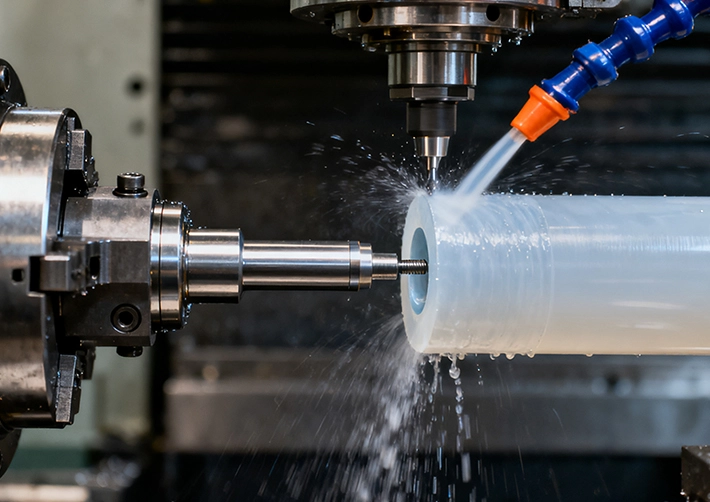

3, 4, 5-Axis CNC Milling

High-speed pocketing and contouring for trays, covers, and fixtures. Balanced holders, sharp tools, and air blast deliver uniform textures ready for assembly.

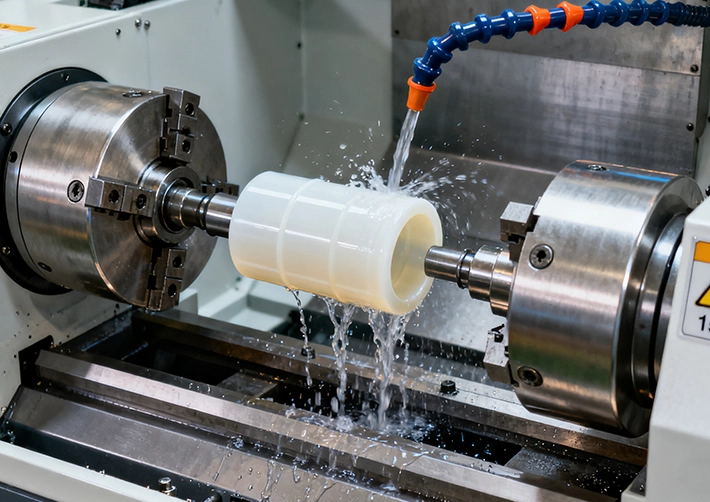

HDPE CNC turning and mill-turn for caps, spacers, and bushings

CNC Turning & Mill-Turn

Smooth OD/ID finishes for fittings and spacers. Positive-rake inserts with generous chip-breaker geometry reduce fuzz and hold consistent diameters.

HDPE CNC Machining Capabilities

Standards	Detail
Max Part Size (X/Y/Z)	2300 × 1500 × 600mm
Minimum Feature Size	⊘1mm
Wall Thickness	0.25mm
Tolerance	+/-0.01
Surface Finish (as milled)	Ra0.5–Ra3.2
Standard Lead Time	3 working-days for rapid prototyping
Pricing Level	To be confirmed after design review
Type of Machine	Gantry CNC / 3-4-5-Axis CNC / Mill-Turn Compound CNC / Swiss-Type CNC / Turning Machine...etc...
Common Grades	HDPE (PE300), HMW-PE (PE500), UV-Stabilized HDPE, ESD/Antistatic PE

Machinable PE Grades

Pick the right mix of stiffness, wear, and UV/weather performance.

HDPE (PE300) HMW-PE (PE500) UV-Stabilized HDPE ESD/Antistatic PE

HDPE machined panel with clean pockets (3:2)

HDPE (PE300)

Good stiffness/impact and chemical resistance
Easy to machine; low moisture uptake
Great for trays, guards, covers
Food/NSF grades available

Use sharp O-flute, steady chip load; light deburr for crisp edges.

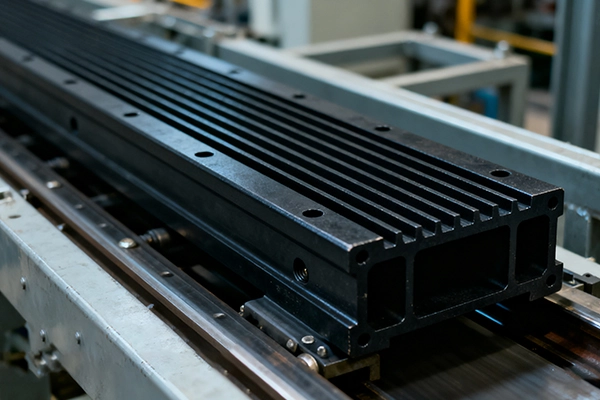

HMW-PE (PE500)

Higher wear and impact vs HDPE
Slightly gummier; sharp tools required
Guides, wear plates, chute liners
Low water absorption

Moderate SFM, firm feed; plan a skim pass for smooth cosmetic faces.

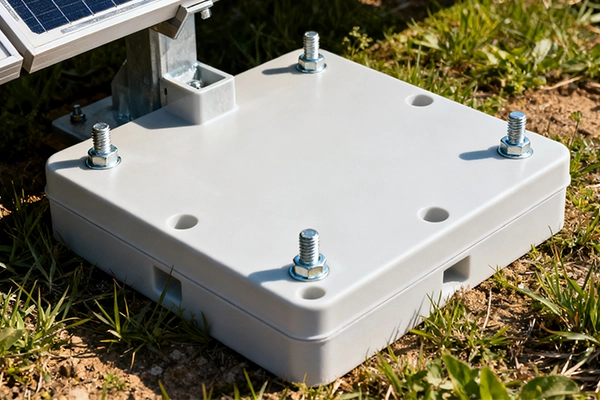

UV-Stabilized HDPE

Outdoor/UV/weather resistance
Marine, playgrounds, signage
Colors/texture options
Machines like standard HDPE

Same parameters as HDPE; verify color/texture and edge finish requirements.

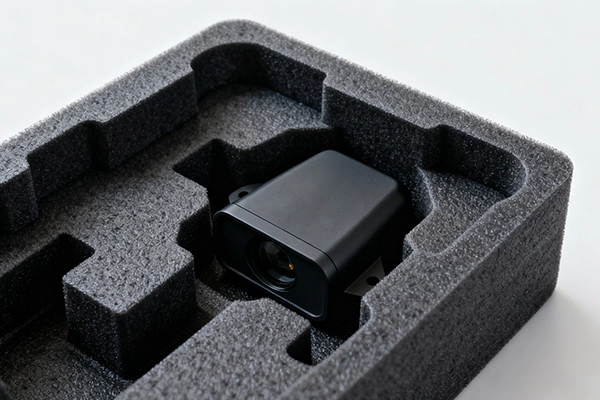

ESD / Antistatic PE

Static-safe handling and tooling
Fillers can change chip behavior
Trays, nests, fixtures
Surface resistivity to spec

Confirm resistivity targets; tune feeds for sharp edges and minimal fuzz.

Display of Our HDPE CNC Machining Parts

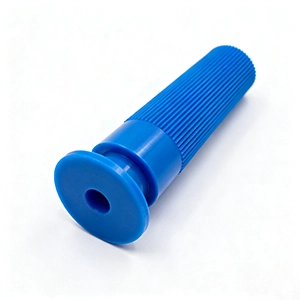

HDPE CNC machined bushing with reamed bore for low-friction rotation

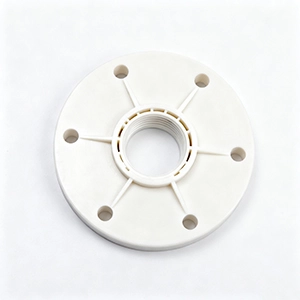

HDPE CNC machined guide rail with smooth sliding surface

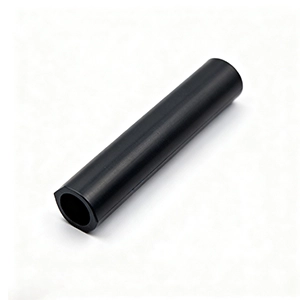

HDPE CNC machined manifold cover plate with milled slots and ports

HDPE CNC machined spacer washer with chamfered edges

HDPE CNC machined wear strip with countersunk holes for mounting

Material Machining Guide

HDPE CNC Machining: Selection, Process, and Quality Notes

HDPE is commonly considered for guides, wear strips, food-processing parts, and chemical-resistant components. It is selected because of toughness, low friction, and chemical resistance. For CNC machining, the final result depends on material grade, toolpath strategy, tolerance allocation, surface finish, and inspection planning.

Good Fit

Use HDPE when the application benefits from toughness, low friction, and chemical resistance and the design can be machined with stable workholding.

Watch Points

Confirm wall thickness, hole depth, thread callouts, burr control, cosmetic surfaces, and finish buildup before production.

Quality Planning

Define critical dimensions, inspection method, tolerance class, and documentation requirements before the first article.

Topic	Practical Guidance for HDPE
Design review	Send 3D CAD, 2D drawings, material grade, finish notes, quantity, and critical-to-function dimensions.
Machining process	MTSPi can review whether milling, turning, drilling, tapping, boring, or a combined route is best for the geometry.
Surface finish	Plan cosmetic and functional finishing early, especially where coating thickness, polishing, or deburring affects fit.
Inspection	Use calipers, micrometers, gauges, CMM, or visual inspection based on tolerance risk and assembly function.

Related Material Choices

Compare HDPE With Nearby CNC Materials

ABSlow cost, impact resistance, and easy machining Acrylicoptical clarity and polished appearance Delrindimensional stability, low friction, and strong machinability Nylonwear resistance, toughness, and fatigue performance PPchemical resistance and low density PEimpact resistance and low moisture absorption PCimpact strength and transparency PEIheat resistance and dimensional stability ULTEMtemperature resistance and strength PEEKhigh temperature, chemical, and wear resistance POMexcellent machinability and dimensional stability TECAFORMAHstable acetal performance and clean machining

FAQ

Is HDPE suitable for CNC machining?

Yes, HDPE can be CNC machined when the grade, geometry, tooling, workholding, and tolerance requirements are planned correctly.

What should I send for a HDPE machining quote?

Send CAD files, 2D drawings, quantity, material grade, finish requirements, tolerance notes, and any inspection or packaging needs.

Can HDPE parts be finished after machining?

Often yes. The right finish depends on the material family and part function. Confirm finish thickness and cosmetic expectations before machining.

How do I reduce cost on HDPE CNC parts?

Use practical tolerances, avoid unnecessary deep pockets or tiny holes, simplify setups, and reserve tight control for functional features.
