Carbon Steel CNC Machining Services

Precision Machining Solutions for Strong & Cost-Effective Carbon Steel Parts
Custom Prototypes and Mass Production with Advanced CNC Technology

What is Carbon Steel CNC Machining?

Carbon steel CNC machining covers low– to medium–carbon grades such as 1018/1020, 1045, A36, and 12L14. These materials are cost-effective, strong, and widely used for shafts, brackets, fixtures, and structural parts.

Tooling: Uncoated or TiN/TiAlN-coated carbide; HSS usable on softer grades.
Coolant: Flood/high-pressure coolant helps chip evacuation and controls heat.
Feeds/Speeds: Maintain steady chip load to avoid glazing and built-up edge.
Rigidity: Solid workholding and short stick-out improve tolerance and finish.

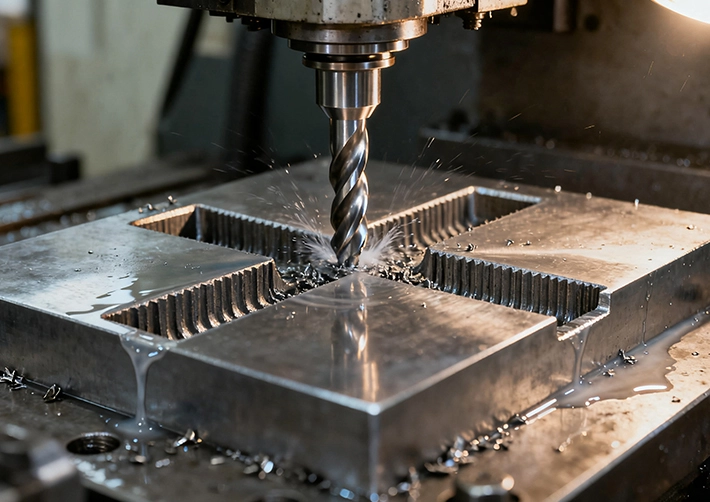

Carbon steel CNC machining overview with coated carbide and flood coolant

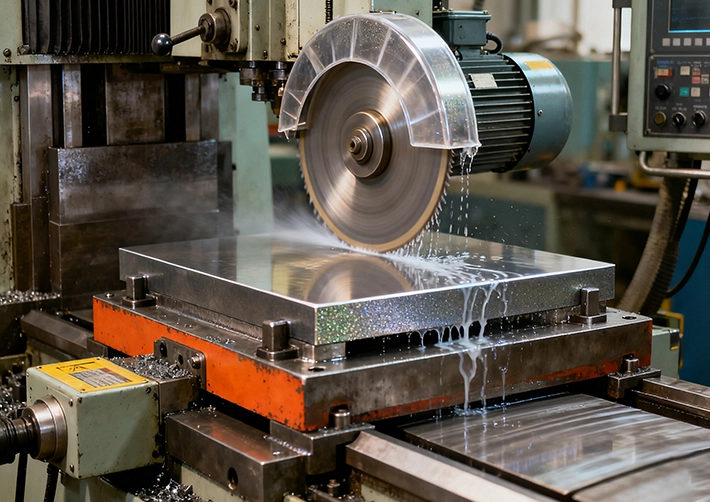

Carbon steel machinability vs hardness and heat treatment

Key Considerations

Machinability varies by grade and condition: free-machining 12L14 cuts fast; 1045 needs lower SFM and rigid setups. For critical dimensions, rough → stress-relieve → finish to minimize distortion.

Typical finishing routes include milling/turning plus grinding or surface treatment (black oxide, phosphate, paint) as required.

Precision Carbon Steel CNC Machining

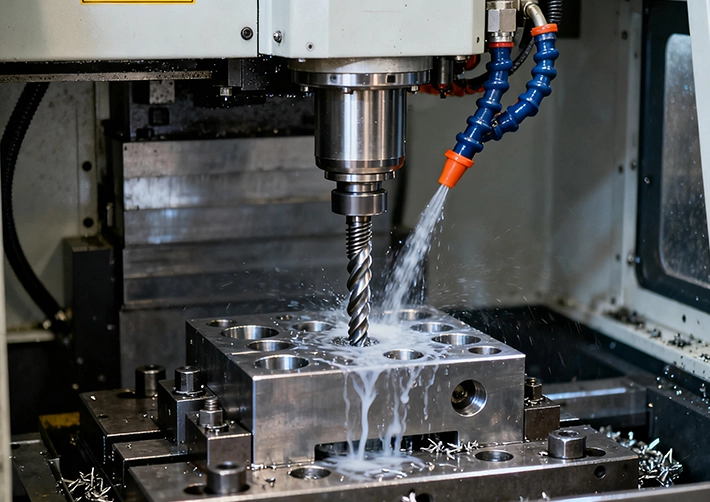

3, 4, 5-Axis CNC Milling

High-accuracy pockets and contours on low/medium-carbon steels. Balanced holders, sharp edges, and controlled chip load deliver clean walls, minimal burrs, and stable dimensions.

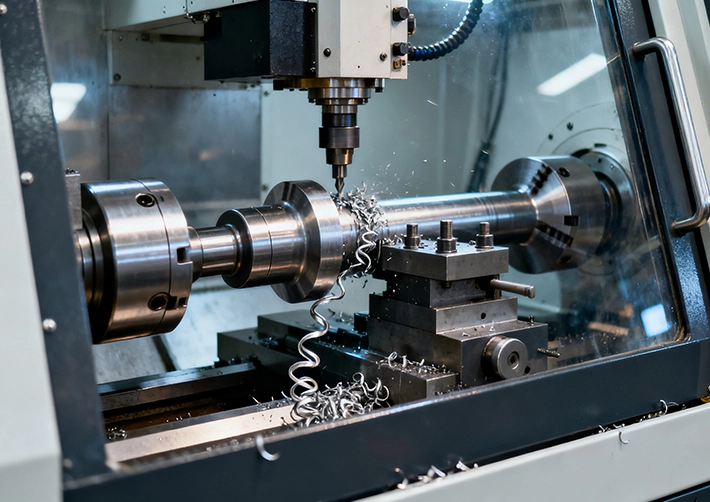

Carbon steel CNC turning and mill-turn for shafts and bushings

CNC Turning & Mill-Turn

Concentric bores and smooth OD/ID finishes for bushings, pins, and shafts. Mill-turn one-setup flow reduces lead time and improves feature alignment and overall quality.

Carbon Steel CNC Machining Capabilities

Feature	Detail
Max Part Size (X/Y/Z)	2300 × 1500 × 600 mm
Minimum Feature Size	⌀1 mm
Wall Thickness	0.25 mm
Tolerance	±0.005 mm
Surface Finish (as milled)	Ra 0.4–3.2 µm
Standard Lead Time	3 working-days for rapid prototyping
Pricing Level	To be confirmed after design review
Type of Machine	Gantry CNC / 3-4-5-Axis CNC / Mill-Turn Compound CNC / Swiss-Type CNC / Turning Machine...etc...
Carbon Steel Grades	1018 / 1020, 1045, 12L14 (Free-Machining), A36 (Structural)

Carbon Steel Grades

Popular grades for budget-friendly, strong components. Need a specific spec? Contact us.

1018 / 1020 1045 12L14 (Free-Machining) A36 (Structural)

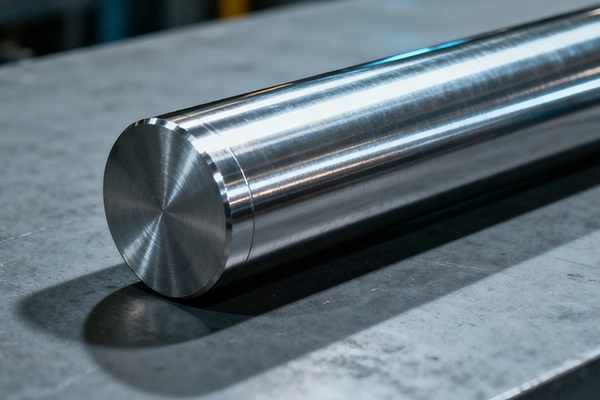

1018 / 1020

Low-carbon; easy to machine and weld
Great for brackets, plates, fixtures
Black oxide/phosphate finish optional
Economical for prototypes & volume

Run higher SFM with sharp tools; deburr and finish as required.

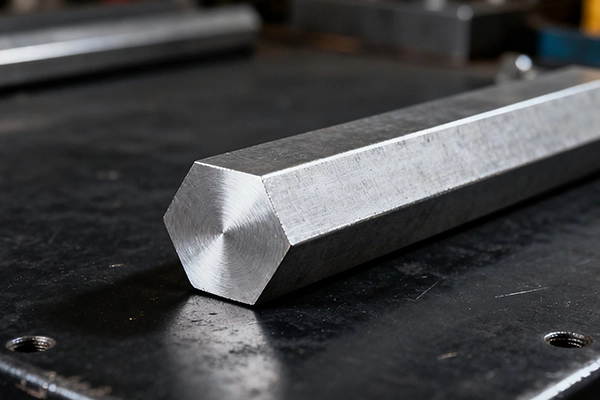

1045 (Medium-Carbon)

Higher strength than 1018/1020
Needs lower SFM; rigid setup
Suitable for shafts, pins, gears
Can be Q&T for wear resistance

Use coated carbide and constant chip to prevent built-up edge.

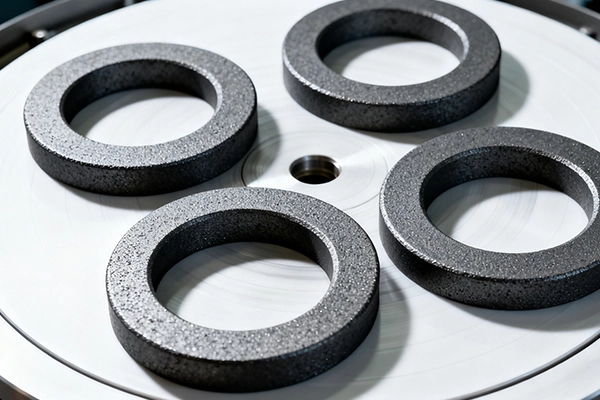

12L14 (Free-Machining)

Excellent machinability; fast cycle times
Ideal for high-volume turned parts
Lower strength; indoor applications
Often plated/coated for corrosion

Optimize with sharp tools and controlled chip breaker for productivity.

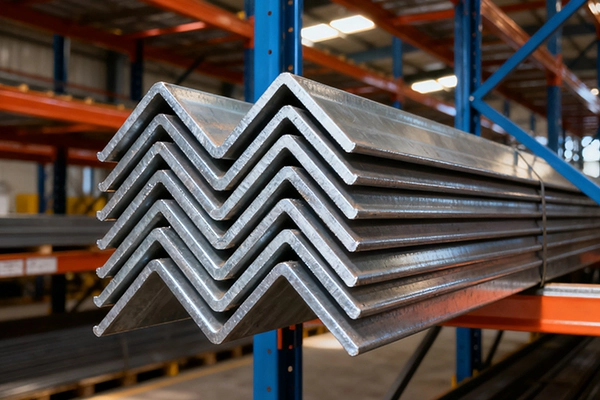

A36 (Structural)

General structural grade; weldable
Variable surface and inclusions
Good for brackets, bases, frames
Finishing: paint/powder/galvanize

Face/skim and fixture securely to manage variability and achieve flatness.

Display of Our CNC Machining Carbon Steel Parts

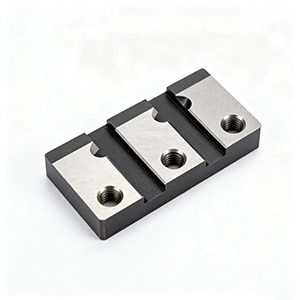

Carbon steel CNC machined bracket with milled pockets and tapped holes

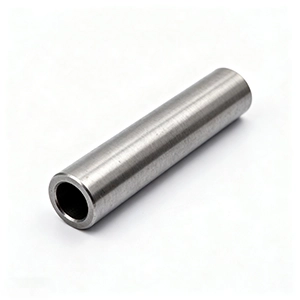

Carbon steel CNC machined flange with bolt circle and countersinks

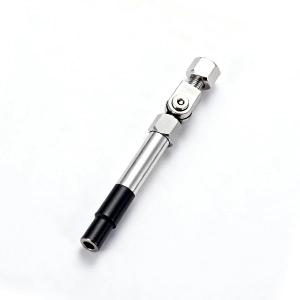

Carbon steel CNC machined housing with precision bores and sealing grooves

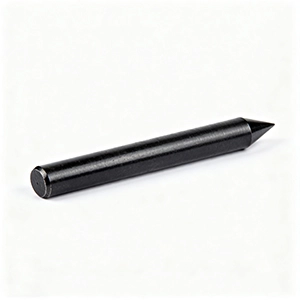

Carbon steel CNC machined shaft with keyway and chamfered ends

Material Machining Guide

Carbon Steel CNC Machining: Selection, Process, and Quality Notes

Carbon Steel is commonly considered for cost-effective structural parts, brackets, shafts, plates, and mechanical components. It is selected because of good strength and economical machining. For CNC machining, the final result depends on material grade, toolpath strategy, tolerance allocation, surface finish, and inspection planning.

Good Fit

Use Carbon Steel when the application benefits from good strength and economical machining and the design can be machined with stable workholding.

Watch Points

Confirm wall thickness, hole depth, thread callouts, burr control, cosmetic surfaces, and finish buildup before production.

Quality Planning

Define critical dimensions, inspection method, tolerance class, and documentation requirements before the first article.

Topic	Practical Guidance for Carbon Steel
Design review	Send 3D CAD, 2D drawings, material grade, finish notes, quantity, and critical-to-function dimensions.
Machining process	MTSPi can review whether milling, turning, drilling, tapping, boring, or a combined route is best for the geometry.
Surface finish	Plan cosmetic and functional finishing early, especially where coating thickness, polishing, or deburring affects fit.
Inspection	Use calipers, micrometers, gauges, CMM, or visual inspection based on tolerance risk and assembly function.

Related Material Choices

Compare Carbon Steel With Nearby CNC Materials

Aluminumexcellent machinability, low weight, good corrosion resistance Alloybroad grade selection and strong mechanical performance Titaniumhigh strength-to-weight ratio and excellent corrosion resistance Nickelstrong performance in high-temperature and corrosive environments Stainless Steeldurability, corrosion resistance, and clean appearance Tool Steelhardness, wear resistance, and dimensional stability Alloy Steelstrength, toughness, and heat-treatment response Brassexcellent machinability and good corrosion resistance Copperhigh electrical and thermal conductivity Bronzewear resistance, low friction, and corrosion resistance

FAQ

Is Carbon Steel suitable for CNC machining?

Yes, Carbon Steel can be CNC machined when the grade, geometry, tooling, workholding, and tolerance requirements are planned correctly.

What should I send for a Carbon Steel machining quote?

Send CAD files, 2D drawings, quantity, material grade, finish requirements, tolerance notes, and any inspection or packaging needs.

Can Carbon Steel parts be finished after machining?

Often yes. The right finish depends on the material family and part function. Confirm finish thickness and cosmetic expectations before machining.

How do I reduce cost on Carbon Steel CNC parts?

Use practical tolerances, avoid unnecessary deep pockets or tiny holes, simplify setups, and reserve tight control for functional features.
