CNC Polypropylene Machining Services

Precision Machining for Polypropylene Components
Custom Solutions for Durable Polypropylene Parts

What is PP CNC Machining?

Polypropylene (PP) is a lightweight, chemical-resistant thermoplastic used in fluid handling, labware, housings, and fixtures. It machines cleanly but can be flexible and prone to burring if the tool isn’t sharp.

Tooling: Razor-sharp O-flute / polished carbide; high rake to shear chips.
Heat control: Air blast or light mist—avoid melting/chip-weld.
Feeds/Speeds: Higher feed with shallow step-over; steady chip load to prevent fuzz.
Workholding: Vacuum/soft jaws; support thin walls and large panels.

Polypropylene CNC machining overview with O-flute tooling and air blast

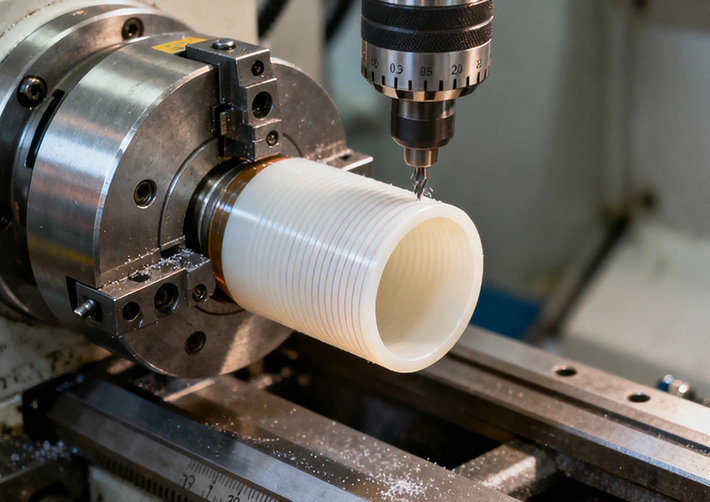

PP machining: burr control, finish quality, and chemical resistance

Key Considerations

PP is tough but flexible—use short stick-out and firm clamping. Climb milling gives cleaner edges. Deburr lightly (blade/tumble) to avoid whitening.

For fluid/contact parts, verify media compatibility and consider post-machining stress relief on thick plates.

Precision PP CNC Machining

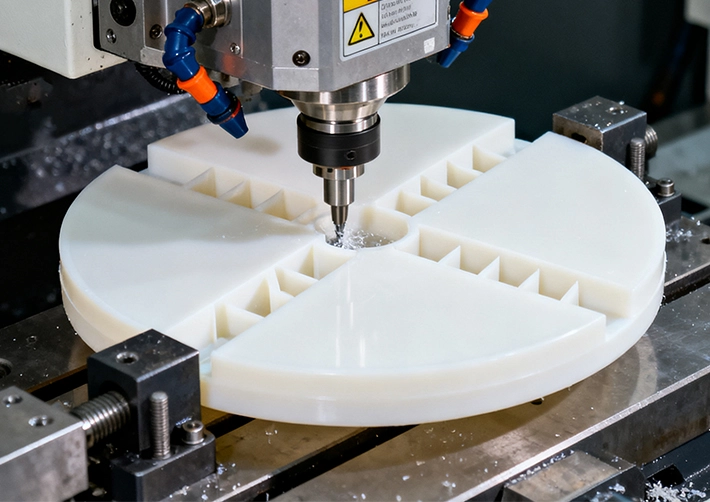

3, 4, 5-Axis CNC Milling

Fast pocketing and contouring for panels, trays, and manifolds. Sharp cutters and air blast deliver clean, uniform textures ready for assembly.

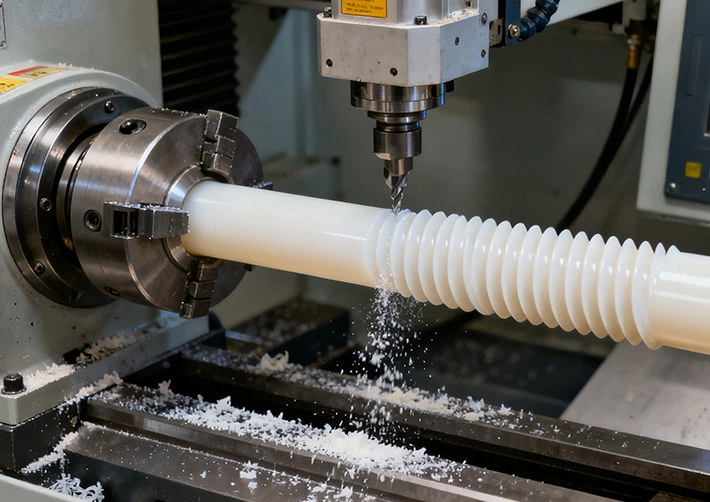

CNC Turning & Mill-Turn

Smooth OD/ID finishes for fittings and couplings. Positive-rake inserts and generous chip-breaker geometry reduce fuzz and hold consistent diameters.

PP CNC Machining Capabilities

Standards	Detail
Max Part Size (X/Y/Z)	2300 X 1500 X 600mm
Minimum Feature Size	⊘1mm
Wall Thickness	0.25mm
Tolerance	+/-0.01
Surface Finish (as milled)	Ra0.5–Ra3.2
Standard Lead Time	3 working-days for rapid prototyping
Pricing Level	To be confirmed after design review
Type of Machine	Gantry CNC / 3-4-5-Axis CNC / Mill-Turn Compound CNC / Swiss-Type CNC / Turning Machine...etc...
Common Grades	PP-H (Homopolymer), PP-C / Impact Copolymer, Glass-Filled PP, ESD/Antistatic PP

Polypropylene Grades

Choose the right balance of stiffness, impact, and chemical resistance.

PP-H (Homopolymer) PP-C / Impact Copolymer Glass-Filled PP ESD/Antistatic PP

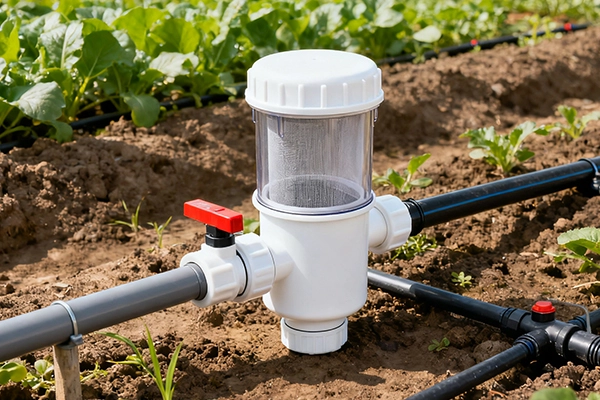

PP-H (Homopolymer)

Higher stiffness and temperature capability
Excellent chemical resistance
Good for tanks, manifolds, trays
Clean edges with sharp tools

Run higher feed with steady chip load; light finish pass for cosmetic faces.

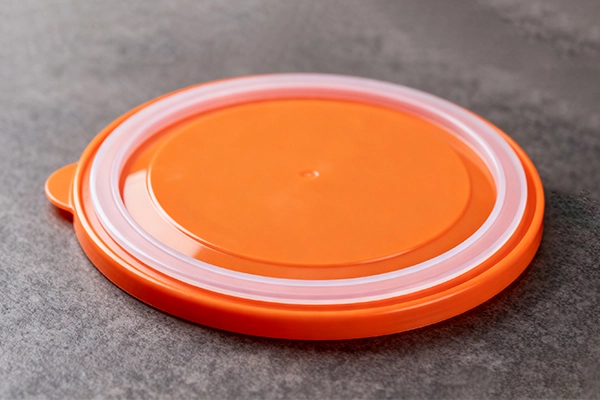

Impact copolymer PP enclosure with uniform finish (3:2)

PP-C / Impact Copolymer

Better impact resistance (low temp)
Slightly lower stiffness than PP-H
Great for housings and guards
Good dimensional stability

Use sharp O-flute and air blast; plan a skim pass to minimize fuzz.

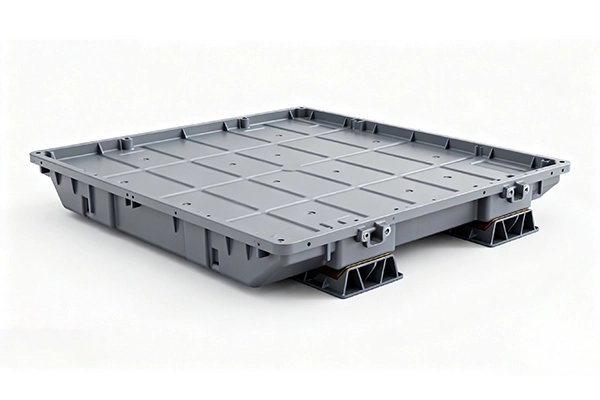

Glass-filled polypropylene structural bracket (3:2)

Glass-Filled PP

Higher stiffness & heat deflection
Abrasive—use coated carbide
Good for structural brackets, covers
Reduced creep under load

Lower SFM and maintain air/mist to control heat; expect increased tool wear.

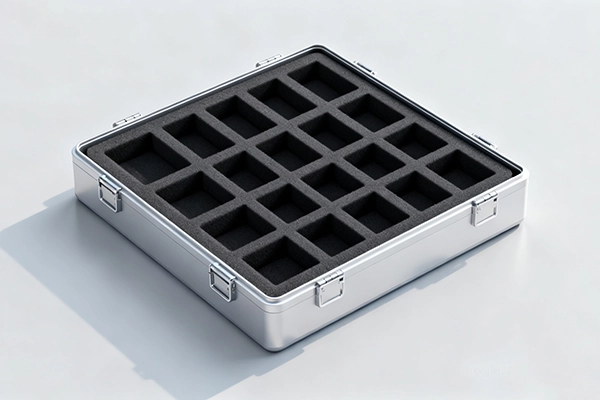

ESD polypropylene tray for electronics handling (3:2)

ESD / Antistatic PP

Static-safe handling and tooling
Fillers may change chip behavior
Trays, nests, fixtures
Surface resistivity per spec

Confirm resistivity targets; tune feeds to keep edges sharp and reduce fuzz.

Display of Our PP CNC Machining Parts

PP CNC machined mounting bracket with ribbed reinforcement and tapped holes

PP CNC machined bushing with reamed bore for low-friction rotation

PP CNC machined enclosure cover with lightweight, chemical-resistant design

PP CNC machined spacer washer with chamfered edges and smooth finish

Material Machining Guide

PP CNC Machining: Selection, Process, and Quality Notes

PP is commonly considered for chemical-resistant tanks, fittings, lab parts, and lightweight plastic components. It is selected because of chemical resistance and low density. For CNC machining, the final result depends on material grade, toolpath strategy, tolerance allocation, surface finish, and inspection planning.

Good Fit

Use PP when the application benefits from chemical resistance and low density and the design can be machined with stable workholding.

Watch Points

Confirm wall thickness, hole depth, thread callouts, burr control, cosmetic surfaces, and finish buildup before production.

Quality Planning

Define critical dimensions, inspection method, tolerance class, and documentation requirements before the first article.

Topic	Practical Guidance for PP
Design review	Send 3D CAD, 2D drawings, material grade, finish notes, quantity, and critical-to-function dimensions.
Machining process	MTSPi can review whether milling, turning, drilling, tapping, boring, or a combined route is best for the geometry.
Surface finish	Plan cosmetic and functional finishing early, especially where coating thickness, polishing, or deburring affects fit.
Inspection	Use calipers, micrometers, gauges, CMM, or visual inspection based on tolerance risk and assembly function.

Related Material Choices

Compare PP With Nearby CNC Materials

ABSlow cost, impact resistance, and easy machining Acrylicoptical clarity and polished appearance Delrindimensional stability, low friction, and strong machinability Nylonwear resistance, toughness, and fatigue performance HDPEtoughness, low friction, and chemical resistance PEimpact resistance and low moisture absorption PCimpact strength and transparency PEIheat resistance and dimensional stability ULTEMtemperature resistance and strength PEEKhigh temperature, chemical, and wear resistance POMexcellent machinability and dimensional stability TECAFORMAHstable acetal performance and clean machining

FAQ

Is PP suitable for CNC machining?

Yes, PP can be CNC machined when the grade, geometry, tooling, workholding, and tolerance requirements are planned correctly.

What should I send for a PP machining quote?

Send CAD files, 2D drawings, quantity, material grade, finish requirements, tolerance notes, and any inspection or packaging needs.

Can PP parts be finished after machining?

Often yes. The right finish depends on the material family and part function. Confirm finish thickness and cosmetic expectations before machining.

How do I reduce cost on PP CNC parts?

Use practical tolerances, avoid unnecessary deep pockets or tiny holes, simplify setups, and reserve tight control for functional features.
