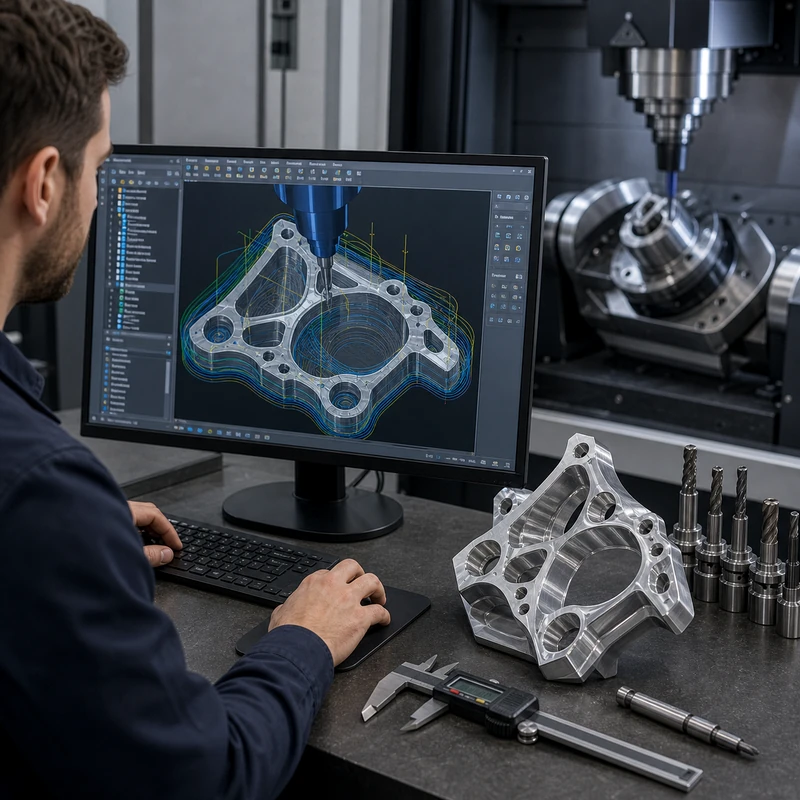

5-axis CNC programming is the process of creating safe, accurate toolpaths for a CNC machine that can move in three linear axes and two rotary axes. It is used when a part needs angled features, complex surfaces, fewer setups, or tool access that is difficult on a standard 3-axis machine.

Good programming is critical because 5-axis machining involves more than moving the cutter around a model. The programmer must control tool orientation, avoid collisions, choose practical cutting strategies, verify machine motion, and output code that matches the exact machine and control. This guide explains the core ideas for buyers, engineers, and manufacturing teams working with MTSPi CNC / MEITESI.

Quick Answer

5-axis CNC programming uses CAM software and machining knowledge to define how a 5-axis CNC machine cuts a part. It includes toolpath creation, tool axis control, collision checking, simulation, post-processing, and setup verification. The goal is to machine complex features accurately while protecting the machine, tool, fixture, and workpiece.

What Is 5-Axis CNC Programming?

In a 5-axis CNC machine, the cutter or workpiece can move along X, Y, and Z while also rotating around two axes. Programming tells the machine where the tool tip should go and how the tool should tilt during machining. This allows the cutter to approach the part from different angles instead of being limited to straight-down cutting.

The program is usually created in CAM software from a 3D CAD model and 2D drawing. The CAM file defines cutting tools, toolpaths, speeds, feeds, stepovers, tool orientation, retract moves, clearance, and machining order. The final code is generated through a post-processor for a specific machine.

Why Is 5-Axis Programming More Difficult Than 3-Axis Programming?

3-axis programming mainly controls the cutter position in three linear directions. 5-axis programming must also control tool angle, rotary axis movement, machine limits, holder clearance, fixture clearance, and the relationship between the tool and part throughout the cut. A small programming error can cause a collision or poor surface finish.

The programmer must think about machine kinematics, not only part geometry. Two different 5-axis machines may need different code for the same part because their rotary axes, table layout, control system, travel limits, and post-processors can differ.

3+2 Programming vs Simultaneous 5-Axis Programming

There are two common programming strategies. In 3+2 programming, the machine rotates to a fixed angle, locks that position, and then cuts with three linear axes. This is useful for angled faces, holes, and multi-side features that can be reached from stable indexed positions.

In simultaneous 5-axis programming, the linear and rotary axes move together while cutting. This is useful for flowing surfaces, undercuts, turbine-style geometry, and features where the tool angle must change continuously. Simultaneous programming is more complex, but it can create surfaces and access that 3+2 cannot handle efficiently.

For a deeper comparison, see 3+2 axis vs simultaneous 5-axis machining.

Main Steps in 5-Axis CNC Programming

Tool Axis Control Matters a Lot

Tool axis control defines how the cutter tilts relative to the part surface. A good tool angle can reduce tool stick-out, improve surface finish, avoid holder interference, and help the cutter reach difficult geometry. A poor tool angle can gouge the part, create chatter, or collide with the fixture.

In simultaneous 5-axis machining, tool orientation may change continuously. The CAM strategy must keep that motion smooth enough for the machine to run without sudden rotary moves, poor finish, or feedrate problems.

Collision Avoidance in 5-Axis Programming

Collision avoidance is one of the most important parts of 5-axis programming. The programmer must check the cutter, holder, spindle, fixture, clamps, rotary table, stock, and finished part. Simulation should include the real tool assembly and workholding whenever possible.

Collision checking is especially important for deep cavities, tall walls, short clearances, tilted tools, and expensive materials. A verified program protects the machine and reduces the chance of scrapped parts.

Why the Post-Processor Is So Important

A post-processor converts CAM toolpaths into CNC code for a specific machine. In 5-axis work, the post-processor must correctly handle rotary axis direction, limits, tool center point control, retract moves, feedrates, work offsets, and machine-specific commands.

A toolpath that looks correct in CAM can still fail if the post-processor is wrong. This is why 5-axis programming should be connected to the actual machine model and control system, not treated as generic code.

Common 5-Axis CNC Programming Mistakes

• Choosing simultaneous 5-axis when 3+2 indexed machining would be simpler and more stable.
• Using tool angles that create holder or spindle interference.
• Skipping accurate fixture and clamp modeling during simulation.
• Using long tools when a better tilt strategy could allow shorter tools.
• Ignoring machine rotary limits or singularity problems.
• Applying tight tolerances without planning inspection and setup control.
• Posting code without verifying it on the target machine configuration.

What CAM Software Is Used for 5-Axis Programming?

Many professional CAM systems can support 5-axis programming. The exact software matters less than whether the team can use it correctly for the machine, material, and part geometry. Important capabilities include multi-axis toolpaths, collision detection, stock simulation, tool libraries, machine simulation, post-processing, and NC verification.

For more about CAM planning, see 5-axis machining software.

When Do You Need Professional 5-Axis Programming?

Professional 5-axis programming is needed when the part has complex surfaces, angled features, deep access, expensive material, strict datum relationships, or high inspection risk. It is also important when a part must move from prototype to repeatable production.

If a part is simple, 3-axis or indexed machining may be enough. If the geometry is complex, the programming strategy should be reviewed before quoting and before material is cut.

How MTSPi CNC Handles 5-Axis CNC Programming

MTSPi CNC reviews the model, drawing, material, tolerance, finish, quantity, and inspection needs before choosing a programming strategy. The team considers whether the job should use 3-axis, 4-axis, 3+2 indexed machining, simultaneous 5-axis machining, or a mixed route.

The process includes CAM toolpath planning, tool and holder selection, workholding review, simulation, collision checking, post-processing, first-piece verification, and inspection planning. This helps turn complex geometry into a controlled machining process.

For design-side preparation, see how to design parts for 5-axis CNC machining.

RFQ Checklist for 5-Axis Programming Review

Conclusion

5-axis CNC programming turns complex geometry into safe, controlled machine motion. It includes toolpath creation, tool axis control, collision avoidance, simulation, post-processing, and machine-specific verification. The best programming strategy may be 3+2, simultaneous 5-axis, or a combination of both.

For complex CNC parts, MTSPi CNC / MEITESI can review your model and drawing, choose a practical machining strategy, program the part, machine it, and support inspection for prototype or low-volume production.

FAQ

What is 5-axis CNC programming used for?

It is used to create toolpaths and machine code for parts that need multi-angle tool access, complex surfaces, fewer setups, or advanced datum control.

Is 5-axis programming always simultaneous?

No. Many jobs use 3+2 indexed programming, simultaneous 5-axis programming, or a mixed strategy depending on the part geometry.

Why is collision checking important?

Because the tool, holder, spindle, fixture, and part can move in complex relationships. Collision checking helps prevent crashes and scrap.

What is a post-processor in 5-axis CNC?

A post-processor converts CAM toolpaths into CNC code for a specific machine and control. It is critical for correct rotary motion and safe machine behavior.

What files should I send for 5-axis programming support?

Send a STEP file, 2D drawing, material grade, quantity, finish requirement, critical tolerances, and any inspection or assembly notes.

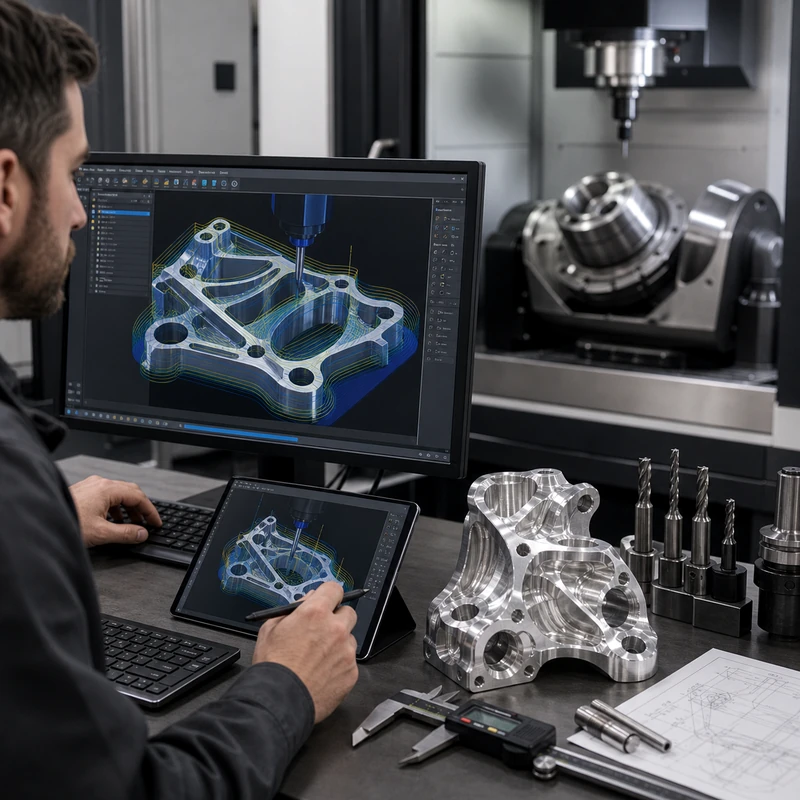

5-axis machining software is one of the reasons complex CNC parts can be produced reliably. The machine provides the motion, but CAM software helps turn the 3D model into safe toolpaths, controlled tool angles, collision-checked movements, and CNC code that the machine can run.

For parts with angled faces, deep features, sculpted surfaces, tight datum relationships, or expensive material, software planning can affect cost and quality as much as the machine itself. This guide explains what 5-axis machining software does and how MTSPi CNC / MEITESI uses it to support complex part production.

Quick Answer

5-axis machining software is CAM software used to generate, simulate, and verify toolpaths for five-axis CNC machines. It controls tool orientation, cutting strategy, collision avoidance, machine movement, and NC program output. Good software helps reduce setups, lower collision risk, improve surface finish, and machine complex geometry more efficiently.

What Is 5-Axis Machining Software?

5-axis machining software usually refers to CAM software that supports three linear axes plus two rotary axes. It imports or references a CAD model, lets the programmer choose cutting tools and machining strategies, calculates the toolpath, checks machine motion, and outputs CNC code through a post-processor.

The software does not replace machining knowledge. A programmer still needs to understand tool access, material behavior, workholding, cutter length, machine limits, tolerance, and inspection needs. The software is a planning and verification tool that helps apply that knowledge consistently.

Key Features of 5-Axis Machining Software

Different CAM systems have different interfaces and capabilities, but most strong 5-axis workflows include toolpath generation, collision detection, simulation, machine kinematics, post-processing, and tool library control.

Automatic Toolpath Generation

Toolpath generation converts a design model into cutter movements. For 5-axis work, the software must calculate not only where the tool tip moves, but also how the tool tilts as it approaches the surface. This can help maintain better cutting angles, shorter tool reach, and smoother surface finish.

Common strategies include swarf cutting, contour machining, multi-axis finishing, flowline machining, drilling at compound angles, and 3+2 indexed operations. The right strategy depends on part geometry, material, tolerance, and surface requirements.

Collision Detection

Collision detection checks whether the tool, holder, spindle, fixture, or machine components may crash into the part or workholding. This is especially important in 5-axis machining because rotary motion changes the relationship between the cutter, part, and fixture throughout the operation.

A collision that looks small in software can be expensive in real production. Good verification reduces the chance of broken tools, damaged parts, spindle crashes, and lost machine time.

Machining Simulation

Simulation lets the programmer review material removal, tool motion, stock condition, clearance, and remaining material before running the job. It helps identify gouging, missed surfaces, excessive tool engagement, unsafe rapid moves, and areas that may need rest machining.

For complex parts, simulation is also useful for communicating the process to operators and quality teams. A clearer setup plan makes first-article machining more controlled.

CNC Program Output and Post-Processing

After toolpaths are verified, CAM software outputs CNC code through a post-processor. The post-processor converts generic CAM movement into code that matches a specific machine control, rotary axis configuration, tool changer, work offset system, and safety format.

This step matters because two five-axis machines may not interpret rotary motion the same way. A reliable post-processor helps prevent axis reversal, unsafe retracts, wrong rotary limits, or unexpected machine movement.

How 5-Axis Software Improves Complex Part Production

The value of 5-axis machining software is not only speed. It improves process planning, reduces risk, and helps decide whether a part should use 3+2 indexed machining, simultaneous 5-axis machining, or a mixed strategy.

Better Toolpath Control

With complex geometry, cutter direction and tool contact matter. CAM software helps control lead angle, tilt angle, step-over, scallop height, cutting direction, and tool engagement. This can improve surface finish and reduce hand polishing.

Better toolpath control also helps use shorter tools where possible. Shorter tools are more rigid, which improves accuracy and reduces chatter on deep or angled features.

Lower Collision Risk

Five-axis jobs often include tilted tools, rotary tables, clamps, long holders, and complex stock shapes. Software simulation can check these relationships before the machine cuts material. This is especially important for prototypes, expensive alloys, and parts with limited clearance.

Easier Machining of Complex Surfaces

Sculpted surfaces, compound angles, turbine-style forms, and complex housings are difficult to program manually. CAM software helps create smooth, consistent paths that follow the surface and keep the cutter oriented correctly.

For some surfaces, simultaneous 5-axis movement is the best option. For others, 3+2 indexed positions may be simpler and more stable. Good software lets the programmer compare both routes.

Fewer Setups and Better Datum Control

5-axis software can help plan operations that machine several sides or angles in fewer setups. Fewer setups can reduce datum transfer error and improve the relationship between critical features.

This does not mean every part should be fully simultaneous 5-axis. Often the best route is a combination of 3+2 positioning for stable features and continuous 5-axis only where tool orientation must change during cutting. See also 3+2 axis vs simultaneous 5-axis machining.

Common Applications

• Aerospace-style brackets and lightweight components
• Complex aluminum housings with angled features
• Medical and optical precision components
• Impeller-like or curved surface parts
• Molds, prototypes, fixtures, and low-volume complex parts
• Parts that need strong datum control across multiple sides

For simpler geometry, standard CNC milling service may still be the more economical route. The software helps evaluate this instead of assuming every complex-looking part needs the most advanced strategy.

What Software Cannot Fix

CAM software is powerful, but it cannot fix every design issue. Extremely deep narrow pockets, sharp internal corners, unstable thin walls, unrealistic tolerances, and poor fixture access can still cause manufacturing problems. Design for manufacturability remains important.

Before quoting a complex part, MTSPi CNC reviews tool access, internal radii, wall thickness, tolerance stack, finish requirements, and inspection access. For design guidance, see how to design parts for 5-axis CNC machining.

How MTSPi CNC Uses 5-Axis CAM Software

MTSPi CNC uses CAM planning to review the model, choose machining strategies, verify tool access, simulate critical movements, and create CNC programs for the selected machine. The goal is not only to create code, but to reduce production risk before material is cut.

For complex work, the team may compare 3-axis, 4-axis, 3+2, and simultaneous 5-axis options. The selected route depends on geometry, quantity, material, tolerance, surface finish, and inspection requirements. A practical process is better than using advanced motion where it is not needed.

RFQ Checklist for Software-Driven 5-Axis Machining

Conclusion

5-axis machining software improves complex part production by helping programmers generate toolpaths, control tool orientation, simulate machining, detect collisions, and output machine-specific CNC code. It reduces risk, improves process planning, and helps choose between indexed and simultaneous five-axis strategies.

If you need complex CNC parts, send MTSPi CNC / MEITESI your model, drawing, material, quantity, finish, and inspection requirements. A CAM-based review can help confirm the safest and most cost-effective machining route.

FAQ

What is 5-axis machining software used for?

It is used to create, simulate, verify, and post-process toolpaths for 5-axis CNC machines. It helps control tool angles, avoid collisions, and machine complex geometry.

Does software replace an experienced CNC programmer?

No. Software supports the programmer, but experience is still needed for tooling, fixtures, material behavior, machine limits, tolerances, and inspection planning.

Can CAM software prevent every collision?

It can greatly reduce collision risk, but the setup must be modeled correctly and the program still needs careful review before machining.

Is 5-axis software only for simultaneous machining?

No. It can support both 3+2 indexed machining and simultaneous 5-axis machining, depending on the part and strategy.

What files should I send for a 5-axis CAM review?

Send a STEP file, 2D drawing, material grade, quantity, finish requirement, critical tolerances, and inspection notes.

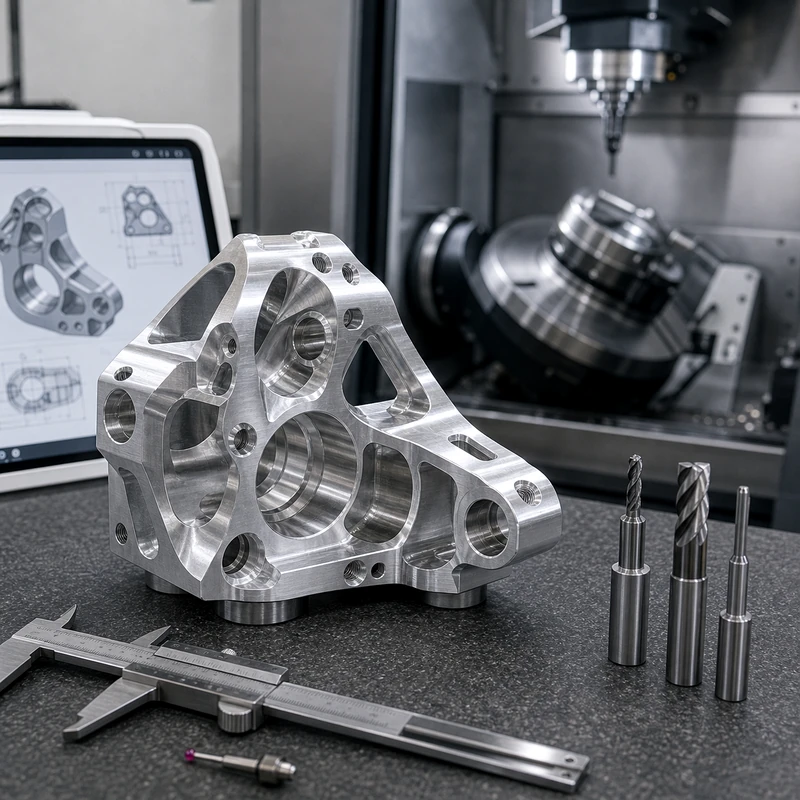

Designing parts for 5-axis CNC machining is different from simply drawing a complex shape and asking a machine shop to make it. A 5-axis machine can reach more angles, reduce setups, and improve accuracy on difficult geometry, but the design still needs realistic tool access, sensible radii, stable walls, practical tolerances, and a clear inspection plan.

This guide explains practical DFM tips for 5-axis CNC parts so engineers and buyers can reduce cost, avoid avoidable rework, and send a stronger RFQ package to MTSPi CNC / MEITESI.

Quick Answer

To design parts for 5-axis CNC machining, keep tool access clear, avoid unnecessarily deep and narrow cavities, use internal radii that match real cutters, keep walls thick enough to stay stable, apply tight tolerances only where function requires them, and design critical features so they can be machined and inspected from a controlled setup. A 5-axis machine gives more freedom, but good manufacturability still depends on geometry, material, fixturing, tooling, and measurement.

Why Design Matters in 5-Axis CNC Machining

5-axis machining can tilt the tool or workpiece so the cutter reaches surfaces that would be difficult on a 3-axis machine. That helps with angled holes, compound surfaces, deep features, and parts where multiple sides need accurate relationships. However, the process is not magic. If a feature is too deep, too thin, too sharp, or impossible to inspect, it can still become expensive or risky.

Good design lets the machine use shorter tools, better cutting angles, fewer setups, and more stable workholding. Poor design forces long tool reach, vibration, slow cutting, extra deburring, special fixtures, and repeated inspection. The difference often appears as higher cost, longer lead time, or inconsistent parts.

What Parts Are Suitable for 5-Axis CNC Machining?

5-axis CNC machining is usually useful when a part has complex angles, multiple machined sides, sculpted surfaces, deep access requirements, or strict relationships between features. It can also help when reducing setup count is more important than using the lowest machine hourly rate.

• Aerospace-style brackets and lightweight structures
• Complex aluminum housings with angled faces
• Medical or optical components with precise surfaces
• Impeller-like or curved surface parts
• Fixtures, prototypes, and low-volume components with many side features
• Parts where datum transfer between setups creates risk

For simple plates, flat brackets, or basic pockets, CNC milling service on a 3-axis machine may be more economical. The best process is the one that matches the part geometry and tolerance needs.

Key Design Tips for 5-Axis CNC Parts

The following design rules help make 5-axis parts easier to machine, inspect, and quote. They are not rigid limits for every project, but they are useful starting points before DFM review.

1. Keep Tool Access in Mind

Even with 5-axis movement, the cutter, holder, spindle, and fixture need physical clearance. Designers should avoid hidden features that require the tool to reach behind walls, under overhangs, or into very tight spaces without clearance. If the tool can reach the surface at a stable angle, machining is usually faster and safer.

A good design review checks not only whether the cutter tip can touch the feature, but whether the whole tool assembly can move safely around the part. This is especially important near tall walls, bosses, ribs, clamps, and angled faces.

2. Avoid Deep and Narrow Cavities When Possible

Deep narrow pockets often require long tools. Long tools are less rigid, so they can chatter, deflect, leave poor surface finish, and slow the process. 5-axis machining can reduce tool length by tilting the tool, but it cannot remove all problems caused by extreme depth-to-width ratios.

If a cavity must be deep, consider increasing opening width, adding relief, allowing larger corner radii, or separating the feature into a more practical assembly. When function allows, a more open geometry can reduce cycle time and improve consistency.

3. Use Practical Internal Corner Radii

CNC milling tools are round, so sharp internal corners are not realistic unless a secondary process such as EDM is used. Smaller internal radii require smaller tools, which can cut more slowly and wear faster. A larger radius allows a stronger cutter, better chip evacuation, and lower cost.

A useful rule is to make internal radii slightly larger than the cutter radius needed for the feature. If the pocket is deep, use a larger radius where possible. For many machined parts, changing a sharp internal corner into a practical radius has no effect on function but can significantly improve manufacturability.

4. Avoid Unnecessary Tight Tolerances

5-axis CNC machines can hold accurate features, but tight tolerances still increase cost. They may require slower cutting, stable temperature, better fixtures, extra inspection, and more setup care. Apply tight tolerances only to functional surfaces such as bearing seats, sealing faces, mating holes, datum features, or alignment interfaces.

For noncritical geometry, use standard machining tolerances. This keeps the quote realistic and helps the supplier focus inspection effort on the dimensions that truly matter.

5. Keep Wall Thickness Reasonable

Thin walls can move during machining because cutting forces and released material stress change the part shape. The problem can become worse after roughing, heat, finishing, or unclamping. 5-axis access may help the tool approach the wall more favorably, but it does not make a weak wall rigid.

If a wall must be thin, discuss material, support strategy, roughing sequence, finish passes, and inspection method with the supplier. In some cases, ribs, temporary stock, or design changes can help the part stay stable.

6. Design Features for One-Setup Machining When It Matters

One advantage of 5-axis machining is the ability to complete more features in a single setup. This helps when several surfaces must stay accurate relative to the same datum. Designers can support this by placing critical features where they can be reached without unnecessary reclamping.

However, one setup is not always the only goal. Sometimes two simple, stable setups are better than one complicated setup with poor clamping. The right strategy depends on part shape, quantity, material, and inspection requirements.

7. Consider Deburring and Edge Breaks Early

Complex 5-axis parts often have intersecting surfaces, slots, holes, and edges that can create burrs. If the drawing does not define edge break expectations, the supplier may have to guess. Small edge-break notes, cosmetic surface notes, and no-burr requirements help avoid confusion.

For parts with hard-to-reach internal edges, designers should consider whether the burr can actually be removed and inspected. A tiny hidden burr can become a serious problem in fluid, medical, aerospace, or precision assembly applications.

Common Design Mistakes That Increase Cost

• Adding tight tolerances to every dimension instead of only functional features.
• Using sharp internal corners where a radius would work.
• Designing deep narrow pockets that force long tools.
• Creating thin walls without considering distortion after machining.
• Placing critical holes or surfaces where tool access is poor.
• Forgetting inspection access for important features.
• Choosing 5-axis machining for a simple part that could be made more economically on 3-axis equipment.

When Multi-Axis Machining Is Not Necessary

Not every complex-looking part requires 5-axis machining. If the geometry can be reached from the top and a few simple sides, 3-axis or indexed 4-axis machining may be enough. A part with simple pockets, flat faces, and standard holes may become more expensive if forced onto a 5-axis machine without need.

Buyers should ask suppliers to explain the process route, not only the machine type. A good answer should describe setups, fixtures, tool access, expected risk, inspection method, and why the chosen process is cost-effective.

How DFM Review Improves a 5-Axis CNC Part

A DFM review checks whether the design can be machined reliably before production begins. It may identify small changes such as increasing a radius, opening a pocket, relaxing a tolerance, moving a feature, adding a datum note, or changing a finish requirement. These changes can reduce cost without weakening the part.

For custom machined parts, MTSPi CNC reviews models and drawings for tool access, material behavior, workholding, setup sequence, finishing, and inspection. Early review is especially useful for prototypes that may later move into low-volume production.

RFQ Checklist for 5-Axis CNC Parts

If your design includes complex surfaces, angled features, or multiple critical datums, MTSPi CNC can compare 3-axis, 4-axis, and 5-axis CNC machining routes and recommend a practical process.

Conclusion

Good 5-axis CNC part design balances function with manufacturability. The machine can reach more angles and reduce setups, but the design still needs clear tool access, practical radii, stable walls, realistic tolerances, and inspectable features. Small DFM improvements before quoting can save time, reduce cost, and improve part quality.

For complex CNC parts, send MTSPi CNC / MEITESI your model, drawing, material, quantity, finish, and inspection requirements. A manufacturing review can help confirm whether 5-axis CNC machining is the right route or whether a simpler process can achieve the same result.

FAQ

What makes a part suitable for 5-axis CNC machining?

A part is suitable when it has complex angles, multiple machined sides, curved surfaces, deep access issues, or critical features that benefit from fewer setups.

Does 5-axis CNC remove the need for DFM?

No. 5-axis machining improves access, but the design still needs practical tool reach, stable geometry, realistic tolerances, and inspection access.

Are sharp internal corners possible in 5-axis machining?

Milled internal corners still follow the round cutter shape. Sharp internal corners may require EDM or a design change, so practical radii are usually better.

Why do thin walls cause problems in CNC machining?

Thin walls can bend, vibrate, or move after material is removed. This can affect dimensions, flatness, and surface finish.

Should every complex part use 5-axis CNC?

No. Some parts can be made more economically with 3-axis or 4-axis machining. The best route depends on geometry, tolerance, setup count, material, and quantity.

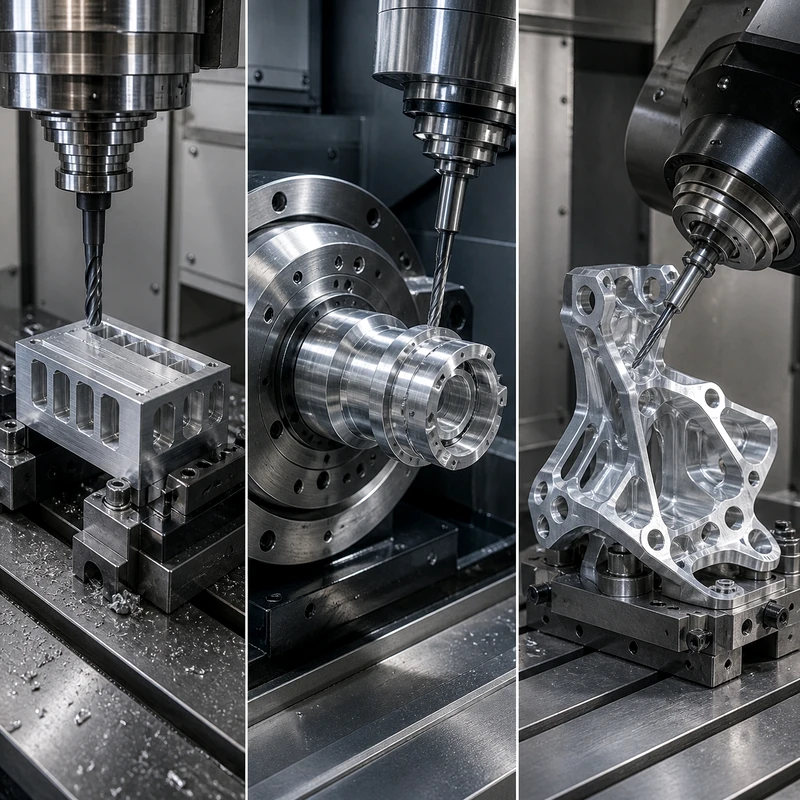

Choosing between 3-axis, 4-axis, and 5-axis CNC machining is not only a question about machine capability. It affects setup count, tool access, surface finish, dimensional accuracy, lead time, and cost. A simple bracket may not need a 5-axis machine, while a complex housing with angled features may become expensive or risky if it is forced through several 3-axis setups.

This guide explains how the three machining approaches differ, when each one makes sense, and how buyers can choose a practical route before sending an RFQ to MTSPi CNC / MEITESI.

Quick Answer

3-axis CNC machining moves the cutting tool along X, Y, and Z. It is efficient for flat faces, pockets, drilled holes, slots, and many simple milled parts. 4-axis machining adds a rotary axis, so the part can be indexed or rotated for features around a cylinder or multiple sides. 5-axis machining adds two rotary movements, allowing the tool to approach the workpiece from many angles and machine complex geometry with fewer setups.

In simple terms: use 3-axis for straightforward prismatic parts, 4-axis for parts that need rotation or features around several sides, and 5-axis for complex surfaces, difficult angles, tight setup control, or parts where reducing repositioning matters more than machine hourly rate.

What Is 3-Axis CNC Machining?

A 3-axis CNC machine cuts in three linear directions: left-right, front-back, and up-down. The workpiece usually stays fixed in a vise or fixture while the spindle moves along the programmed toolpath. This is the most common route for many milled components because it is widely available, predictable, and cost-effective.

Typical 3-axis parts include plates, brackets, blocks, pockets, counterbores, slot features, simple housings, mounting faces, and hole patterns. If a part can be machined from one or two sides without difficult undercuts or steep angled surfaces, 3-axis machining is often the first process to evaluate.

The main limitation is access. If the tool cannot reach a feature from the current setup direction, the part must be reclamped, refixtured, or moved to another operation. Every additional setup can add time and introduce small alignment errors. For simple parts this is manageable; for complex parts it can become the biggest source of cost and risk.

What Is 4-Axis CNC Machining?

4-axis CNC machining adds a rotary axis to the standard X, Y, and Z movements. Depending on the machine and fixture, the workpiece can rotate so the cutter reaches different sides without fully removing and reclamping the part. Some jobs use the fourth axis for indexing, while others use continuous rotation for curved or cylindrical features.

This is useful for shafts, tubes, manifolds, parts with features around a circumference, components with repeated side holes, and parts that need machining on several faces. A 4-axis setup can reduce handling and improve consistency because the same datum relationship can be maintained through more of the operation.

However, 4-axis is not automatically better for every job. Fixtures, programming, tool clearance, and part geometry still matter. If the part only needs simple top-face machining, a 4-axis route may add setup complexity without a useful benefit.

What Is 5-Axis CNC Machining?

5-axis CNC machining combines three linear axes with two rotary axes. This lets the cutting tool approach the part from many angles. The machine may move all axes at once for complex contouring, or it may use 3+2 positioning, where the part or tool is tilted into a fixed angle and then machined like a stable 3-axis operation.

5-axis machining is commonly used for aerospace-style parts, impellers, complex housings, medical components, deep cavities, angled holes, organic surfaces, and parts where several critical features must stay aligned. It can also help reduce tool length by tilting the tool closer to the cutting surface, which improves rigidity and surface finish.

The advantage is not only geometry. Fewer setups can mean fewer datum transfers, less accumulated error, and a cleaner inspection story. The tradeoff is higher machine rate, more advanced programming, and greater need for experienced process planning.

3-Axis vs 4-Axis vs 5-Axis CNC: Main Differences

When 3-Axis Machining Is the Best Choice

3-axis machining is usually the best starting point when the part has simple geometry and clear tool access. If the main features are on the top face, bottom face, or a few straightforward sides, a well-planned 3-axis process can be fast and economical.

For prototypes and low-volume components, 3-axis machining also provides flexibility. Programming is usually simpler, fixtures are often less complex, and inspection can be straightforward. Buyers should not pay for advanced axis capability unless the part geometry or quality requirement actually benefits from it.

MTSPi CNC often reviews 3-axis feasibility for parts such as aluminum brackets, mounting plates, small housings, covers, plastic blocks, and test fixtures. For this type of work, a clear drawing and realistic tolerances matter more than choosing the most advanced machine.

When 4-Axis Machining Makes Sense

4-axis machining becomes valuable when the part has features around multiple sides or around a rotating centerline. Instead of removing the part, rotating it by hand, and reclamping it, the machine can index the workpiece more accurately. This can improve hole alignment, side feature consistency, and repeatability.

Common examples include valve bodies, manifolds, cylindrical parts with cross holes, engraved or milled round parts, and components with repeated features around the outside. A fourth axis can also help reduce fixture changes in small-batch production.

The buyer should still ask whether the fourth axis is truly useful. If the part needs only one or two simple setups, 3-axis may remain cheaper. If several faces need accurate relationships, 4-axis can be the practical middle ground.

When 5-Axis Machining Is Worth It

5-axis machining is worth considering when tool access, feature alignment, or surface quality would suffer in repeated 3-axis setups. Complex components often need angled surfaces, compound curves, deep pockets, or features that must stay accurate relative to several datums. In these cases, 5-axis machining can make the process cleaner and more reliable.

A higher hourly rate does not always mean a higher total part cost. If 5-axis machining removes several setups, shortens tool length, reduces custom fixtures, and lowers inspection risk, it may be the better commercial choice. This is especially true when the part is expensive, the material is difficult, or the geometry is hard to recover after a setup mistake.

For 5-axis work, the RFQ should include a STEP file and a detailed 2D drawing. The drawing should mark datums, critical surfaces, tolerance requirements, surface finish expectations, and any inspection report needs.

Cost Comparison: Machine Rate vs Total Cost

Buyers often compare 3-axis, 4-axis, and 5-axis machining by machine hourly rate. That can be misleading. The lower machine rate may not win if the part requires several setups, custom fixtures, long tools, extra deburring, and repeated inspection checks.

A better comparison is total manufacturing cost. This includes programming, material preparation, fixture strategy, setup time, cutting time, tool wear, finishing, inspection, and risk. A simple part should not be over-processed, but a complex part should not be forced into a route that creates avoidable risk.

Accuracy and Surface Finish Differences

Accuracy depends on more than the number of axes. A stable 3-axis setup can produce excellent results on suitable geometry. Problems appear when the part needs repeated repositioning and each setup transfers the datum relationship. More setups mean more chances for small errors to accumulate.

5-axis machining can improve accuracy when it keeps more features in one controlled setup. It can also improve surface finish by allowing better tool angles and shorter tool stick-out. For deep cavities or curved surfaces, this can reduce vibration and visible tool marks.

4-axis machining can improve consistency for features around a part because the same rotary reference is used. This is helpful for side holes, radial patterns, and cylindrical features that must stay aligned.

Design Tips Before Choosing an Axis Strategy

• Mark critical datums and functional dimensions on the 2D drawing.
• Avoid unnecessary tight tolerances on noncritical surfaces.
• Separate cosmetic finish requirements from hidden functional surfaces.
• Allow realistic internal corner radii where milling cutters must enter.
• Tell the supplier which features mate with other parts.
• Ask whether the quote assumes 3-axis, indexed 4-axis, 3+2 machining, or full simultaneous 5-axis machining.

How to Choose the Right Option

Start with the part geometry, not the machine name. If the part is mostly flat and accessible, 3-axis is likely enough. If it has several accurately related side features or round geometry, 4-axis may reduce handling. If it has complex angles, deep access problems, sculpted surfaces, or strict datum relationships, 5-axis deserves serious evaluation.

Quantity also matters. For one prototype, a slightly longer setup may be acceptable. For repeated production, the more stable process may save money over time. Material matters too: titanium, stainless steel, and high-value aluminum components can justify a more controlled route because scrap risk is more expensive.

RFQ Checklist for MTSPi CNC

MTSPi CNC can review parts for CNC milling service, CNC turning service, prototype machining, low-volume production, and multi-axis CNC machining. The best route is the one that makes the part reliable at the right total cost.

Conclusion

The difference between 3-axis, 4-axis, and 5-axis CNC machining is more than the number of machine movements. It is a practical choice about tool access, setup count, tolerance control, surface finish, cost, and risk. 3-axis machining is efficient for simple parts, 4-axis machining helps with rotation and multi-side features, and 5-axis machining is strongest for complex geometry and fewer setups.

If you are unsure which process fits your part, send MTSPi CNC the model, drawing, material, quantity, and finish requirement. A process review can often identify whether a simpler route is enough or whether multi-axis machining will save time and risk.

FAQ

Is 5-axis CNC always better than 3-axis?

No. 5-axis machining is more capable, but it is not automatically better for simple parts. 3-axis machining is often faster and cheaper when the geometry is straightforward.

What is the biggest advantage of 4-axis CNC machining?

The main advantage is controlled rotation. It can reduce reclamping and improve consistency for multi-side features, radial holes, and cylindrical parts.

Why can 5-axis machining reduce cost on complex parts?

It can reduce setup count, shorten tool reach, improve access, and lower alignment risk. On complex or high-value parts, those savings can outweigh the higher machine rate.

Do I need a 2D drawing if I already have a 3D model?

Yes. The model gives shape, while the drawing defines tolerances, datums, threads, finish, inspection requirements, and revision control.

How should I decide between 3-axis, 4-axis, and 5-axis machining?

Look at tool access, number of sides, datum relationships, surface requirements, material value, and quantity. A supplier can then compare process routes instead of quoting only by machine type.
