Aluminum Symbol: Al Meaning, Common Confusions, and Alloy Codes

The chemical symbol for aluminum is Al: an uppercase A followed by a lowercase l. Its atomic number is 13. Aluminum and aluminium are names for the same element and use the same symbol. In chemistry, Al identifies the element; in manufacturing, an alloy and temper such as 6061-T6 provide additional information needed to specify a material.

Aluminum Symbol and Element Facts

Item Meaning
Chemical symbol Al
How to read it Capital A, lowercase letter l; not capital I
Element names Aluminum / aluminium
Atomic number 13, the number of protons
Relative atomic mass Approximately 26.98
Periodic table position Group 13, Period 3
Common oxidation state +3

The atomic number and atomic mass answer different questions. The number 13 identifies the element through its proton count. The value around 26.98 describes relative atomic mass; it is not an alloy number, a strength rating, or a density. For broader material properties, see how aluminum behaves as a metal.

Al, AL, AI, Al3+, and Al2O3: What Is the Difference?

Small typographic differences can change the meaning of a label. The second character in Al is the lowercase letter found at the start of the word light. A font with clear letter shapes helps distinguish it from an uppercase I.

Notation What it represents How to interpret it
Al The chemical element aluminum Correct capitalization for the element symbol
AL May be an abbreviation or label in a document Not the standard chemical symbol; read the document legend
AI Capital A followed by capital I Not the symbol for aluminum
Al3+ An aluminum ion carrying a +3 charge The superscript describes charge, not three aluminum atoms
Al2O3 Aluminum oxide A compound containing aluminum and oxygen in a 2:3 atomic ratio
6061-T6 An aluminum alloy and temper designation A material condition, not a chemical formula

In a formula, a subscript indicates the relative count of atoms. A superscript charge indicates an ion’s electrical charge. Neither notation identifies a machining grade. Aluminum oxide is also chemically different from metallic aluminum, so its properties should not be substituted for those of an aluminum workpiece.

Does Aluminium Have a Different Symbol?

No. The spelling aluminum is common in American English, while aluminium is common in British English and many other regions. Both use Al. An international drawing should nevertheless identify the governing material standard, because common element names do not establish equivalence between regional alloy specifications.

How to Read an Aluminum Material Callout

Consider the illustrative note Aluminum alloy 6061-T6. It contains three levels of information:

  1. Aluminum alloy identifies the material family.
  2. 6061 identifies an alloy designation. In the wrought aluminum system, the 6xxx family is associated with magnesium and silicon as major alloying additions.
  3. T6 identifies a temper: solution heat-treated and artificially aged.

The four digits are not a percentage formula. Do not read 6061 as a statement of aluminum purity. Similarly, T6 does not mean six percent of another element, a six-hour treatment, or a universal strength value. Mechanical properties must be checked for the specified product form, thickness, and applicable specification.

A different temper can change the engineering behavior of the same alloy. T651 adds a defined stress-relief condition to the heat-treatment description. Substituting one condition for another should be reviewed against the drawing rather than accepted because both names begin with 6061.

Why “Material: Al” Is Not Enough for a CNC Quote

Imagine two suppliers receive a bracket drawing with only the note “Al.” One quotes a readily available general-purpose alloy, while the other assumes a higher-strength grade. The quotes now describe different materials. Even if the dimensions match, the strength, cost, finishing response, and documentation may differ.

A clearer RFQ identifies the alloy, temper, stock form where relevant, applicable material specification, and certificate requirements. Keep finish and dimensional requirements explicit too. A compact review checklist is:

  • Which alloy and temper are required?
  • Which product specification applies to the purchased stock?
  • Are substitutions permitted, and who approves them?
  • Which dimensions must be checked after finishing?
  • Is material certification or lot traceability required?

Use the engineering materials overview to explore material choices, and supply those decisions with the model and drawing when requesting machining of a precision bracket or housing. A chemical symbol alone cannot define acceptance criteria.

Keep Pure-Aluminum Data Separate From Alloy Data

Reference tables often give pure aluminum a density of approximately 2.70 g/cm3 near room temperature and a melting point near 660°C. These are useful element facts. An engineering alloy can have a different density and a melting interval rather than the same single melting point.

Likewise, there is no single strength or hardness that applies to every part labeled aluminum. Alloy composition, temper, processing, temperature, and product form matter. For a weight estimate, use an appropriate density for the specified grade. For a load calculation, use the applicable design data and material condition rather than an element-summary table.

A Practical Label-Reading Example

Suppose a supplier labels a billet “6061-T6” while the inspection sheet lists Al among the detected elements. The billet label identifies the claimed alloy and condition; the element result identifies chemistry. These records answer different questions. An elemental reading alone does not establish temper, and a handwritten stock label does not replace the required certificate.

For receiving inspection, compare the purchase order, drawing revision, material certificate, and stock identification. Resolve discrepancies before machining. This is where understanding the difference between an element symbol and an alloy designation becomes useful beyond a chemistry definition.

Frequently Asked Questions

Is the aluminum symbol Al or AI?

It is Al, with a lowercase l. AI, using an uppercase I as the second character, is not the chemical symbol for aluminum.

Does Al always mean pure aluminum?

Al is the element symbol. On a product label or engineering document it may indicate the aluminum material family, so check the alloy, temper, and specification before assuming purity.

Is aluminum oxide the same material as aluminum metal?

No. Al identifies aluminum, while Al2O3 is aluminum oxide, a compound with different properties. Its subscript numbers describe composition, not an alloy grade.

Can I order a machined part by specifying Al only?

That leaves the material definition incomplete. Provide an alloy and temper or describe the requirements and request a material recommendation for approval before production.

Technical basis: PubChem aluminum element data, the Aluminum Association alloy-designation overview, and published aluminum temper definitions. Worked procurement examples are illustrative.

Categories
Blog CNC Materials Quality & Tolerances

Is Bronze More Expensive Than Copper? CNC Cost Guide

Bronze is not automatically more expensive than copper. The answer changes with alloy grade, stock form, order size, metal-market conditions, and the work required to turn the stock into an inspected part. Commercially pure copper can carry a higher material price than a common bearing bronze, while specialty aluminum-bronze or nickel-bearing grades may cost considerably more.

For a CNC project, price per kilogram is only a starting point. Yield loss, cutting time, tool wear, deburring, inspection, finishing, and service life can outweigh a small difference in raw stock. This guide explains how engineers and buyers can compare copper and bronze on a finished-part basis.

Bronze vs Copper Cost: The Short Answer

Question Copper Bronze
What is it? A base metal; grades range from high-purity copper to alloyed copper A family of copper alloys, commonly containing tin, aluminum, silicon, or nickel
Typical cost position High-purity and oxygen-free grades may command a premium Common grades may be competitive; specialty grades can be costly
Primary value Electrical and thermal conductivity Wear resistance, strength, bearing behavior, or corrosion resistance
Machining cost tendency Ductile grades can produce burrs and difficult chips Many bearing bronzes cut cleanly; tough specialty grades may be slower
Best comparison Exact grade, temper, form, certification, and finished-part quote Exact grade, condition, form, certification, and finished-part quote

There is no reliable universal percentage difference. Commodity prices move, distributors apply different minimums, and a round bar can be priced differently from plate, tube, or a near-net casting of the same nominal alloy. Request quotations using the same quantity, dimensions, certification, and delivery terms.

Why Alloy Grade Changes the Answer

Copper is an element, but industrial copper products still come in many grades. High-conductivity copper, tellurium copper, chromium-zirconium copper, and oxygen-free copper have different performance and supply economics. Bronze is an even broader label: tin bronze, phosphor bronze, aluminum bronze, silicon bronze, and nickel aluminum bronze are not interchangeable.

Alloying additions change strength, hardness, corrosion behavior, casting response, and machinability. Tin, nickel, and other additions also have their own market prices. A material called bronze may therefore be less expensive, similar in price, or more expensive than the copper grade being considered.

Common Copper Choices

  • High-conductivity copper: selected for busbars, electrodes, heat spreaders, and electrical contacts.
  • Oxygen-free copper: used where conductivity, vacuum behavior, or high purity is critical.
  • Free-machining copper alloys: useful when manufacturability must improve without abandoning copper-based performance.
  • Precipitation-hardened copper alloys: selected when greater strength or thermal fatigue resistance is required.

Common Bronze Choices

  • Phosphor bronze: combines strength, fatigue resistance, and useful spring or bearing behavior.
  • Bearing bronze: designed for sliding contact, bushings, thrust washers, and wear components.
  • Aluminum bronze: offers high strength and strong corrosion resistance for demanding mechanical parts.
  • Silicon bronze: valued for corrosion resistance and fabrication characteristics.
  • Nickel aluminum bronze: chosen for severe marine, pump, valve, and high-load applications.

Seven Factors That Drive Finished-Part Cost

1. Current Metal Value

Copper is a globally traded metal, so changes in its market price affect both copper stock and copper-rich bronze. Bronze price also reflects its alloying additions. A quote should have a validity period because a delayed purchase may be exposed to a different surcharge.

2. Stock Form and Availability

Standard bar diameters and plate thicknesses are generally easier to source than an unusual tube, large continuous-cast section, or certified specialty alloy. Minimum order quantities and mill lead time can dominate a prototype order. A designer may reduce cost by choosing a nearby standard size without compromising the final geometry.

3. Buy-to-Fly or Material Yield

A part machined from oversized solid stock can generate far more chips than finished product. Bronze bushings may be economical from hollow bar or near-net cast stock, while a copper heat sink may still require solid plate. Compare the purchased mass, recoverable scrap, and machining allowance—not just finished mass.

4. Machinability

Many pure copper grades are ductile and prone to built-up edge, long chips, smearing, and heavy burrs. Some bearing bronzes machine cleanly and hold stable features, but hard aluminum-bronze and nickel-bearing grades can demand rigid setups and suitable tooling. The exact alloy determines cycle time.

5. Geometry and Tolerances

Deep pockets, slender walls, small internal radii, interrupted cuts, and tight positional tolerances increase setup and inspection effort for either metal. Blanket tolerances can create cost without adding function. Mark the truly critical interfaces and use practical tolerances elsewhere.

6. Finishing and Quality Requirements

Polishing, plating, passivation-like cleaning specifications, conductivity testing, material traceability, first-article inspection, and dimensional reports all affect the quote. Requirements should be stated at RFQ stage so suppliers compare the same scope.

7. Quantity and Supply Risk

Setup cost matters more for one prototype than for a production batch. Conversely, a high-volume program needs stable mill supply and alloy traceability. A nominally cheaper specialty alloy can become expensive if it is available from only one source or requires a large minimum buy.

CNC Machining Copper and Bronze

Manufacturing issue Copper planning Bronze planning
Chip control Use sharp positive tools and prevent built-up edge Confirm grade; many cut cleanly, while high-strength grades need robust tooling
Burr formation Expect careful edge control on ductile grades Often more manageable, but geometry and grade still matter
Heat Conducts heat rapidly; manage distortion and tool interface Lower conductivity than pure copper; monitor localized heat
Workholding Avoid marking soft conductive surfaces Support cast or hollow stock and control clamping distortion
Inspection Define flatness, conductivity, and cosmetic surfaces Define bearing fits, surface finish, and alloy certification
Cost lever Select a machinable grade when conductivity allows Match strength and corrosion performance without overspecifying alloy

Successful CNC machining begins with an exact material callout. A drawing that says only “copper” or “bronze” invites substitutions and inconsistent quotations. Include the UNS or recognized alloy designation, temper or condition, stock form, and permitted equivalents.

When Copper Is the Better Economic Choice

Copper is usually justified when electrical or thermal performance is central to the design. Busbars, electrodes, power contacts, induction components, and heat-transfer parts can lose their purpose if replaced with a lower-conductivity alloy. Paying more for copper may eliminate extra mass, reduce resistance, or improve heat flow.

Do not automatically specify the highest-purity grade. If a moderately alloyed copper meets conductivity requirements and machines faster, it may lower the completed-part price. Review the balance through MTSPi’s copper CNC machining capability and validate any material change with functional testing.

When Bronze Can Deliver Lower Lifetime Cost

Bronze often earns its place in bushings, wear plates, gears, valve components, marine hardware, and sliding interfaces. Its strength, galling resistance, corrosion behavior, and compatibility with shafts can extend service intervals. Even if the initial part costs more, reduced downtime or replacement frequency may lower the cost per operating hour.

For a bearing application, evaluate pressure, sliding speed, lubrication, shaft finish, alignment, temperature, contamination, and required life. A premium bronze cannot compensate for poor clearance or a rough counterface.

How to Reduce Cost Without Weakening the Design

  1. Name the exact alloy. Eliminate ambiguity before suppliers quote.
  2. Choose standard stock. Adjust noncritical dimensions to available bar, tube, or plate where practical.
  3. Compare near-net options. Hollow stock or casting may reduce waste on rings and housings.
  4. Use functional tolerances. Tighten only datums, fits, sealing faces, and interfaces that need control.
  5. Design accessible features. Avoid unnecessary deep cavities, sharp internal corners, and multiple setups.
  6. Combine demand. Larger releases can distribute programming and setup cost, provided storage and cash flow make sense.
  7. Compare service life. Include wear, maintenance, energy loss, and replacement downtime.

Material Selection by Application

Application Likely starting point Verify before release
Electrical busbar or contact High-conductivity copper Conductivity, temperature rise, plating, and joint design
Heat spreader or cooling plate Copper Thermal path, weight, coolant compatibility, and flatness
Sliding bushing Bearing or phosphor bronze PV limit, lubrication, shaft hardness, and clearance
Marine pump or valve component Suitable aluminum-bronze family Fluid chemistry, galvanic pairing, strength, and certification
Spring contact Phosphor bronze or copper alloy Fatigue, conductivity, forming direction, and plating
Decorative hardware Copper or bronze by appearance Patina, coating, handling, and outdoor exposure

RFQ Checklist for a Fair Comparison

  • 3D model and controlled 2D drawing
  • Exact alloy designation, temper, and approved alternatives
  • Required stock form and material certification
  • Prototype and production quantities
  • Critical tolerances, datums, surface finish, and inspection report
  • Conductivity, hardness, pressure, wear, or corrosion requirements
  • Finishing, plating, cosmetic zones, and packaging
  • Target delivery and quote-validity expectations

MTSPi’s machining materials resources and quality assurance workflow can support alloy review, manufacturability feedback, and inspection planning before production.

Frequently Asked Questions

Is bronze always more expensive than copper?

No. A common bronze may cost less than high-purity copper, while a specialty bronze containing costly alloying elements may cost more. Compare exact grades and forms on the same date.

Which is easier to machine?

Many bearing bronzes machine more cleanly than ductile pure copper. However, high-strength bronze grades can be demanding. Machinability must be judged by alloy, temper, geometry, and tooling.

Does bronze last longer?

Bronze often lasts longer in sliding, wear, and some corrosive environments. Copper remains preferable when electrical or thermal conductivity is the dominant function.

Can scrap value offset machining cost?

Recoverable chips have value, but segregation, cleanliness, volume, and local recycler terms matter. Scrap credit rarely cancels inefficient geometry or excessive stock removal.

Should I choose by price per kilogram?

No. Use finished-part cost and lifetime performance. Include purchased stock, yield, cycle time, tools, inspection, finishing, assembly, maintenance, and expected life.

Conclusion

Bronze may be cheaper or more expensive than copper depending on the exact comparison. Copper usually wins when conductivity is indispensable; bronze often wins when strength, wear resistance, bearing behavior, or corrosion performance governs. The defensible decision is based on a specified alloy and a complete finished-part quotation, followed by verification in the real service environment.

Related MTSPi Resources

Categories
Blog CNC Materials Guides Quality & Tolerances

Acetal vs Nylon: CNC Machining and Material Selection Guide

Acetal and nylon are two of the most useful engineering plastics for machined gears, rollers, bushings, guides, and structural components. They can look similar on a drawing, but they respond differently to humidity, impact, sustained load, friction, and tight tolerances. Acetal is usually the more predictable choice for dimensional stability and smooth precision motion. Nylon is often stronger when a component must absorb shock, tolerate abrasion, or flex without cracking.

This is not a simple good-versus-bad comparison. Both material families contain multiple grades, fillers, and stock forms. The right decision comes from the actual load case, environment, geometry, tolerance scheme, and inspection condition. This guide compares acetal (often specified as POM or by the Delrin trade name) with common machinable nylons from a design-for-manufacturing perspective.

Acetal vs Nylon: Quick Engineering Comparison

Decision factor Acetal / POM Nylon
Typical design priority Stable dimensions and low-friction precision motion Toughness, impact absorption, and abrasion resistance
Moisture response Low absorption; comparatively stable in humidity Absorbs moisture; dimensions and properties can change
Stiffness Generally high and consistent Grade- and moisture-dependent; often more compliant
Impact behavior Good, but less forgiving at notches Generally tougher under shock and repeated loading
Wear and sliding Excellent for controlled sliding and gears Excellent for wear pads, guides, and rugged contact
Machining behavior Clean chips and good tolerance control Can produce stringy chips and move after unclamping
Creep under load Must be checked Must be checked; reinforced grades may help
Best starting point Close fits, valve parts, precision gears, spacers Wear pads, pulleys, rollers, impact-loaded components

These are broad tendencies rather than certified values. Resin type, conditioning, reinforcement, stock-production method, temperature, test direction, and supplier all matter. Always approve the exact grade using its current technical data and any required compliance documentation.

What Is Acetal?

Acetal is the engineering-plastic family known chemically as polyoxymethylene, or POM. It is available as homopolymer and copolymer formulations. Delrin is a trade name associated with a particular acetal homopolymer, so a drawing that says only “Delrin” may not be equivalent to every generic acetal grade. Procurement documents should identify the exact resin or an approved-equivalent rule.

Machined acetal is valued for stiffness, low friction, fatigue performance, clean machinability, and low moisture absorption. These traits make it a practical choice for dimensional spacers, small gears, bearing cages, valve components, electrical insulators, and mechanisms that need repeatable motion. It also tends to produce a crisp machined surface when tools are sharp and heat is controlled.

Homopolymer vs Copolymer POM

Homopolymer POM often offers somewhat higher stiffness and strength, while copolymer grades may provide improved resistance to hot water, alkaline environments, and centerline porosity in larger cross-sections. The meaningful difference depends on grade and stock size. For a sealing bore, pressure component, or thick machined section, do not substitute between them without engineering review.

What Is Nylon?

Nylon refers to a broad polyamide family rather than one uniform material. Nylon 6, nylon 6/6, cast nylon, nylon 12, and reinforced or lubricant-filled grades can behave quite differently. Common nylons combine toughness, fatigue resistance, and excellent abrasion performance, making them useful for rollers, sprockets, wear strips, pulleys, guides, and mechanical components exposed to vibration or intermittent shock.

The defining design issue is moisture absorption. Nylon equilibrates with its surroundings, and absorbed water can change its size, stiffness, and toughness. That can be beneficial for impact behavior but problematic for a close sliding fit or a tightly located hole pattern. Engineering and inspection must agree on whether dimensions apply to dry-as-machined, conditioned, or service-equilibrated material.

The Differences That Matter in Real Parts

Dimensional Stability and Moisture

Acetal is normally easier to control when humidity changes or when the part has a close fit. Nylon can swell after machining as it absorbs moisture, and the amount is affected by grade, wall thickness, time, and exposure. A tolerance that is achievable at the machine may not represent the dimension after conditioning or field service.

For nylon, identify the conditioning state on the drawing or purchase specification. Allow clearance where function permits, avoid blanket tight tolerances, and inspect at a controlled temperature and moisture condition. For either plastic, thin walls and asymmetric stock removal can release internal stress and cause movement.

Stiffness, Toughness, and Impact

Acetal is often selected when rigidity preserves gear alignment, bearing clearance, or positional accuracy. Nylon is usually more forgiving under impact and repeated deflection. Yet geometry can outweigh the generic material trend: a sharp corner, thin snap arm, press fit, or molded-in stress raiser can fail even in a nominally tough resin.

Use generous transitions, remove sharp internal corners, distribute fastener loads, and verify short-term strength separately from long-term creep. Filled grades can increase stiffness but may reduce impact strength or create direction-dependent behavior.

Friction, Wear, and Counterface

Both families can work well in sliding mechanisms. Acetal commonly provides smooth low-friction motion and predictable gear or bearing geometry. Nylon is widely used where abrasive contact and shock occur together. Actual life depends on pressure, velocity, heat generation, lubrication, debris, shaft material, surface finish, alignment, and duty cycle—not the plastic name alone.

A wear pair should be tested as a system. A very rough metal shaft can rapidly abrade a polymer, while an excessively smooth or incompatible counterface may not retain lubricant. Filled or internally lubricated grades should be evaluated when dry running or high duty is expected.

Temperature, Creep, and Chemical Exposure

Neither material behaves like a metal under sustained heat and clamp load. Strength and modulus fall as temperature rises, and creep can relax a bolted joint or distort a bearing seat over time. Nylon grades may retain useful toughness at elevated temperature, while acetal may keep dimensions more predictably in ordinary humid service. Grade-specific curves are essential near any limit.

Both resist many oils, greases, and fuels, but neither is chemically universal. Check the exact fluid, concentration, temperature, stress level, and exposure duration. Cleaning agents, thread lockers, and assembly lubricants deserve the same review as the primary process chemical.

CNC Machining Acetal and Nylon

Machining issue Acetal planning Nylon planning
Cutting edge Sharp polished carbide; maintain a real chip Sharp positive geometry; prevent rubbing and stringy recutting
Heat control Evacuate chips and avoid dwell Control heat carefully because local softening encourages movement
Workholding Broad support without crushing Support flexible walls and avoid clamp distortion
Finishing pass Allow the part to stabilize before final sizing Rough, relax, then finish when tight geometry warrants it
Threads Good detail, but avoid excessive interference Use adequate engagement; inserts or through-bolts may be safer
Inspection Control temperature and fixturing Define moisture condition as well as temperature

Successful CNC plastic machining removes heat with the chip. Rubbing, dull tools, excessive spindle speed, or repeated chip recutting can smear an edge and build residual stress. Air or a verified compatible coolant can help, but the fluid must not attack the polymer or contaminate a regulated part.

Practical Acetal Machining Guidance

  • Use stable, traceable stock and confirm homopolymer or copolymer before production.
  • Keep cutting tools sharp and avoid dwell marks at finished surfaces.
  • Support thin rings and long walls without creating ovality or clamp witness.
  • Use realistic press-fit allowances; excessive interference can split a hub over time.
  • Deburr by controlled cutting rather than melting or heavy edge rounding.

Practical Nylon Machining Guidance

  • State the material grade and conditioning state explicitly.
  • Use positive cutting geometry and evacuate continuous chips safely.
  • For tight features, consider rough machining followed by stress relaxation and finish machining.
  • Allow the part to stabilize before final measurement.
  • Protect long, flexible features from tool pressure and workholding distortion.

How to Choose by Application

Application condition Likely starting point What to verify
Precision gear or index component Acetal Tooth load, backlash, temperature, lubricant, and life
Close-fit bushing in changing humidity Acetal PV limit, shaft finish, clearance, and creep
Impact-loaded roller or pulley Nylon Shock load, moisture state, bearing retention, and wear
Wear pad or guide rail Nylon Counterface, debris, pressure, velocity, and lubrication
Valve or fluid-handling component Acetal grade selected for media Chemical compatibility, pressure, temperature, and porosity
Large structural plastic plate Cast nylon may be attractive Flatness, internal stress, conditioning, and creep
Food or medical contact part Certified grade only Applicable regulation, traceability, cleaning, and validation

Design Rules That Reduce Failure Risk

  1. Specify the family and exact grade. “Plastic,” “nylon,” or “acetal” alone leaves too much room for substitution.
  2. Define the service environment. Include humidity, immersion, temperature range, chemicals, UV exposure, and duty cycle.
  3. Tolerance only the interfaces that matter. Plastic dimensions respond to temperature, moisture, stress, and fixturing.
  4. Avoid sharp stress concentrators. Add corner radii and smooth section changes.
  5. Design fasteners for creep. Use washers, shoulders, metal inserts, or through-bolts where appropriate.
  6. Account for thermal expansion. Do not trap a long plastic component between rigid metal boundaries without clearance.
  7. Separate cosmetic and functional surfaces. Deburring, polishing, and protective handling can affect critical edges.

Cost: Compare the Finished System, Not Stock Price

Standard nylon stock may appear less expensive than a specified acetal grade, but material price is only one input. Add machining time, stabilization steps, scrap risk, inspection, assembly method, lubrication, maintenance, and expected service life. A stable acetal part may be cheaper if it avoids post-machining movement; a tougher nylon component may be cheaper if it survives shock and abrasive duty longer.

RFQ Checklist

  • Controlled 3D model and 2D drawing
  • Exact resin, grade, color, filler, and approved equivalents
  • Stock form and required material certification
  • Quantity and prototype-to-production plan
  • Critical datums, fits, tolerances, and inspection condition
  • Load, speed, temperature, humidity, chemicals, and expected life
  • Counterface material, finish, lubrication, and debris exposure
  • Threads, inserts, press fits, assembly torque, and cosmetic requirements

MTSPi can review these inputs through its CNC machining services, dedicated acetal machining and nylon machining capabilities, and quality assurance workflow.

Frequently Asked Questions

Is Delrin the same as acetal?

Delrin is a trade name for a specific POM homopolymer. Acetal is the wider POM family, which also includes copolymers. Use the exact grade on production documents.

Which material holds a tighter tolerance?

Acetal is usually the easier starting point because it absorbs less moisture. Geometry, stock stress, temperature, fixturing, and measurement method still control the achievable result.

Which is better for gears?

Acetal suits precise, low-friction gears; nylon can suit tougher or shock-loaded gears. Tooth load, heat, lubrication, backlash, and life testing should decide.

Can nylon be machined accurately?

Yes. Accurate nylon parts require suitable stock, sharp tools, controlled heat and workholding, stabilization, and a defined moisture condition.

Can both materials use threaded inserts?

Yes, but insert style, installation method, wall thickness, torque, temperature, and creep must be validated for the exact grade.

Conclusion

Choose acetal when stable dimensions, stiffness, clean machinability, and smooth low-friction motion lead the requirements. Choose nylon when toughness, abrasion resistance, and impact absorption matter more. Then verify the decision against the exact grade, conditioning state, environment, tolerance plan, counterface, and lifetime load—not a generic property chart.

Related MTSPi Resources

Categories
Blog CNC Materials Quality & Tolerances

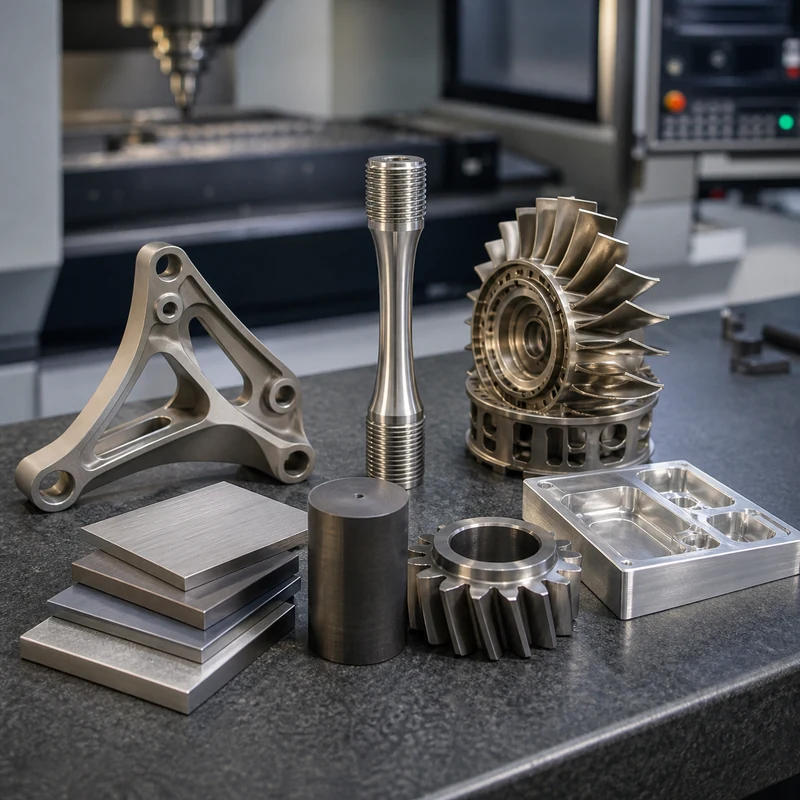

Strongest Engineering Metals: 10 Choices for Machined Parts

There is no single “strongest metal” because strength can mean tensile strength, yield strength, hardness, toughness, fatigue resistance, or strength retained at high temperature. Tungsten leads in melting temperature, some tool steels lead in hardness, titanium alloys excel in strength-to-weight ratio, and nickel superalloys retain useful strength where ordinary alloys soften.

For a machined component, the useful question is: which material provides the required mechanical performance, environment resistance, manufacturability, inspection confidence, weight, and cost? This guide compares ten important high-strength metal families using that engineering lens.

How Engineers Define Strength

Property What it describes Why it matters
Yield strength Stress where permanent deformation begins Sets limits for shafts, brackets, housings, and fasteners
Ultimate tensile strength Maximum tensile stress before fracture Useful for comparison, but not normally the sole design limit
Hardness Resistance to indentation and local wear Important for tools, dies, bearings, and sliding surfaces
Toughness Ability to absorb energy before fracture Critical under impact, defects, and low temperature
Fatigue strength Resistance to repeated loading Controls many rotating and cyclic components
Specific strength Strength divided by density Central to aerospace and mobile systems
Hot strength Load capacity retained at temperature Essential for engines, turbines, and thermal tooling

Ten High-Strength Metal Families

1. Tungsten and Tungsten Heavy Alloys

Tungsten has exceptional density, stiffness, wear resistance, and the highest melting temperature of the pure metals. Pure tungsten is difficult and brittle at ordinary conditions; heavy alloys improve manufacturability and toughness for counterweights, radiation shielding, electrodes, and high-inertia components.

2. Maraging Steel

Maraging steels achieve very high strength through an aging treatment applied to a low-carbon martensitic structure. They combine strength with useful toughness and dimensional response, making them candidates for aerospace tooling, dies, shafts, and high-performance mechanisms. Material cost and controlled heat treatment are significant.

3. Ultra-High-Strength Low-Alloy Steel

Grades such as 4340-type steels can reach high strength with appropriate quench-and-temper processing while retaining better toughness than many very hard tool steels. Section size, heat-treatment uniformity, decarburization, and final grinding allowance must be planned.

4. Tool Steel

Cold-work, hot-work, and high-speed tool steels are optimized for hardness, wear, compressive strength, or hot hardness. They are strong choices for molds, punches, cutting tools, and wear components, but high hardness can reduce toughness and greatly increase machining difficulty.

5. Nickel-Based Superalloys

Nickel superalloys retain strength and oxidation resistance at temperatures that defeat conventional steels. They serve turbines, aerospace engines, energy equipment, and demanding chemical systems. Work hardening, low thermal conductivity, abrasive phases, and expensive stock make process discipline essential.

6. Titanium Alloys

Titanium alloys offer outstanding specific strength, corrosion resistance, and biocompatibility. Ti-6Al-4V is widely used in aerospace, medical, marine, and performance applications. Low thermal conductivity and chemical reactivity concentrate heat at the cutting edge, so stable setups and suitable tooling are required.

7. Cobalt-Based Alloys

Cobalt alloys are selected for wear, corrosion, and hot-strength performance in valves, medical components, combustion systems, and severe sliding contacts. Their toughness and abrasive constituents can make machining slow and tool-intensive.

8. Precipitation-Hardening Stainless Steel

Grades such as 17-4 PH combine corrosion resistance with heat-treatable strength and practical availability. They are common in aerospace fittings, valves, shafts, and food or process equipment. Strength, corrosion behavior, and dimensional stability depend on the specified condition.

9. High-Strength Aluminum Alloys

7075-class aluminum is not the strongest by absolute stress, but it offers excellent specific strength and high machining productivity. It suits aircraft structures, robotics, fixtures, and performance equipment where low mass matters. Corrosion protection, fatigue, joining, and through-thickness behavior require attention.

10. High-Strength Copper Alloys

Beryllium-copper and selected copper-nickel or precipitation-strengthened copper alloys combine useful strength with conductivity, corrosion behavior, or non-sparking performance. Health controls are mandatory when machining beryllium-containing material, and alloy-specific compliance must be verified.

Selection Matrix for Machined Parts

Design priority Common starting candidates Main trade-off
Maximum room-temperature strength Maraging or ultra-high-strength steel Density, corrosion, heat treatment, cost
High wear resistance Tool steel or cobalt alloy Brittleness and machining difficulty
Hot strength and oxidation resistance Nickel or cobalt superalloy Cost and slow machining
Best strength-to-weight ratio Titanium alloy or high-strength aluminum Material/process cost or lower absolute stiffness
Corrosion plus high strength PH stainless or titanium Heat-treatment condition and cost
Density or radiation attenuation Tungsten heavy alloy Weight, brittleness, and tool wear
Strength plus conductivity High-strength copper alloy Cost, compliance, and lower stiffness

Machinability Changes the Real Cost

A material with the highest datasheet strength may not produce the best component. Hardness, work hardening, thermal conductivity, elastic recovery, residual stress, and heat-treatment sequence affect cycle time and dimensional risk. MTSPi’s CNC machining services review evaluates tool access, wall thickness, stock condition, datum strategy, and finishing before production.

Machine Soft, Finish Hard?

Many steels are rough-machined before heat treatment and finish-ground or machined afterward. This can reduce tool wear but requires allowance for distortion and scale. PH stainless and maraging steel may offer more predictable aging response than conventional quenched alloys, but actual stability still depends on geometry and process control.

Inspection and Certification

High-strength applications often need more than a dimensional report. Material certificates, heat-treatment records, hardness results, surface-finish data, traceability, and nondestructive testing may be required. Define these deliverables in the RFQ and drawing. MTSPi’s quality assurance system can align the inspection plan with critical features and risk.

A Better Material-Selection Workflow

  1. Define load cases, safety factors, fatigue life, impact, and temperature.
  2. Set density, corrosion, conductivity, wear, and regulatory constraints.
  3. Compare yield strength and toughness in the actual heat-treatment condition.
  4. Check stock availability, section size, and certification.
  5. Plan machining, heat treatment, coating, joining, and final inspection as one route.
  6. Prototype the highest-risk geometry or process step.
  7. Validate the finished component under representative service conditions.

Frequently Asked Questions

Is tungsten the strongest metal?

Tungsten is exceptional in melting temperature, stiffness, and density, but it is not universally best in tensile strength, toughness, fatigue, or manufacturability.

Is titanium stronger than steel?

Some steels exceed titanium in absolute strength and stiffness. Titanium often wins on strength-to-weight ratio and corrosion performance.

What is the strongest practical metal for CNC machining?

There is no universal answer. PH stainless, alloy steel, titanium, tool steel, and nickel superalloy can each be best under different loads and environments.

Does higher hardness always mean higher strength?

No. Hardness often correlates with tensile strength within a material family, but it does not replace toughness, fatigue, or fracture data.

Conclusion

The strongest metal is the one that meets the complete duty cycle with a manufacturable and verifiable process. Compare strength mode, temperature, density, corrosion, toughness, fatigue, availability, machining, and inspection together. Review MTSPi’s machining materials system or request an engineering review for a production part.

Categories
Blog CNC Materials Quality & Tolerances

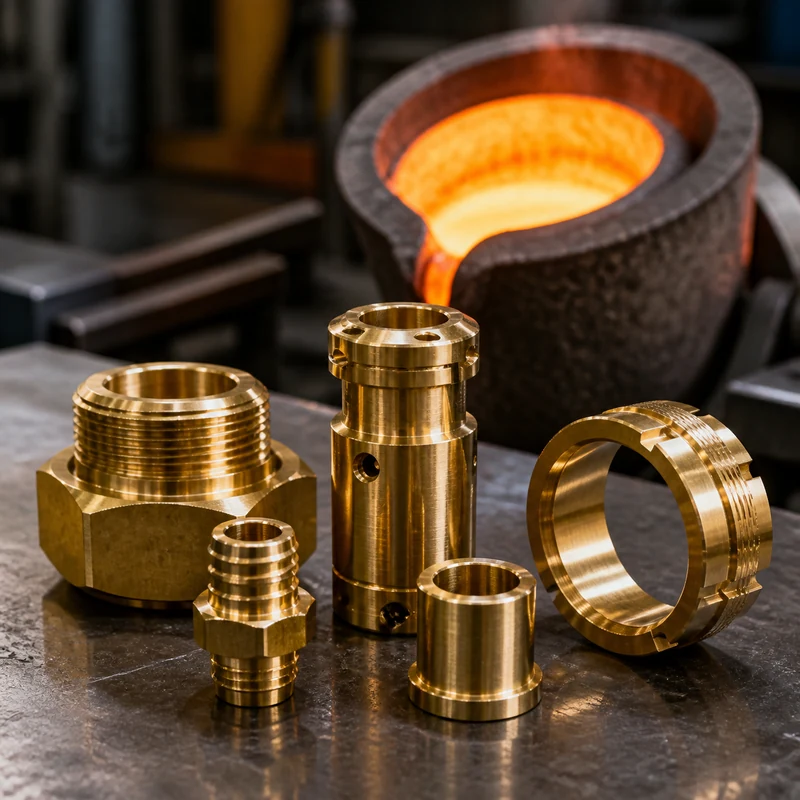

Brass Melting Range: Grades, Temperatures, and Machining Guide

Brass does not have one universal melting point. It is a family of copper-zinc alloys, and each composition passes through a melting interval between its solidus and liquidus temperatures. For common wrought brasses, that interval is often roughly 880–950°C (1,616–1,742°F), but the certified range for the specified grade should control any thermal process.

This distinction matters in manufacturing. A part may begin to lose strength, distort, or develop a low-melting constituent well before the alloy becomes completely liquid. Engineers planning brazing, heat exposure, casting, or failure analysis should therefore work from alloy identity and service conditions—not a single generic number.

Melting Point, Solidus, and Liquidus

The solidus is the temperature below which the alloy is fully solid. Between solidus and liquidus, solid and liquid phases coexist. Above the liquidus, the alloy is fully molten. Published values can vary with chemistry limits, test method, and source, so they are useful for preliminary design but are not a substitute for a mill certificate or grade-specific data sheet.

Brass family Typical composition tendency Approximate melting behavior Manufacturing note
Cartridge brass Higher copper, commonly near 70/30 Cu-Zn About 915–955°C Good cold formability; verify grade before heating
Yellow brass Commonly near 65/35 Cu-Zn About 900–940°C Broad commercial use; zinc loss is a heating concern
Free-machining brass Copper-zinc with machinability additions Often about 885–930°C Excellent cutting behavior; composition and compliance matter
Naval brass Copper-zinc with tin Often about 890–940°C Chosen for corrosion performance; use certified values
Red brass/gunmetal-type alloys Higher copper, often with tin/lead variants Often higher and grade dependent Do not group unlike casting and wrought grades

The ranges above are orientation values, not furnace setpoints. Exact limits must come from the applicable material specification.

Why Composition Changes the Range

Copper melts at a substantially higher temperature than zinc. Increasing zinc generally lowers the brass melting interval, while tin, lead, silicon, aluminum, nickel, and other additions alter phase behavior in different ways. Small chemistry differences may also change hot ductility, oxidation, fumes, and suitability for joining.

Zinc Loss and Fume Control

Zinc is volatile at elevated temperature. Prolonged or poorly controlled heating can change surface chemistry, create oxide, and produce hazardous fumes. Any melting, brazing, or hot-working operation needs suitable ventilation, exposure controls, clean charge material, and a validated process. Do not use appearance alone to judge alloy condition.

Melting Is Not the Same as Safe Service Temperature

A brass component can soften, creep, lose temper, relax a press fit, or damage a seal hundreds of degrees below its melting interval. The allowable service temperature depends on load, time, temper, geometry, environment, joining method, and the governing code. For a machined assembly, thermal expansion may shift alignment or preload before metallurgical damage occurs.

Question Value to use
Will the alloy fully melt? Liquidus temperature for the exact grade
When can incipient melting begin? Solidus and phase-specific data
Can the part carry load while hot? Temperature-dependent strength and creep data
Will a press fit remain stable? Expansion, modulus, yield, geometry, and dwell time
Can it be brazed or soldered? Filler range, base-alloy solidus, joint design, and process window

Implications for CNC-Machined Brass Parts

Most brass machining occurs far below melting temperatures, yet local heat still affects size, finish, tool life, and chip formation. Sharp tools, stable workholding, appropriate cutting data, and chip evacuation help prevent rubbing and built-up material. MTSPi’s brass CNC machining workflow considers grade, geometry, surface finish, and inspection temperature together.

Grade Identification

Calling out only “brass” leaves purchasing and production too much freedom. Specify the recognized alloy designation, temper, stock form, and any restrictions on lead or other constituents. If conductivity, dezincification resistance, potable-water compliance, or color is functional, state it explicitly on the controlled drawing.

Thermal Fit and Tolerance

Brass expands more than many steels. In mixed-material assemblies, temperature changes can alter clearances and interference fits. Define the operating range and functional condition, then apply tolerances to the interfaces that matter. For critical dimensions, MTSPi’s quality assurance process can align inspection method and reporting with the drawing.

Joining Brass Without Damaging the Base Material

  • Soldering: uses a comparatively low-temperature filler and is appropriate for selected electrical or fluid joints.
  • Brazing: provides stronger joints at higher temperature, but the process window must remain safely below damaging base-alloy conditions.
  • Welding: is grade sensitive because zinc loss, porosity, cracking, and fume generation must be controlled.
  • Mechanical joining: avoids bulk heating but introduces thread, preload, galvanic, and sealing considerations.

Practical Material and Process Checklist

  1. Identify the exact alloy and governing material specification.
  2. Obtain solidus/liquidus and hot-property data from the qualified source.
  3. Separate melting limits from allowable service temperature.
  4. Account for zinc fumes, oxidation, ventilation, and operator safety.
  5. Validate filler metal, flux, atmosphere, dwell time, and joint clearance.
  6. Review thermal expansion across the complete assembly.
  7. Inspect heat-affected dimensions and surfaces after the process.

Frequently Asked Questions

What temperature does brass melt at?

Many common brasses melt across roughly 880–950°C, but the correct answer is a grade-specific solidus-to-liquidus range.

Why is there no single brass melting point?

Brass contains multiple elements. Different phases begin and finish melting at different temperatures.

Can brass fail below its melting range?

Yes. Softening, creep, stress relaxation, oxidation, or loss of temper may make a part unusable well below melting.

Does machining melt brass?

Correct CNC cutting removes chips without bulk melting. Excessive rubbing can create harmful local heat and poor finish, which is controlled through tooling and process parameters.

Conclusion

Treat brass melting behavior as a grade-dependent interval, not a single lookup value. For reliable parts, combine certified chemistry and solidus/liquidus data with hot strength, service load, thermal expansion, joining conditions, and manufacturing controls. Explore MTSPi’s machining materials resources or send an RFQ for a grade-specific review.

Categories
Blog CNC Materials Guides Quality & Tolerances

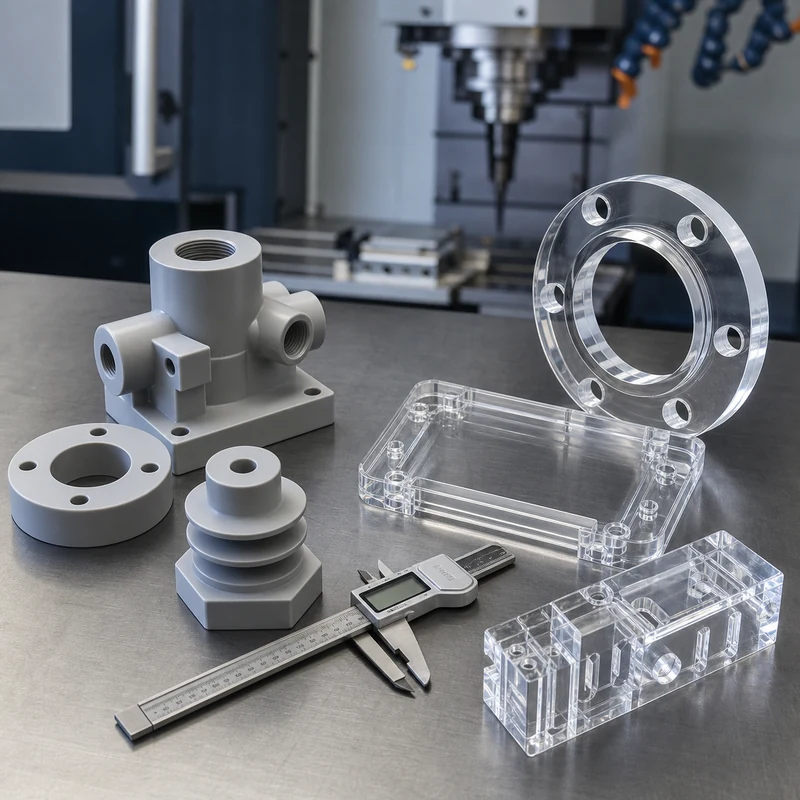

PVC vs Acrylic: CNC Machining and Material Selection Guide

PVC and acrylic can both be machined into accurate plastic components, yet they solve different engineering problems. Rigid PVC is usually selected for chemical resistance, electrical insulation, toughness, and economical functional parts. Acrylic (PMMA) is selected when optical clarity, UV stability, a polished appearance, or visual inspection through the component matters.

The best choice cannot be made from appearance alone. Grade, service temperature, chemical exposure, impact risk, tolerances, edge finish, and fastening method all affect performance. This guide compares PVC vs acrylic from a design-for-machining perspective and explains what to include in a production RFQ.

PVC and Acrylic at a Glance

Selection factor Rigid PVC Acrylic (PMMA)
Primary advantage Chemical-resistant, economical functional performance Optical clarity and premium surface appearance
Transparency Opaque, translucent, and clear grades exist; optical quality varies Excellent clarity in optical-grade material
Impact behavior Generally tougher and less notch-sensitive Rigid but comparatively brittle
Chemical resistance Strong against many acids, alkalis, and salts Useful general resistance, but vulnerable to several solvents
Outdoor exposure Grade and stabilizer dependent Usually strong UV and weathering performance
Machining concern Heat, chip evacuation, dimensional recovery Chipping, cracking, heat, and residual stress
Typical use Manifolds, insulators, fixtures, corrosion-resistant parts Windows, guards, displays, light guides, clear housings

Property values vary by formulation, sheet or rod manufacturing method, colorant, and test standard. Designers should use the supplier’s current data for the purchased grade instead of treating a generic comparison as a material certificate.

What Is Rigid PVC?

Polyvinyl chloride is available in flexible and rigid forms. CNC components generally use rigid, unplasticized grades because they offer useful stiffness, low moisture absorption, electrical insulation, and resistance to many corrosive media. It is frequently considered for laboratory hardware, wet-process equipment, electrical components, and fluid-handling parts.

PVC is not a universal chemical solution. Temperature, concentration, exposure time, mechanical stress, and joining method can change compatibility. It also softens as temperature rises, so thin walls or clamped components require realistic thermal and creep expectations.

What Is Acrylic?

Acrylic is the common engineering name for polymethyl methacrylate (PMMA). Its defining advantage is clarity: properly selected and finished acrylic can create transparent covers, machine windows, instrument faces, lighting elements, and inspection components with a glass-like appearance at lower weight than glass.

Cast vs Extruded Acrylic

Cast acrylic is often favored for CNC machining because it typically handles cutting and polishing with lower sensitivity to localized heat and residual stress. Extruded sheet offers consistent thickness and economical availability, but its process history may make it more prone to gumming, stress, or dimensional movement. That is a practical tendency rather than an absolute rule; the actual grade and stock condition govern.

Key Engineering Differences

Optical Clarity and Finish

Acrylic is the natural choice for a view window or presentation surface. Machined edges can be brought to a clear finish through controlled sanding, polishing, or a qualified vapor/flame process. Every polishing method changes geometry and surface condition, so an appearance requirement should be separated from a critical sealing or dimensional surface.

Clear PVC exists, but it is generally specified for chemical or fabrication performance rather than maximum optical quality. A sample approval is useful whenever haze, tint, light transmission, or distortion is important.

Chemical Compatibility

Rigid PVC performs well in many aqueous chemical environments, which makes it attractive for manifolds, covers, and handling equipment. Acrylic can craze or crack after contact with incompatible solvents, cleaners, adhesives, or thread-locking compounds. Compatibility must be checked against the exact chemical, concentration, temperature, and duration. A brief wipe test does not predict long-term stressed exposure.

Impact, Notches, and Fasteners

Acrylic is stiff but notch-sensitive. Sharp internal corners, countersunk fasteners, press fits, and over-tightened screws can concentrate stress and initiate cracks. PVC usually tolerates routine handling better, although it can still deform under sustained clamp load. Add corner radii, provide clearance, distribute load with washers or inserts, and define assembly torque where necessary.

UV, Weather, and Temperature

Acrylic generally retains clarity well outdoors. PVC outdoor performance depends strongly on formulation, pigmentation, and stabilizers. Neither material is a high-temperature engineering plastic. For continuous heat, sterilization, or large thermal swings, evaluate alternatives through MTSPi’s machining materials system and account for thermal expansion in the tolerance plan.

PVC vs Acrylic for CNC Machining

Process issue PVC planning response Acrylic planning response
Tooling Sharp, polished carbide with geometry that cuts cleanly Very sharp polished tools and low-runout holders
Heat Maintain chip load and evacuate chips before they recut Avoid rubbing; control heat to prevent melting and stress
Workholding Support the part without long-term or local crushing Use broad, compliant support and avoid point loads
Edges Deburr cleanly without smearing Prevent breakout and specify whether edges remain machined or polished
Coolant/cleaner Confirm chemical compatibility Avoid stress-crazing fluids and solvents
Inspection Allow the part to reach stable temperature Protect optical faces and avoid probe or fixture damage

In CNC plastic machining, aggressive cutting is rarely the answer. The process should form a real chip instead of rubbing, while keeping heat out of the workpiece. Thin plastic parts may move after unclamping, so tolerances should reflect wall thickness, stock stress, temperature, and how the component will be supported during inspection.

Machining Rigid PVC

  • Use sharp tools and reliable extraction so stringy or warm chips do not recut.
  • Avoid excessive surface speed or dwell that can soften and smear the edge.
  • Support thin walls and large plates to limit vibration and clamping distortion.
  • Verify that coolant, adhesive, and cleaning chemistry are compatible with the selected grade.
  • Control deburring so edges are clean without being rounded beyond the drawing.

Machining Acrylic

  • Prefer stable stock and sharp, polished cutting edges.
  • Use toolpaths that reduce exit-edge breakout and sudden load changes.
  • Provide radii at internal corners rather than leaving sharp stress risers.
  • Protect cosmetic faces with appropriate film and handling controls.
  • If optical polishing is required, define the surfaces and acceptable distortion before quoting.

Design Guidance for Reliable Parts

  1. Name the exact grade and stock form. State rigid PVC or PMMA, cast or extruded acrylic where relevant, color, thickness, and any compliance needs.
  2. Prioritize tolerances. Apply tight limits only to functional interfaces; plastic movement makes blanket precision expensive and sometimes unstable.
  3. Use generous internal radii. Radii improve tool access and reduce stress concentration, especially in acrylic.
  4. Manage threads carefully. Large engagement, inserts, through-bolts, or coarse threads may be better than small deep tapped holes.
  5. Separate optical and dimensional requirements. Polishing can alter size, edge shape, and flatness.
  6. Allow for thermal expansion. A clear panel trapped in a rigid metal frame needs clearance across its full service range.

Application-Based Selection

Application Likely starting material Reason to verify
Chemical manifold or laboratory fixture Rigid PVC Exact chemical, pressure, temperature, and joining method
Electrical insulator or enclosure component Rigid PVC Voltage, flammability, heat, and certification requirements
Machine guard or inspection window Acrylic Impact standard, mounting clearance, thickness, and cleaning chemicals
Display or illuminated component Acrylic Optical grade, polish level, haze, and edge appearance
Outdoor transparent cover Acrylic UV exposure, impact, seal design, and thermal movement
Low-cost opaque spacer or bracket Rigid PVC Load, creep, temperature, and fire behavior

For a safety guard, pressure boundary, medical device, or regulated electrical assembly, generic material guidance is insufficient. The designer must verify the relevant standard and use certified material with traceability.

When Neither Material Is Ideal

Choose another engineering plastic when the application demands high impact strength, sustained high temperature, repeated steam sterilization, extreme wear, or solvent exposure that attacks both candidates. Polycarbonate may be considered for impact-critical transparent guards; PEEK, PEI, PTFE, POM, or nylon may better address other thermal, friction, or chemical requirements. The final choice should balance material behavior with machinability and inspection capability.

RFQ Checklist

  • 3D model and controlled 2D drawing
  • Exact resin grade, stock form, color, and certification
  • Quantity and prototype-to-production expectations
  • Critical dimensions, datums, flatness, and inspection method
  • Operating temperature, load, UV, moisture, and chemical exposure
  • Optical, cosmetic, edge-polish, and protective-film requirements
  • Thread inserts, adhesives, fasteners, and assembly torque
  • Required inspection report and material traceability

MTSPi can review these inputs through its CNC machining services and quality assurance workflow before production.

Frequently Asked Questions

Is PVC cheaper than acrylic?

Common rigid PVC stock is often less expensive, but finished-part cost also includes grade availability, machining time, inspection, polishing, and scrap risk.

Which is easier to CNC machine?

Rigid PVC is often more forgiving around edges, while acrylic needs closer control of heat, tool sharpness, and stress. Both can produce accurate parts with the right process.

Can acrylic hold tight tolerances?

Yes, within a realistic design. Stock stress, wall thickness, thermal expansion, clamping, polishing, and inspection temperature must be considered.

Can clear PVC replace acrylic?

Sometimes, when chemical or fabrication needs dominate. For high optical clarity, edge polish, and long-term outdoor appearance, acrylic is normally the stronger starting point.

Which is better outdoors?

Acrylic generally offers better inherent UV and clarity retention. Outdoor PVC must be selected by grade and formulation.

Conclusion

Select rigid PVC for economical functional components that need chemical resistance and electrical insulation. Select acrylic for transparent, UV-exposed, or appearance-critical parts. Then refine the decision using the exact grade, environment, geometry, fastening method, finish, and tolerance needs—not a generic material label.

Related MTSPi Resources

Categories
Blog CNC Materials Guides Quality & Tolerances

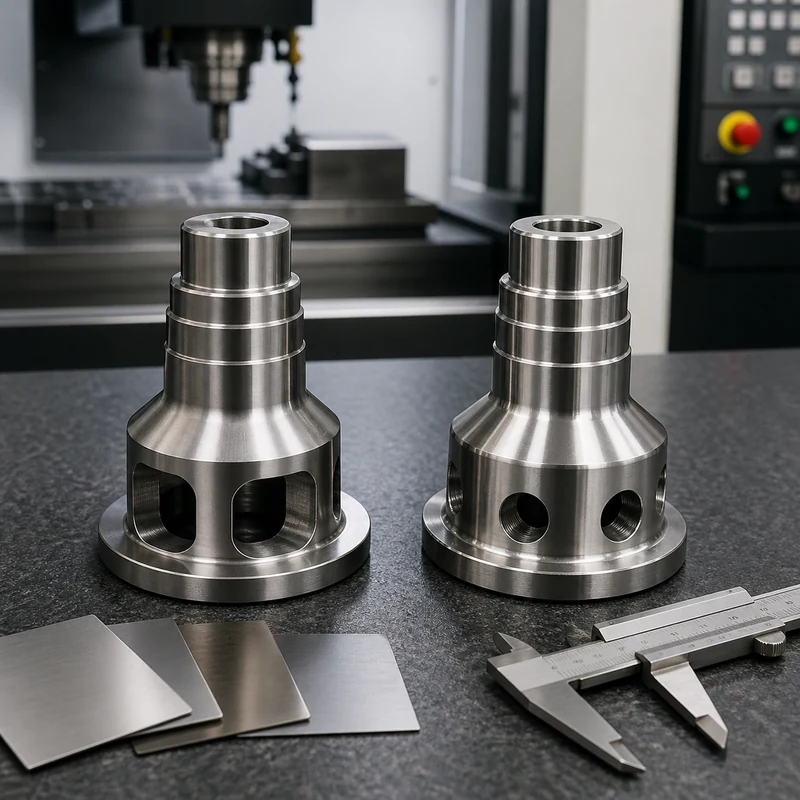

420 vs 316 Stainless Steel for CNC Machined Parts

420 and 316 stainless steel are both useful CNC materials, but they solve different engineering problems. One is normally chosen for hardness and wear resistance. The other is chosen when corrosion resistance, toughness, and long service life in wet or chemical environments matter more.

For a machined part, the right choice depends on load, exposure, surface finish, heat treatment, tolerance, and inspection requirements. MTSPi reviews these tradeoffs together with stainless steel CNC machining and the full part drawing before recommending a material route.

Quick Comparison

Requirement 420 stainless steel 316 stainless steel CNC buyer note
Stainless family Martensitic Austenitic Different structures create different machining and performance behavior.
Main advantage Hardness and wear resistance Corrosion resistance and toughness Start with the part’s failure risk, not just the alloy name.
Heat treatment Can be hardened Usually not hardened by heat treatment Specify target hardness if 420 is selected for wear.
Corrosion behavior Moderate Strong, especially around chlorides 316 is usually better for marine, medical, food, and chemical exposure.
Typical CNC use Shafts, tools, wear pads, molds, blades Housings, fittings, medical parts, marine parts Geometry and environment decide the final choice.

What 420 Stainless Steel Does Well

420 stainless steel contains enough carbon to be hardened by heat treatment. After hardening, it can provide higher surface hardness and better wear resistance than many common austenitic stainless grades. That makes it useful for parts that rub, slide, cut, or need to hold a working edge.

Common examples include shafts, valve parts, mold components, wear blocks, tooling features, and mechanical parts where corrosion exposure is limited. When the part includes milled pockets, turned diameters, slots, or threaded features, MTSPi may compare CNC milling service and CNC turning service routes to control distortion and finish.

Where 316 Stainless Steel Is Stronger

316 stainless steel is usually selected when the part must survive moisture, cleaning chemicals, salt exposure, or biological and food-contact environments. Its molybdenum content improves resistance to chloride attack, which is why buyers often consider it for marine, medical, chemical, and food-processing components.

316 is not the best choice when maximum hardness is the primary requirement, but it is often a better long-term material for parts exposed to corrosive service. It also pairs well with finishing and cleaning requirements planned through surface treatment.

Machinability and Production Planning

Manufacturing factor 420 stainless steel 316 stainless steel
Tool wear Depends heavily on hardness condition Can work harden if cutting is not controlled
Heat control Important after hardening or near tight features Important because heat and rubbing can worsen work hardening
Burr risk Varies with heat treatment and feature size Can be noticeable on small holes, slots, and thin edges
Inspection focus Hardness, wear surfaces, critical diameters Corrosion-critical surfaces, finish, dimensions, passivation notes

A material that looks cheaper on paper can become expensive if it needs extra passes, slower cutting, special inspection, or post-machining treatment. The RFQ should include material condition, quantity, finish, hardness if needed, and which dimensions are critical.

How to Choose Between 420 and 316

Choose this priority Better starting point Reason
High hardness after heat treatment 420 stainless steel It can be hardened for wear and edge retention.
Marine or chloride exposure 316 stainless steel It offers stronger corrosion resistance.
Medical or cleaning-heavy environment 316 stainless steel It is commonly used where corrosion resistance and cleanliness matter.
Wear part in a mostly dry environment 420 stainless steel Hardness may matter more than corrosion resistance.
General corrosion-resistant CNC component 316 stainless steel It is often the safer choice when exposure is uncertain.

Drawing and Quality Notes

If 420 is chosen for hardness, state the target hardness range and whether heat treatment occurs before or after machining. If 316 is chosen for corrosion resistance, state any passivation, polishing, cleaning, or surface roughness requirements. These details should appear in CNC machining drawings so quoting, machining, and inspection use the same assumptions.

For higher-risk parts, combine material certificates, dimensional reports, hardness checks, and surface finish checks through CNC machining quality inspection. This reduces the chance that a material choice looks correct but fails at receiving inspection or in service.

Conclusion

Choose 420 stainless steel when hardness, wear resistance, and heat-treatable strength are the main design goals. Choose 316 stainless steel when corrosion resistance, toughness, and long-term stability in wet or chemical environments are more important. For CNC machined parts, the best decision comes from matching material behavior to the real operating environment, not from treating all stainless steels as interchangeable.

Request A Quote

We'll Send You Back with Price Immediately!

DEC 1-31

XMAS SPECEIL

Up to

40% off

420 vs 316 Stainless Steel for CNC Machined Parts

We'll Send You Back with Price Immediately!
