Face Milling vs Peripheral Milling: Differences and Selection Guide

Face milling and peripheral milling describe where a cutter does most of its work. In face milling, cutting edges across the tool face create a surface generally perpendicular to the spindle axis. In peripheral milling, teeth around the cutter circumference generate a surface generally parallel to that axis.

The distinction affects cutter choice, machine orientation, chip thickness, surface texture, workholding, and tool access. Many real parts use both methods in separate operations.

Face Milling vs Peripheral Milling at a Glance

Factor Face milling Peripheral milling
Primary cutting edges Face and outer inserts Teeth around circumference
Generated surface Usually perpendicular to spindle axis Usually parallel to spindle axis
Typical task Large flat faces and datum planes Sides, shoulders, slots, and long edges
Common cutter Indexable face mill or shell mill End mill, slab mill, or side-and-face cutter
Surface marks Sweeping arcs across the face Lines following cutter travel and tooth engagement
Machine demand Spindle power and stable axial support Arbor/tool rigidity and controlled radial load

How Face Milling Works

A face mill spans a broad area and removes stock with multiple inserts. The cutter is normally wider than the intended pass, although large surfaces may need overlapping passes. Lead angle, radial engagement, insert geometry, and cutter position determine force direction and chip thickness.

Face milling is commonly used to establish the first reference plane on plate, square a block, finish a flange, or prepare a sealing face. For consistent results, the machine spindle must be correctly aligned and the work fully supported.

How Peripheral Milling Works

Peripheral cutters engage with teeth on their outside diameter. A vertical machining center often performs this action with an end mill along a wall; a horizontal mill may use a slab or side-and-face cutter on an arbor. The method is effective for shoulders, profiles, deep straight sides, and slots.

Tool stick-out and radial deflection are central concerns. A long end mill may bend away from the work, causing taper, chatter, or a dimensional step. Short tools, balanced radial engagement, and staged finishing passes improve control.

Climb and Conventional Direction

Both methods may use climb or conventional milling. In climb milling, chip thickness starts high and falls toward zero; this often improves finish and tool life on rigid CNC equipment. Conventional milling starts near zero chip thickness and can rub before cutting, but it may be useful with certain manual-machine backlash conditions or unstable surface scale. Machine condition and workholding determine the safe choice.

Choosing the Right Method

  1. Identify the surface orientation. A broad top face favors a face mill; a vertical wall favors peripheral engagement.
  2. Measure access. Fixtures, clamps, adjacent walls, and spindle reach may eliminate an otherwise ideal tool.
  3. Estimate rigidity. Large cutter diameter increases power demand, while long peripheral tools increase deflection risk.
  4. Plan chip evacuation. Avoid recutting chips, especially in pockets and deep shoulders.
  5. Separate roughing and finishing. Leave predictable stock so the finish pass sees consistent engagement.
  6. Match the tolerance. Flatness, parallelism, perpendicularity, and surface finish need different setup controls.

Tool Selection Variables

  • Material: aluminum benefits from sharp polished geometry; steel and stainless require grade-specific edge strength and heat control.
  • Cutter diameter: a larger face mill covers more width but requires adequate spindle power and clearance.
  • Lead angle: changes axial and radial forces, chip thinning, and exit behavior.
  • Insert pitch: coarse pitch provides chip space; fine pitch increases teeth in cut on stable high-power setups.
  • Tool reach: keep peripheral cutters as short as the geometry permits.

Surface Finish and Accuracy

Face-milled flatness is influenced by spindle tram, insert runout, work support, thermal state, and cutter path. A single high insert may leave witness marks. Peripheral wall accuracy depends strongly on tool deflection, runout, axial depth, radial engagement, and whether finishing occurs in one controlled pass.

Inspection should follow the drawing datum scheme. A cosmetically smooth surface is not automatically flat, parallel, or perpendicular. MTSPi’s quality assurance workflow separates appearance from measurable geometric requirements.

Typical Problems and Corrections

Symptom Likely contributors Practical response
Chatter Weak setup, excessive reach, poor engagement Shorten tool, support work, adjust speed or engagement
Uneven face marks Insert runout or spindle misalignment Inspect seats and tram; use a controlled finish pass
Tapered wall Peripheral tool deflection Reduce radial load and finish at stable depth
Exit burr Ductile material or unsupported edge Change exit direction, geometry, or add edge support
Chip recutting Poor evacuation Improve air/coolant direction and tool path

Design for Efficient Milling

Provide realistic internal radii, make critical shoulders accessible, avoid deep narrow walls where a shorter cutter could work after a design change, and distinguish cosmetic surfaces from precision datums. A CNC milling review can often combine facing and peripheral operations in one stable setup while protecting the relationships that matter.

Frequently Asked Questions

Is an end mill a peripheral cutter?

Yes when its outside flutes cut a side wall. Many end mills can also cut with their end teeth, so one tool may perform both types of engagement.

Which method gives a better finish?

Neither is universally better. The intended surface orientation, cutter condition, runout, rigidity, feeds, and tool path determine finish.

Can a face mill cut a shoulder?

Some face and shoulder mills can produce both a floor and a wall, but cutter geometry and lead angle determine whether a true 90-degree shoulder is possible.

Conclusion

Use face milling to efficiently establish broad planes and peripheral milling to control sides, shoulders, and profiles. The best process often combines both, with each tool selected around surface orientation, access, force direction, rigidity, and inspection requirements.

Related MTSPi Resources

Categories
Blog CNC Materials

Manual Milling: Process, Applications, Accuracy, and CNC Comparison

Manual milling remains valuable wherever a machinist needs direct control, quick setup, and immediate feedback. A skilled operator moves the table and spindle with handwheels or power feeds, reads the cut, and adjusts the process without first building a complete CNC program.

It is not a primitive substitute for automation. Used for the right work, a manual mill can be the fastest route to a repair, prototype, fixture detail, or one-off feature. The tradeoff is that repeatability and productivity depend heavily on the operator and the measuring plan.

What Is Manual Milling?

Manual milling removes material with a rotating multi-edge cutter while the operator controls motion along the machine axes. Most shop machines are vertical knee mills, although horizontal mills and bed-type machines are also used. The work is secured in a vise, on a fixture plate, or directly to the table.

Element Manual milling approach Engineering implication
Motion control Handwheels, levers, stops, and optional power feed Fast intervention but operator-dependent
Position reference Dials, digital readout, edge finder, indicators Requires deliberate datum control
Tool path Planned and executed by the machinist Ideal for simple, visible features
Repeatability Relies on setup, stops, and technique Best for low quantities
Change response Immediate at the machine Useful in development and repair

Core Machine Components

  • Spindle and head: hold and rotate the cutter; many vertical mills allow speed changes and head positioning.
  • Table and saddle: provide longitudinal and cross travel.
  • Knee or quill: supplies vertical positioning and controlled drilling or boring motion.
  • Vise and fixtures: locate the work while resisting cutting forces.
  • Digital readout: displays axis position and reduces dependence on dial counting.

A Practical Manual Milling Workflow

  1. Review the drawing. Identify datums, stock allowance, critical features, surface finish, and inspection points.
  2. Plan the setup. Choose stable reference faces and keep the work supported without obstructing tool access.
  3. Prepare stock. Saw oversize, remove burrs, and establish clean locating surfaces.
  4. Align the work. Indicate the vise or part, find an edge, and establish the coordinate origin.
  5. Select tooling and speed. Match cutter geometry, diameter, speed, feed, and coolant to the material.
  6. Rough then finish. Leave a controlled allowance before the final pass.
  7. Inspect in stages. Verify datums and critical dimensions before removing the setup.

Common Operations

Manual mills handle facing, slotting, side milling, drilling, countersinking, reaming, boring, chamfering, and simple contour work. An edge finder and digital readout make hole patterns practical, while a rotary table or dividing head extends the machine to arcs and indexed features.

Where Manual Milling Works Best

  • Repairing a damaged surface, keyway, or mounting pattern
  • Producing a single fixture bracket, soft jaw, stop, or gauge component
  • Making simple prototypes while dimensions are still changing
  • Adding a secondary feature to an existing part
  • Training machinists to understand chip formation, workholding, and datum control

Manual Milling vs CNC Milling

Decision factor Manual mill CNC mill
Quantity One-off and very small batches Repeated batches and production
Geometry Simple, open, operator-visible features Complex contours and coordinated motion
Setup investment Low programming overhead Programming, simulation, and proving required
Cycle consistency Varies with operator Highly repeatable after prove-out
Design changes Very quick for simple edits Program and documentation update
In-process attention Continuous operator involvement More automated once stable

Complex profiles, tight positional relationships, and repeated production generally favor CNC milling services. Manual work can still support CNC production by preparing fixtures, modifying soft jaws, or rescuing a simple urgent feature.

Accuracy and Surface Finish

A well-maintained machine in skilled hands can produce precise work, but capability must be proven rather than assumed. Backlash, spindle condition, table wear, thermal drift, tool deflection, and clamping force all matter. Approach critical coordinates consistently, use a finish allowance, and inspect from the same datums defined on the drawing.

Surface finish depends on cutter sharpness, spindle runout, tram, feed uniformity, rigidity, and chip evacuation. A power feed can improve consistency on long finishing passes.

Design and Quoting Guidance

Keep internal corners compatible with standard cutters, provide tool access, avoid unnecessarily deep narrow pockets, and specify tolerances only where function requires them. For a sourcing decision, compare total setup and inspection time rather than machine hourly rate alone. MTSPi can review the model through its machining service workflow and align requirements with its quality assurance process.

Frequently Asked Questions

Is manual milling obsolete?

No. It remains efficient for repairs, tooling, simple prototypes, and low-volume work.

Can a manual mill hold tight tolerances?

Yes within a verified process window, but the machine condition, operator, setup, measurement method, and part geometry determine the result.

When should a job move to CNC?

Move when coordinated geometry, repeat quantity, cycle consistency, or traceable process control outweighs programming and prove-out time.

Conclusion

Manual milling is strongest when adaptability matters more than automation. A sound datum plan, rigid setup, suitable cutter, staged inspection, and experienced operator turn it into a precise and economical production tool for the right scope.

Related MTSPi Resources

Categories
Blog CNC Machining Basics Industries & Applications

What Is a CNC Machine Used For? Applications, Parts, and Manufacturing Examples

Quick answer: A CNC machine is used to cut, drill, turn, mill, engrave, tap, and shape metal or plastic parts with computer-controlled motion. It is commonly used for prototypes, production parts, fixtures, housings, shafts, brackets, molds, tooling, and precision components.

Common Uses of CNC Machines

CNC machines are used anywhere a part needs repeatable dimensions, controlled surfaces, accurate holes, or consistent production quality. The same basic technology can make a single prototype, a replacement component, or a batch of production parts.

Use Typical parts Best machine route
Prototypes Test housings, brackets, plates, adapters, fixtures CNC milling or turning
Machinery components Shafts, bushings, mounts, plates, tooling blocks Milling, turning, drilling
Aerospace and robotics Lightweight brackets, structural parts, precision interfaces Milling and multi-axis machining
Medical and electronics Small housings, connectors, fixtures, instrument components Precision milling and inspection
Maintenance parts Custom spacers, repair parts, replacement pins, covers Turning, milling, fast turnaround machining

Why Manufacturers Use CNC Instead of Manual Machining

Manual machining depends heavily on operator control. CNC machining uses programmed motion, making it better for repeatability, complex geometry, documented setups, and consistent batches. Manual work still has value for simple repairs, but CNC is stronger when repeatable production or tight drawing control is needed.

What Materials Can CNC Machines Cut?

CNC machines can cut many machining materials, including aluminum, stainless steel, carbon steel, brass, copper, titanium, ABS, POM, nylon, acrylic, PC, and PEEK. Aluminum is common for prototypes and lightweight parts, while stainless steel is selected for strength and corrosion resistance.

Which CNC Process Fits Which Part?

Flat, block-like, pocketed, or bracket-style parts usually fit CNC milling. Round parts such as shafts, pins, spacers, threaded sleeves, and bushings usually fit CNC turning. Parts with both round and milled features may require combined operations.

Industries That Use CNC Machines

  • Automation equipment and robotics
  • Automotive and electric vehicle hardware
  • Aerospace prototypes and lightweight structural parts
  • Medical devices, test fixtures, and instrument components
  • Electronics enclosures, heat sinks, and connectors
  • Industrial machinery, packaging equipment, and tooling

How to Decide If CNC Is Right for Your Part

CNC is a strong choice when you need real material properties, accurate dimensions, functional testing, low-volume production, or a part that cannot be easily molded without tooling. If the design needs very organic geometry or internal channels, 3D printing may be worth comparing.

FAQ

Can a CNC machine make one part?

Yes. CNC machining is often used for one-off prototypes, custom replacement parts, and short-run production.

Can CNC machines make plastic parts?

Yes. CNC machining is common for ABS, POM, nylon, acrylic, PC, PEEK, and other engineering plastics.

What is the difference between CNC milling and CNC turning?

Milling uses rotating cutting tools against a fixed workpiece, while turning rotates the workpiece against cutting tools.

Are CNC machines used for mass production?

Yes, but the economics depend on part geometry, cycle time, fixture design, material, and quantity.

Need help choosing a machining route?

Send MTSPi your drawing, material, quantity, finish, and inspection requirements. We will review the part for manufacturability before quoting.

Contact MTSPi for a CNC machining quote

Practical Buyer Notes

When buyers ask what a CNC machine is used for, the real question is usually whether CNC is the right manufacturing route for a specific part. CNC is strongest when the part needs real engineering material, controlled dimensions, repeatable features, and faster development than mold tooling.

For sourcing decisions, separate prototype use from production use. A prototype may focus on fit and function, while a production order must also consider cycle time, fixture repeatability, inspection method, packaging, and long-term cost stability.

How to Evaluate This Topic on a Real Drawing

Decision point Recommended approach Why it matters
Prototype or production Use CNC for real-material prototypes and low-volume production Avoids tooling cost while keeping functional material properties
Part geometry Match flat parts to milling and round parts to turning The right route lowers setup time and improves accuracy
Assembly risk Mark mating faces, holes, threads, and datums These features usually decide whether the part works
Finish requirement Define cosmetic and protective finishes early Finishing can change appearance, lead time, and dimensions

Common Mistakes to Avoid

  • Treating CNC as one single process instead of choosing milling, turning, drilling, or multi-axis machining.
  • Asking for tight tolerances on every dimension instead of only functional features.
  • Choosing a material by name without checking strength, heat, corrosion, and finish needs.
  • Forgetting to define threads, inserts, cosmetic faces, and burr requirements.

Recommended MTSPi Review Workflow

For application-driven pages, MTSPi reviews the part by use case first, then chooses the machining route. This keeps the page useful for information searches and also helps real buyers understand the quoting path.

  1. Confirm the part function, operating environment, and assembly risk.
  2. Review material, process, tolerance, surface finish, and inspection requirements together.
  3. Separate critical features from general dimensions so cost is not wasted on non-functional details.
  4. Use related resources such as CNC materials, surface treatment, and quality assurance to complete the specification.
  5. Send the final drawing package to MTSPi for quote review before production.

What to Send for a Faster Quote

A faster quote needs more than a screenshot or rough size. The best input package explains what the part does, how it assembles, which features are critical, and what finish or inspection level is required.

  • 3D CAD file and 2D drawing with revision number.
  • Material grade or acceptable alternatives.
  • Quantity, delivery target, and whether samples are required first.
  • Critical dimensions, thread callouts, finish notes, and inspection requirements.
  • Application notes when the part is used in heat, moisture, wear, vibration, or visible assemblies.

Conclusion

A CNC machine is used to turn digital designs into accurate physical parts. The best results come from matching the part shape to the right machining route, choosing a suitable material, and defining the important tolerances clearly before production.

Categories
Blog Industries & Applications

Car Steering Components: System Parts, Function, and Manufacturing Notes

Steering components convert driver input into controlled wheel movement. A reliable steering system depends on links, joints, racks, shafts, housings, bearings, and brackets that keep motion smooth and predictable.

Steering racks, tie rods, universal joints, brackets, and housings need accurate machining because looseness, poor alignment, or weak material can affect vehicle response.

Quick Guide to Car Steering Components

Item Purpose Manufacturing Note
Steering shaft Transfers rotation from wheel to rack or box Concentricity and joint fit matter
Tie rod Connects steering rack to wheel knuckle Threads, ball joint seats, and corrosion protection matter
Rack housing Supports internal rack and pinion Bores and mounting surfaces need accuracy
Brackets Mount steering parts to chassis Strength and hole position are critical

Automotive Manufacturing Notes

Automotive components must balance load, vibration, material strength, corrosion resistance, assembly fit, and production repeatability. CNC machining is often used for brackets, housings, shafts, spacers, connectors, prototypes, and low-volume performance components.

  • Match the process to the material and geometry.
  • Confirm critical dimensions before quoting.
  • Plan finishing and inspection before production.
  • Use prototypes to validate fit when the assembly risk is high.

Common Applications

Car Steering Components is relevant for prototypes, custom components, fixtures, low-volume manufacturing, maintenance parts, and engineering projects where function, cost, and lead time must be balanced.

Cost Factors

Cost usually depends on setup time, material price, number of operations, tool access, tolerance requirements, surface finish, inspection depth, and batch quantity.

Design and Sourcing Notes

The safest design approach is to define the part’s function first, then assign tolerances only where they affect assembly, movement, sealing, safety, or long-term performance.

  • Avoid unnecessary tight tolerances on non-critical surfaces.
  • Keep internal corners, hole depths, wall thickness, and tool access realistic.
  • Call out cosmetic surfaces separately from functional surfaces.
  • Include material, finish, quantity, and inspection notes in the RFQ package.

Quality Checks That Matter

Quality control may include visual inspection, dimensional measurement, thread checks, gauge checks, flatness checks, runout checks, surface finish checks, or CMM inspection depending on the part’s risk and function.

Related MTSPi Resources

FAQ

What is the main consideration for car steering components?

The main consideration is whether the design, material, and process can meet the functional requirements without adding unnecessary cost or risk.

Can MTSPi help with custom parts for this topic?

Yes. MTSPi can review drawings, material requirements, tolerances, finishing, and inspection needs for custom CNC machined or related manufacturing parts.

What should I send for a quote?

Send 3D CAD, 2D drawings, material grade, quantity, surface finish requirements, tolerance notes, and any critical assembly information.

Categories
Blog CNC Milling & Turning

Plain Milling Explained: Process, Cutters, Uses, and Setup Tips

Plain milling, also called slab milling, is a milling operation used to create flat surfaces with a cutter whose axis runs parallel to the workpiece surface. It is a practical choice when a shop needs a broad face, datum surface, base plate, or shoulder to be made flat and consistent.

Although modern CNC milling services use many toolpaths, plain milling remains useful because it removes material efficiently and can produce reliable flatness when the machine, fixture, cutter, and feed settings are stable.

What Happens During Plain Milling

The workpiece is clamped to the machine table, and a cylindrical cutter removes material as the table feeds the part beneath it. Multiple teeth engage the workpiece, so chip load, cutter width, spindle speed, and rigidity all influence finish quality.

  • The cutter axis is parallel to the surface being cut.
  • The operation is often used for large flat faces and datum preparation.
  • Horizontal mills are common for heavy plain milling, while CNC machining centers may use related strategies for smaller work.
  • A finishing pass can improve surface roughness after rough stock removal.

Common Cutter Choices

Cutter Type Best Use Typical Result
Light-duty plain cutter Aluminum, brass, plastics, light finishing Smoother finish with lower cutting force
Heavy-duty plain cutter Steel plates, cast iron blocks, roughing Higher material removal but rougher surface
Carbide cutter Harder alloys and production jobs Better tool life and speed
HSS cutter General low-load work Lower cost and easier sharpening

Setup Steps That Matter

A successful plain milling operation starts before the spindle turns. The part must be clamped securely, the cutter must be aligned, and the operator should check that chips can clear the cut. Poor fixturing usually shows up as chatter, tapered surfaces, or inconsistent finish.

  • Choose cutter width based on the machined face and available spindle power.
  • Set a conservative depth of cut when machining hard materials.
  • Use coolant or air blast when chips build up around the cutter.
  • Measure the first part before continuing with the batch.

Plain Milling Compared With Other Milling Operations

Operation Tool Orientation Typical Use
Plain milling Cutter axis parallel to surface Flat surfaces, broad faces, base planes
Face milling Cutter axis perpendicular to surface Fast facing on vertical machining centers
End milling Tool cuts with end and side edges Slots, pockets, profiles, contours
Profile milling Tool follows a 2D or 3D path Shaped edges and complex surfaces

Materials and Tolerance Expectations

Aluminum and brass are generally easier to mill because chips clear well and cutting forces are moderate. Stainless steel and titanium require more attention to heat, tool coating, and feed. For precision work, combine stable milling with the inspection process needed for the part drawing.

Related MTSPi Resources

FAQ

Is plain milling the same as face milling?

No. Plain milling uses a cutter axis parallel to the surface, while face milling normally uses a cutter axis perpendicular to the surface.

What causes chatter in plain milling?

Loose fixturing, excessive depth of cut, poor cutter condition, long overhang, or aggressive feed can cause vibration.

Can plain milling be used for prototypes?

Yes, especially when a prototype needs accurate flat reference faces or squared stock.

Categories
Guides

What Is a CNC System? Key Components for Machining Buyers

A CNC system is the coordinated group of control, drives, spindle, machine structure, tooling, workholding, programming, and inspection routines that turns a drawing into a repeatable machined part. For MTSPi CNC and MEITESI customers, the best decision starts with the drawing, the function of the part, expected quantity, finishing plan, and the inspection evidence needed before shipment.

This guide explains cnc system from a buyer’s point of view: what to check, which details affect cost, how tolerances and finish requirements change the process, and what information helps a machining team quote accurately without repeated clarification.

Quick Answer

For most projects, cnc system should be evaluated by function first. A part that must hold a bearing, resist corrosion, slide against another surface, accept anodizing, or support repeated assembly loads will need different decisions even when two drawings look similar. The practical answer is to match material, process, tolerance, finish, and inspection plan before confirming a supplier.

Buyers can shorten quotation time by sharing the 2D drawing, 3D model, material grade, finish requirement, quantity range, critical dimensions, and any assembly notes. When the part is still under development, early drawing review can prevent unnecessary tight dimensions and reduce avoidable rework.

Key Takeaways

  • Do not choose a process only by name; evaluate how the part will be held, cut, finished, inspected, packed, and repeated.
  • Material grade matters because machinability, stress, heat behavior, corrosion resistance, and finish response can change the result.
  • Unclear drawings create cost and delivery risk; identify critical dimensions, threads, datums, and finish zones early.
  • Functional surfaces need inspection methods that match the risk, such as CMM reports, thread gauges, pin gauges, surface roughness checks, or runout readings.
  • Finish planning should happen before machining because polishing, blasting, anodizing, passivation, and deburring can alter edges or dimensions.

What Buyers Usually Need to Know About Cnc System

The first question is not whether a shop can cut the material; it is whether the planned method supports the part’s duty. For CNC system components, the drawing should show which surfaces are cosmetic, which are mating surfaces, and which dimensions are only reference dimensions. A supplier cannot make a stable plan from a model alone when the real risk is hidden in an assembly fit.

If the part has thin walls, deep pockets, close hole positions, or long slender features, workholding and sequence become as important as the machine itself. MTSPi CNC normally reviews these details through machining capability review so the process can be matched to the part rather than forced into a generic route.

Quantity also changes the decision. A prototype may justify flexible fixturing and extra inspection, while repeat production may need dedicated soft jaws, custom gauges, or revised tool access. For parts that will move from sample approval to short production, prototype machining checks helps keep the first samples close to the later batch method.

Buyer question Why it matters Practical check
What surface is function-critical? A decorative surface and a sealing surface need different machining and finish control. Mark critical surfaces on the drawing and define acceptable tool marks or roughness.
Which dimension controls assembly? Many drawings contain tight values that do not affect function, while a hidden bore or slot may be critical. Use datums, tolerance notes, and inspection callouts instead of broad comments.
Will the part be finished after machining? Polishing, blasting, anodizing, and coating can change appearance, edges, and sometimes dimensions. Discuss the finish route before releasing the order.
Is the first order a prototype or a repeat batch? The best route may differ when the job moves from one sample to hundreds of pieces. Ask for a process note that can scale without changing critical geometry.

Material and Process Considerations

Material choice should begin with the environment and load. metal parts, plastic parts, prototype parts can all be suitable in the right context, but they do not behave the same under cutting pressure, heat, finishing, or long-term use. A buyer should ask whether the grade is selected for strength, corrosion behavior, electrical behavior, weight, wear, or simply availability.

When metal features are complex, a broader review of machining behavior, finish options, and inspection concerns is useful. Plastic parts need a different review because clamping pressure, heat, and burr behavior can matter more than raw strength. The material note should include grade, temper where relevant, certification needs, and any substitute grade allowed by the engineering team.

Process planning then follows the geometry. Flat pockets and hole patterns may suit 3-axis milling. Angled faces and multiple datum relationships may suit multi-axis work. Shafts, bushings, threaded pins, and sleeves are usually better reviewed as turning work. The process should reduce risk instead of simply matching the first machine that is available.

Material or process factor Good sign Risk sign
Grade selection Grade is linked to load, finish, corrosion exposure, or weight target. Grade is selected only because it was used on an older drawing.
Workholding plan Supplier explains datum surfaces, clamping marks, and sequence. Supplier only confirms that the machine can hold the size.
Tool access Corners, pockets, and holes are checked against cutter diameter and depth. Deep features are quoted without any discussion of tool reach.
Finishing sequence Finish is considered before final dimensions are locked. Finish is treated as a separate step after all machining decisions are fixed.

Tolerance, Surface Finish, and Quality Checks

Tolerance is a cost driver because it changes machining time, inspection time, fixture design, tool wear control, and sometimes scrap risk. A buyer does not need every feature held to the tightest possible value. The more practical approach is to separate functional dimensions from noncritical surfaces and define what must be measured on the final report.

Surface finish should also be described in measurable or reviewable terms. A note such as ‘smooth’ is rarely enough. Define Ra values for functional surfaces, cosmetic expectations for visible faces, acceptable edge break, and any area that must be protected from clamp marks. For visible or handled parts, multi-axis machining capacity is often worth confirming before machining starts.

Inspection should match the failure mode. Hole diameter may need pin gauges or bore gauges. Position may need CMM checking. Threads may need go/no-go gauges. A turned shaft may need runout and roundness checks. MTSPi CNC can align these requirements through drawing review before quotation so the report supports the part’s actual use.

Requirement Typical buyer note Recommended evidence
Critical bore Diameter, depth, and position must support assembly. Bore gauge or CMM result with datum reference.
Threaded feature Thread class and engagement length should be clear. Go/no-go gauge confirmation and thread depth check.
Cosmetic face Visible surface cannot show heavy cutter marks or dents. Photo approval, finish sample, or agreed visual standard.
Rotating surface Axis alignment affects bearing or seal performance. Runout reading, roundness check, or fixture-based measurement.

Cost Factors and Quotation Details

Cost is shaped by more than machine time. Material availability, rough stock size, setup count, tool reach, tolerance, finish, inspection, packaging, and communication time all influence the quote. If two quotations differ greatly, the reason may be hidden in assumptions about tolerance, finish, or inspection rather than in hourly rate alone.

A useful RFQ package should include the model, drawing, quantity breaks, material grade, finish, target lead time, and acceptance criteria. When a drawing is incomplete, buyers can request a controlled assumption list. This is where drawing review before quotation helps: the supplier and buyer can agree on what will be made before price and schedule are locked.

Cost reduction should not mean removing every requirement. It often means relaxing nonfunctional dimensions, allowing a larger internal radius, changing a finish zone, selecting a more stable stock form, or moving from a difficult setup to a cleaner datum plan. MTSPi CNC uses cost reduction checks to identify those changes without weakening the part’s purpose.

Cost driver Why it increases price Possible buyer action
Tight tolerance everywhere Requires slower cutting, extra measurement, and more scrap control. Apply tight values only where assembly or performance requires them.
Deep narrow pockets Needs long tools, light passes, and more chatter control. Increase corner radius or review pocket depth if the design allows.
Cosmetic finish after machining Adds handling, protection, and separate inspection steps. Define visible zones and hidden zones separately.
Small urgent batch Setup and programming are spread over fewer parts. Combine similar parts or approve realistic quantity breaks.

Design Tips for Better Machining Results

Good design for machining is not about making the part simple; it is about making the important features reliable. Internal corners should allow realistic cutter radii. Thin walls need enough stiffness during cutting. Deep holes need diameter-to-depth review. Threads need runout clearance and enough engagement. Text, logos, and cosmetic grooves should not interfere with datums or sealing faces.

When a part has multiple mating faces, a datum plan prevents confusion. The drawing should show which face sets the coordinate system, which hole pattern controls assembly, and which surfaces can accept machining variation. For early-stage designs, prototype review should teach useful lessons before production quantities are ordered.

Buyers should also think about handling after machining. Sharp edges may be unsafe or may chip during shipping, but excessive deburring can affect fit. A controlled edge break note is better than a broad request. For small components, trays, sleeves, or separated packing can be more important than many buyers expect.

Common Buyer Mistakes to Avoid

  • Sending a 3D model without a drawing for threads, tolerances, finish, or inspection points.
  • Specifying a premium material without checking whether a standard grade meets the real requirement.
  • Using very tight tolerances on nonfunctional surfaces while leaving important mating features unclear.
  • Treating polishing, anodizing, blasting, or deburring as an afterthought.
  • Comparing quotes without confirming the same material, finish, inspection, packing, and delivery assumptions.
  • Approving a prototype without recording which changes are needed before repeat production.

These mistakes are common because buyers are often under pressure to get a price quickly. A better habit is to send the supplier a short function note with the drawing. That note does not need to be long; it only needs to explain what the part touches, what may fail, what finish is visible, and what the buyer will inspect when the parts arrive.

Supplier Selection Checklist

A suitable supplier should ask useful questions before accepting the order. For CNC system components, the questions should focus on geometry risk, material grade, finish behavior, and inspection evidence. A fast answer can be helpful, but a fast answer that ignores unclear requirements may create problems later.

Look for a team that can explain the process route in plain manufacturing terms: stock preparation, roughing, finishing, deburring, surface treatment, inspection, and packing. MTSPi CNC treats this as part of the purchasing conversation, especially when service scope must connect with material and finish requirements in the same order.

Supplier check What to ask What a strong answer sounds like
Drawing review Which dimensions or notes need clarification? The supplier names exact features, not only a general concern.
Process route How many setups and which datum surfaces are planned? The answer mentions fixture logic and inspection access.
Finish control How will visible surfaces be protected? The supplier explains handling, masking, and acceptance limits.
Inspection report Which features will be measured and how? The method matches the feature, tolerance, and drawing datum.

Specification Sheet to Request

Before placing an order, request a simple specification sheet that records the assumptions behind the quote. It should include material grade, stock type, finish, tolerance standard, special inspection, packaging, delivery date, and revision level. This document reduces the chance of a mismatch between purchasing, engineering, and production.

For repeat work, the sheet should also record approved samples, fixture notes when available, and any part-specific handling rules. If the first batch required manual polishing, special burr removal, or a nonstandard inspection method, that detail should travel with the next purchase order instead of living only in email history.

Item Include this detail Buyer benefit
Revision Drawing number, model version, and change note. Prevents old geometry from being quoted or produced.
Material Grade, temper, certificate need, and substitute permission. Avoids hidden changes in performance or finish response.
Finish Process, color, texture, protected areas, and visual standard. Reduces cosmetic disputes after shipment.
Inspection Measured features, report type, gauge method, and sampling level. Keeps acceptance aligned with function.

Specific Notes for What Is a CNC System? Key Components for Machining Buyers

For this topic, the biggest risk is assuming that one familiar manufacturing answer fits every part. What Is a CNC System? Key Components for Machining Buyers requires a practical check of geometry, quantity, material behavior, finish target, and inspection method. The buyer should decide which requirement is fixed and which requirement can be adjusted if the supplier identifies a better route.

If the design is still flexible, review manufacturability before releasing final drawings. If the design is already frozen, make the acceptance criteria clearer instead of leaving the supplier to guess. This is especially important when a part has thin walls, threaded features, cosmetic faces, sealed surfaces, sliding contact, or a close relationship with other components.

A short note about the part’s working position, mating components, expected handling, and failure concern can be more useful than a long email with no priority. It helps the machining team protect the surfaces that matter and avoid spending time on details that do not affect use.

MTSPi CNC / MEITESI can support this type of project by checking drawing details, material options, machining sequence, finish compatibility, and inspection needs before production. The goal is not to add unnecessary complexity; it is to make sure the ordered parts match the real assembly requirement when they arrive.

Conclusion

What Is a CNC System? Key Components for Machining Buyers is best handled as a complete manufacturing decision rather than a narrow process label. Buyers should define the part function, select a suitable material, confirm the machining route, control finish expectations, and ask for inspection evidence that matches the drawing risk. With clear information and practical supplier questions, MTSPi CNC / MEITESI can help turn a drawing into parts that are easier to quote, easier to inspect, and more reliable in use.

FAQ

What information should I send for cnc system?

Send the 3D model, 2D drawing, material grade, quantity, finish, critical dimensions, thread notes, target delivery date, and any assembly concerns. Photos of mating parts or old samples can also help when the drawing does not tell the full story.

Should I choose the tightest possible tolerance?

No. Tight values should be used where they protect fit, movement, sealing, or alignment. Noncritical surfaces can often use standard tolerances, which helps reduce cost and delivery risk.

Can the same part be prototyped and then produced in low volume?

Yes, but the prototype route should consider later production. If the prototype uses a very different fixture or finish method, record that difference before approving the next batch.

How do I avoid finish problems on visible parts?

Define cosmetic faces, acceptable tool marks, edge break, color requirements, and packaging protection before machining starts. A sample or photo standard is useful for repeat orders.

Why do suppliers ask so many questions before quoting?

Good questions reduce assumptions. Material, tolerance, finish, inspection, and packing choices can change both price and outcome, so clarification protects the buyer as well as the supplier.

Categories
Guides

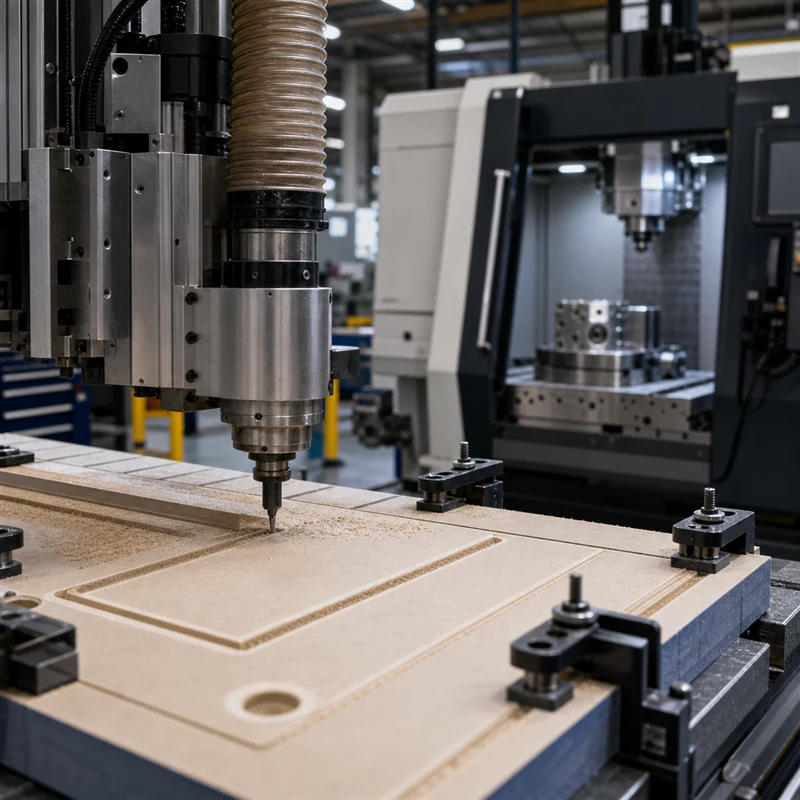

What Is a CNC Router Machine and How Is It Different from CNC Milling?

A CNC router machine is useful for sheet materials and broad profiles, while CNC milling is usually chosen when the buyer needs tighter dimensions, stronger workholding, metal cutting, or precision features. For MTSPi CNC and MEITESI customers, the best decision starts with the drawing, the function of the part, expected quantity, finishing plan, and the inspection evidence needed before shipment.

This guide explains cnc router machine from a buyer’s point of view: what to check, which details affect cost, how tolerances and finish requirements change the process, and what information helps a machining team quote accurately without repeated clarification.

Quick Answer

For most projects, cnc router machine should be evaluated by function first. A part that must hold a bearing, resist corrosion, slide against another surface, accept anodizing, or support repeated assembly loads will need different decisions even when two drawings look similar. The practical answer is to match material, process, tolerance, finish, and inspection plan before confirming a supplier.

Buyers can shorten quotation time by sharing the 2D drawing, 3D model, material grade, finish requirement, quantity range, critical dimensions, and any assembly notes. When the part is still under development, early drawing review can prevent unnecessary tight dimensions and reduce avoidable rework.

Key Takeaways

  • Do not choose a process only by name; evaluate how the part will be held, cut, finished, inspected, packed, and repeated.
  • Material grade matters because machinability, stress, heat behavior, corrosion resistance, and finish response can change the result.
  • Unclear drawings create cost and delivery risk; identify critical dimensions, threads, datums, and finish zones early.
  • Functional surfaces need inspection methods that match the risk, such as CMM reports, thread gauges, pin gauges, surface roughness checks, or runout readings.
  • Finish planning should happen before machining because polishing, blasting, anodizing, passivation, and deburring can alter edges or dimensions.

What Buyers Usually Need to Know About Cnc Router Machine

The first question is not whether a shop can cut the material; it is whether the planned method supports the part’s duty. For router versus milling, the drawing should show which surfaces are cosmetic, which are mating surfaces, and which dimensions are only reference dimensions. A supplier cannot make a stable plan from a model alone when the real risk is hidden in an assembly fit.

If the part has thin walls, deep pockets, close hole positions, or long slender features, workholding and sequence become as important as the machine itself. MTSPi CNC normally reviews these details through CNC milling support so the process can be matched to the part rather than forced into a generic route.

Quantity also changes the decision. A prototype may justify flexible fixturing and extra inspection, while repeat production may need dedicated soft jaws, custom gauges, or revised tool access. For parts that will move from sample approval to short production, ABS prototype machining helps keep the first samples close to the later batch method.

Buyer question Why it matters Practical check
What surface is function-critical? A decorative surface and a sealing surface need different machining and finish control. Mark critical surfaces on the drawing and define acceptable tool marks or roughness.
Which dimension controls assembly? Many drawings contain tight values that do not affect function, while a hidden bore or slot may be critical. Use datums, tolerance notes, and inspection callouts instead of broad comments.
Will the part be finished after machining? Polishing, blasting, anodizing, and coating can change appearance, edges, and sometimes dimensions. Discuss the finish route before releasing the order.
Is the first order a prototype or a repeat batch? The best route may differ when the job moves from one sample to hundreds of pieces. Ask for a process note that can scale without changing critical geometry.

Material and Process Considerations

Material choice should begin with the environment and load. acrylic, ABS, aluminum plate can all be suitable in the right context, but they do not behave the same under cutting pressure, heat, finishing, or long-term use. A buyer should ask whether the grade is selected for strength, corrosion behavior, electrical behavior, weight, wear, or simply availability.

When metal features are complex, a broader review of machining behavior, finish options, and inspection concerns is useful. Plastic parts need a different review because clamping pressure, heat, and burr behavior can matter more than raw strength. The material note should include grade, temper where relevant, certification needs, and any substitute grade allowed by the engineering team.

Process planning then follows the geometry. Flat pockets and hole patterns may suit 3-axis milling. Angled faces and multiple datum relationships may suit multi-axis work. Shafts, bushings, threaded pins, and sleeves are usually better reviewed as turning work. The process should reduce risk instead of simply matching the first machine that is available.

Material or process factor Good sign Risk sign
Grade selection Grade is linked to load, finish, corrosion exposure, or weight target. Grade is selected only because it was used on an older drawing.
Workholding plan Supplier explains datum surfaces, clamping marks, and sequence. Supplier only confirms that the machine can hold the size.
Tool access Corners, pockets, and holes are checked against cutter diameter and depth. Deep features are quoted without any discussion of tool reach.
Finishing sequence Finish is considered before final dimensions are locked. Finish is treated as a separate step after all machining decisions are fixed.

Tolerance, Surface Finish, and Quality Checks

Tolerance is a cost driver because it changes machining time, inspection time, fixture design, tool wear control, and sometimes scrap risk. A buyer does not need every feature held to the tightest possible value. The more practical approach is to separate functional dimensions from noncritical surfaces and define what must be measured on the final report.

Surface finish should also be described in measurable or reviewable terms. A note such as ‘smooth’ is rarely enough. Define Ra values for functional surfaces, cosmetic expectations for visible faces, acceptable edge break, and any area that must be protected from clamp marks. For visible or handled parts, acrylic machining requirements is often worth confirming before machining starts.

Inspection should match the failure mode. Hole diameter may need pin gauges or bore gauges. Position may need CMM checking. Threads may need go/no-go gauges. A turned shaft may need runout and roundness checks. MTSPi CNC can align these requirements through inspection and reporting workflow so the report supports the part’s actual use.

Requirement Typical buyer note Recommended evidence
Critical bore Diameter, depth, and position must support assembly. Bore gauge or CMM result with datum reference.
Threaded feature Thread class and engagement length should be clear. Go/no-go gauge confirmation and thread depth check.
Cosmetic face Visible surface cannot show heavy cutter marks or dents. Photo approval, finish sample, or agreed visual standard.
Rotating surface Axis alignment affects bearing or seal performance. Runout reading, roundness check, or fixture-based measurement.

Cost Factors and Quotation Details

Cost is shaped by more than machine time. Material availability, rough stock size, setup count, tool reach, tolerance, finish, inspection, packaging, and communication time all influence the quote. If two quotations differ greatly, the reason may be hidden in assumptions about tolerance, finish, or inspection rather than in hourly rate alone.

A useful RFQ package should include the model, drawing, quantity breaks, material grade, finish, target lead time, and acceptance criteria. When a drawing is incomplete, buyers can request a controlled assumption list. This is where drawing review before quotation helps: the supplier and buyer can agree on what will be made before price and schedule are locked.

Cost reduction should not mean removing every requirement. It often means relaxing nonfunctional dimensions, allowing a larger internal radius, changing a finish zone, selecting a more stable stock form, or moving from a difficult setup to a cleaner datum plan. MTSPi CNC uses cost reduction checks to identify those changes without weakening the part’s purpose.

Cost driver Why it increases price Possible buyer action
Tight tolerance everywhere Requires slower cutting, extra measurement, and more scrap control. Apply tight values only where assembly or performance requires them.
Deep narrow pockets Needs long tools, light passes, and more chatter control. Increase corner radius or review pocket depth if the design allows.
Cosmetic finish after machining Adds handling, protection, and separate inspection steps. Define visible zones and hidden zones separately.
Small urgent batch Setup and programming are spread over fewer parts. Combine similar parts or approve realistic quantity breaks.

Design Tips for Better Machining Results

Good design for machining is not about making the part simple; it is about making the important features reliable. Internal corners should allow realistic cutter radii. Thin walls need enough stiffness during cutting. Deep holes need diameter-to-depth review. Threads need runout clearance and enough engagement. Text, logos, and cosmetic grooves should not interfere with datums or sealing faces.

When a part has multiple mating faces, a datum plan prevents confusion. The drawing should show which face sets the coordinate system, which hole pattern controls assembly, and which surfaces can accept machining variation. For early-stage designs, prototype review should teach useful lessons before production quantities are ordered.

Buyers should also think about handling after machining. Sharp edges may be unsafe or may chip during shipping, but excessive deburring can affect fit. A controlled edge break note is better than a broad request. For small components, trays, sleeves, or separated packing can be more important than many buyers expect.

Common Buyer Mistakes to Avoid

  • Sending a 3D model without a drawing for threads, tolerances, finish, or inspection points.
  • Specifying a premium material without checking whether a standard grade meets the real requirement.
  • Using very tight tolerances on nonfunctional surfaces while leaving important mating features unclear.
  • Treating polishing, anodizing, blasting, or deburring as an afterthought.
  • Comparing quotes without confirming the same material, finish, inspection, packing, and delivery assumptions.
  • Approving a prototype without recording which changes are needed before repeat production.

These mistakes are common because buyers are often under pressure to get a price quickly. A better habit is to send the supplier a short function note with the drawing. That note does not need to be long; it only needs to explain what the part touches, what may fail, what finish is visible, and what the buyer will inspect when the parts arrive.

Supplier Selection Checklist

A suitable supplier should ask useful questions before accepting the order. For router versus milling, the questions should focus on geometry risk, material grade, finish behavior, and inspection evidence. A fast answer can be helpful, but a fast answer that ignores unclear requirements may create problems later.

Look for a team that can explain the process route in plain manufacturing terms: stock preparation, roughing, finishing, deburring, surface treatment, inspection, and packing. MTSPi CNC treats this as part of the purchasing conversation, especially when service scope must connect with material and finish requirements in the same order.

Supplier check What to ask What a strong answer sounds like
Drawing review Which dimensions or notes need clarification? The supplier names exact features, not only a general concern.
Process route How many setups and which datum surfaces are planned? The answer mentions fixture logic and inspection access.
Finish control How will visible surfaces be protected? The supplier explains handling, masking, and acceptance limits.
Inspection report Which features will be measured and how? The method matches the feature, tolerance, and drawing datum.

Specification Sheet to Request

Before placing an order, request a simple specification sheet that records the assumptions behind the quote. It should include material grade, stock type, finish, tolerance standard, special inspection, packaging, delivery date, and revision level. This document reduces the chance of a mismatch between purchasing, engineering, and production.

For repeat work, the sheet should also record approved samples, fixture notes when available, and any part-specific handling rules. If the first batch required manual polishing, special burr removal, or a nonstandard inspection method, that detail should travel with the next purchase order instead of living only in email history.

Item Include this detail Buyer benefit
Revision Drawing number, model version, and change note. Prevents old geometry from being quoted or produced.
Material Grade, temper, certificate need, and substitute permission. Avoids hidden changes in performance or finish response.
Finish Process, color, texture, protected areas, and visual standard. Reduces cosmetic disputes after shipment.
Inspection Measured features, report type, gauge method, and sampling level. Keeps acceptance aligned with function.

Specific Notes for What Is a CNC Router Machine and How Is It Different from CNC Milling?

For this topic, the biggest risk is assuming that one familiar manufacturing answer fits every part. What Is a CNC Router Machine and How Is It Different from CNC Milling? requires a practical check of geometry, quantity, material behavior, finish target, and inspection method. The buyer should decide which requirement is fixed and which requirement can be adjusted if the supplier identifies a better route.

If the design is still flexible, review manufacturability before releasing final drawings. If the design is already frozen, make the acceptance criteria clearer instead of leaving the supplier to guess. This is especially important when a part has thin walls, threaded features, cosmetic faces, sealed surfaces, sliding contact, or a close relationship with other components.

A short note about the part’s working position, mating components, expected handling, and failure concern can be more useful than a long email with no priority. It helps the machining team protect the surfaces that matter and avoid spending time on details that do not affect use.

MTSPi CNC / MEITESI can support this type of project by checking drawing details, material options, machining sequence, finish compatibility, and inspection needs before production. The goal is not to add unnecessary complexity; it is to make sure the ordered parts match the real assembly requirement when they arrive.

Conclusion

What Is a CNC Router Machine and How Is It Different from CNC Milling? is best handled as a complete manufacturing decision rather than a narrow process label. Buyers should define the part function, select a suitable material, confirm the machining route, control finish expectations, and ask for inspection evidence that matches the drawing risk. With clear information and practical supplier questions, MTSPi CNC / MEITESI can help turn a drawing into parts that are easier to quote, easier to inspect, and more reliable in use.

FAQ

What information should I send for cnc router machine?

Send the 3D model, 2D drawing, material grade, quantity, finish, critical dimensions, thread notes, target delivery date, and any assembly concerns. Photos of mating parts or old samples can also help when the drawing does not tell the full story.

Should I choose the tightest possible tolerance?

No. Tight values should be used where they protect fit, movement, sealing, or alignment. Noncritical surfaces can often use standard tolerances, which helps reduce cost and delivery risk.

Can the same part be prototyped and then produced in low volume?

Yes, but the prototype route should consider later production. If the prototype uses a very different fixture or finish method, record that difference before approving the next batch.

How do I avoid finish problems on visible parts?

Define cosmetic faces, acceptable tool marks, edge break, color requirements, and packaging protection before machining starts. A sample or photo standard is useful for repeat orders.

Why do suppliers ask so many questions before quoting?

Good questions reduce assumptions. Material, tolerance, finish, inspection, and packing choices can change both price and outcome, so clarification protects the buyer as well as the supplier.

Categories
Guides

Advantages of 5 Axis CNC Machining for Complex CNC Parts

The advantages of 5 axis CNC machining become clear when a part has angled faces, curved surfaces, multiple setups, tight positional relationships, or surfaces that are difficult to reach with standard milling. For MTSPi CNC and MEITESI customers, the best decision starts with the drawing, the function of the part, expected quantity, finishing plan, and the inspection evidence needed before shipment.

This guide explains advantages of 5 axis cnc machining from a buyer’s point of view: what to check, which details affect cost, how tolerances and finish requirements change the process, and what information helps a machining team quote accurately without repeated clarification.

Quick Answer

For most projects, advantages of 5 axis cnc machining should be evaluated by function first. A part that must hold a bearing, resist corrosion, slide against another surface, accept anodizing, or support repeated assembly loads will need different decisions even when two drawings look similar. The practical answer is to match material, process, tolerance, finish, and inspection plan before confirming a supplier.

Buyers can shorten quotation time by sharing the 2D drawing, 3D model, material grade, finish requirement, quantity range, critical dimensions, and any assembly notes. When the part is still under development, early drawing review can prevent unnecessary tight dimensions and reduce avoidable rework.

Key Takeaways

  • Do not choose a process only by name; evaluate how the part will be held, cut, finished, inspected, packed, and repeated.
  • Material grade matters because machinability, stress, heat behavior, corrosion resistance, and finish response can change the result.
  • Unclear drawings create cost and delivery risk; identify critical dimensions, threads, datums, and finish zones early.
  • Functional surfaces need inspection methods that match the risk, such as CMM reports, thread gauges, pin gauges, surface roughness checks, or runout readings.
  • Finish planning should happen before machining because polishing, blasting, anodizing, passivation, and deburring can alter edges or dimensions.

What Buyers Usually Need to Know About Advantages Of 5 Axis Cnc Machining

The first question is not whether a shop can cut the material; it is whether the planned method supports the part’s duty. For 5-axis machining advantages, the drawing should show which surfaces are cosmetic, which are mating surfaces, and which dimensions are only reference dimensions. A supplier cannot make a stable plan from a model alone when the real risk is hidden in an assembly fit.

If the part has thin walls, deep pockets, close hole positions, or long slender features, workholding and sequence become as important as the machine itself. MTSPi CNC normally reviews these details through multi-axis machining capacity so the process can be matched to the part rather than forced into a generic route.

Quantity also changes the decision. A prototype may justify flexible fixturing and extra inspection, while repeat production may need dedicated soft jaws, custom gauges, or revised tool access. For parts that will move from sample approval to short production, inspection and reporting workflow helps keep the first samples close to the later batch method.

Buyer question Why it matters Practical check
What surface is function-critical? A decorative surface and a sealing surface need different machining and finish control. Mark critical surfaces on the drawing and define acceptable tool marks or roughness.
Which dimension controls assembly? Many drawings contain tight values that do not affect function, while a hidden bore or slot may be critical. Use datums, tolerance notes, and inspection callouts instead of broad comments.
Will the part be finished after machining? Polishing, blasting, anodizing, and coating can change appearance, edges, and sometimes dimensions. Discuss the finish route before releasing the order.
Is the first order a prototype or a repeat batch? The best route may differ when the job moves from one sample to hundreds of pieces. Ask for a process note that can scale without changing critical geometry.

Material and Process Considerations

Material choice should begin with the environment and load. 6061 aluminum, 7075 aluminum, stainless steel can all be suitable in the right context, but they do not behave the same under cutting pressure, heat, finishing, or long-term use. A buyer should ask whether the grade is selected for strength, corrosion behavior, electrical behavior, weight, wear, or simply availability.

When metal features are complex, a broader review of machining behavior, finish options, and inspection concerns is useful. Plastic parts need a different review because clamping pressure, heat, and burr behavior can matter more than raw strength. The material note should include grade, temper where relevant, certification needs, and any substitute grade allowed by the engineering team.

Process planning then follows the geometry. Flat pockets and hole patterns may suit 3-axis milling. Angled faces and multiple datum relationships may suit multi-axis work. Shafts, bushings, threaded pins, and sleeves are usually better reviewed as turning work. The process should reduce risk instead of simply matching the first machine that is available.

Material or process factor Good sign Risk sign
Grade selection Grade is linked to load, finish, corrosion exposure, or weight target. Grade is selected only because it was used on an older drawing.
Workholding plan Supplier explains datum surfaces, clamping marks, and sequence. Supplier only confirms that the machine can hold the size.
Tool access Corners, pockets, and holes are checked against cutter diameter and depth. Deep features are quoted without any discussion of tool reach.
Finishing sequence Finish is considered before final dimensions are locked. Finish is treated as a separate step after all machining decisions are fixed.

Tolerance, Surface Finish, and Quality Checks

Tolerance is a cost driver because it changes machining time, inspection time, fixture design, tool wear control, and sometimes scrap risk. A buyer does not need every feature held to the tightest possible value. The more practical approach is to separate functional dimensions from noncritical surfaces and define what must be measured on the final report.

Surface finish should also be described in measurable or reviewable terms. A note such as ‘smooth’ is rarely enough. Define Ra values for functional surfaces, cosmetic expectations for visible faces, acceptable edge break, and any area that must be protected from clamp marks. For visible or handled parts, prototype machining checks is often worth confirming before machining starts.

Inspection should match the failure mode. Hole diameter may need pin gauges or bore gauges. Position may need CMM checking. Threads may need go/no-go gauges. A turned shaft may need runout and roundness checks. MTSPi CNC can align these requirements through machining quality inspection so the report supports the part’s actual use.

Requirement Typical buyer note Recommended evidence
Critical bore Diameter, depth, and position must support assembly. Bore gauge or CMM result with datum reference.
Threaded feature Thread class and engagement length should be clear. Go/no-go gauge confirmation and thread depth check.
Cosmetic face Visible surface cannot show heavy cutter marks or dents. Photo approval, finish sample, or agreed visual standard.
Rotating surface Axis alignment affects bearing or seal performance. Runout reading, roundness check, or fixture-based measurement.

Cost Factors and Quotation Details

Cost is shaped by more than machine time. Material availability, rough stock size, setup count, tool reach, tolerance, finish, inspection, packaging, and communication time all influence the quote. If two quotations differ greatly, the reason may be hidden in assumptions about tolerance, finish, or inspection rather than in hourly rate alone.

A useful RFQ package should include the model, drawing, quantity breaks, material grade, finish, target lead time, and acceptance criteria. When a drawing is incomplete, buyers can request a controlled assumption list. This is where drawing review before quotation helps: the supplier and buyer can agree on what will be made before price and schedule are locked.

Cost reduction should not mean removing every requirement. It often means relaxing nonfunctional dimensions, allowing a larger internal radius, changing a finish zone, selecting a more stable stock form, or moving from a difficult setup to a cleaner datum plan. MTSPi CNC uses cost reduction checks to identify those changes without weakening the part’s purpose.

Cost driver Why it increases price Possible buyer action
Tight tolerance everywhere Requires slower cutting, extra measurement, and more scrap control. Apply tight values only where assembly or performance requires them.
Deep narrow pockets Needs long tools, light passes, and more chatter control. Increase corner radius or review pocket depth if the design allows.
Cosmetic finish after machining Adds handling, protection, and separate inspection steps. Define visible zones and hidden zones separately.
Small urgent batch Setup and programming are spread over fewer parts. Combine similar parts or approve realistic quantity breaks.

Design Tips for Better Machining Results

Good design for machining is not about making the part simple; it is about making the important features reliable. Internal corners should allow realistic cutter radii. Thin walls need enough stiffness during cutting. Deep holes need diameter-to-depth review. Threads need runout clearance and enough engagement. Text, logos, and cosmetic grooves should not interfere with datums or sealing faces.

When a part has multiple mating faces, a datum plan prevents confusion. The drawing should show which face sets the coordinate system, which hole pattern controls assembly, and which surfaces can accept machining variation. For early-stage designs, prototype review should teach useful lessons before production quantities are ordered.

Buyers should also think about handling after machining. Sharp edges may be unsafe or may chip during shipping, but excessive deburring can affect fit. A controlled edge break note is better than a broad request. For small components, trays, sleeves, or separated packing can be more important than many buyers expect.

Common Buyer Mistakes to Avoid

  • Sending a 3D model without a drawing for threads, tolerances, finish, or inspection points.
  • Specifying a premium material without checking whether a standard grade meets the real requirement.
  • Using very tight tolerances on nonfunctional surfaces while leaving important mating features unclear.
  • Treating polishing, anodizing, blasting, or deburring as an afterthought.
  • Comparing quotes without confirming the same material, finish, inspection, packing, and delivery assumptions.
  • Approving a prototype without recording which changes are needed before repeat production.

These mistakes are common because buyers are often under pressure to get a price quickly. A better habit is to send the supplier a short function note with the drawing. That note does not need to be long; it only needs to explain what the part touches, what may fail, what finish is visible, and what the buyer will inspect when the parts arrive.

Supplier Selection Checklist

A suitable supplier should ask useful questions before accepting the order. For 5-axis machining advantages, the questions should focus on geometry risk, material grade, finish behavior, and inspection evidence. A fast answer can be helpful, but a fast answer that ignores unclear requirements may create problems later.

Look for a team that can explain the process route in plain manufacturing terms: stock preparation, roughing, finishing, deburring, surface treatment, inspection, and packing. MTSPi CNC treats this as part of the purchasing conversation, especially when service scope must connect with material and finish requirements in the same order.

Supplier check What to ask What a strong answer sounds like
Drawing review Which dimensions or notes need clarification? The supplier names exact features, not only a general concern.
Process route How many setups and which datum surfaces are planned? The answer mentions fixture logic and inspection access.
Finish control How will visible surfaces be protected? The supplier explains handling, masking, and acceptance limits.
Inspection report Which features will be measured and how? The method matches the feature, tolerance, and drawing datum.

Specification Sheet to Request

Before placing an order, request a simple specification sheet that records the assumptions behind the quote. It should include material grade, stock type, finish, tolerance standard, special inspection, packaging, delivery date, and revision level. This document reduces the chance of a mismatch between purchasing, engineering, and production.

For repeat work, the sheet should also record approved samples, fixture notes when available, and any part-specific handling rules. If the first batch required manual polishing, special burr removal, or a nonstandard inspection method, that detail should travel with the next purchase order instead of living only in email history.

Item Include this detail Buyer benefit
Revision Drawing number, model version, and change note. Prevents old geometry from being quoted or produced.
Material Grade, temper, certificate need, and substitute permission. Avoids hidden changes in performance or finish response.
Finish Process, color, texture, protected areas, and visual standard. Reduces cosmetic disputes after shipment.
Inspection Measured features, report type, gauge method, and sampling level. Keeps acceptance aligned with function.

Specific Notes for Advantages of 5 Axis CNC Machining for Complex CNC Parts

For this topic, the biggest risk is assuming that one familiar manufacturing answer fits every part. Advantages of 5 Axis CNC Machining for Complex CNC Parts requires a practical check of geometry, quantity, material behavior, finish target, and inspection method. The buyer should decide which requirement is fixed and which requirement can be adjusted if the supplier identifies a better route.

If the design is still flexible, review manufacturability before releasing final drawings. If the design is already frozen, make the acceptance criteria clearer instead of leaving the supplier to guess. This is especially important when a part has thin walls, threaded features, cosmetic faces, sealed surfaces, sliding contact, or a close relationship with other components.

A short note about the part’s working position, mating components, expected handling, and failure concern can be more useful than a long email with no priority. It helps the machining team protect the surfaces that matter and avoid spending time on details that do not affect use.

MTSPi CNC / MEITESI can support this type of project by checking drawing details, material options, machining sequence, finish compatibility, and inspection needs before production. The goal is not to add unnecessary complexity; it is to make sure the ordered parts match the real assembly requirement when they arrive.

Conclusion

Advantages of 5 Axis CNC Machining for Complex CNC Parts is best handled as a complete manufacturing decision rather than a narrow process label. Buyers should define the part function, select a suitable material, confirm the machining route, control finish expectations, and ask for inspection evidence that matches the drawing risk. With clear information and practical supplier questions, MTSPi CNC / MEITESI can help turn a drawing into parts that are easier to quote, easier to inspect, and more reliable in use.

FAQ

What information should I send for advantages of 5 axis cnc machining?

Send the 3D model, 2D drawing, material grade, quantity, finish, critical dimensions, thread notes, target delivery date, and any assembly concerns. Photos of mating parts or old samples can also help when the drawing does not tell the full story.

Should I choose the tightest possible tolerance?

No. Tight values should be used where they protect fit, movement, sealing, or alignment. Noncritical surfaces can often use standard tolerances, which helps reduce cost and delivery risk.

Can the same part be prototyped and then produced in low volume?

Yes, but the prototype route should consider later production. If the prototype uses a very different fixture or finish method, record that difference before approving the next batch.

How do I avoid finish problems on visible parts?

Define cosmetic faces, acceptable tool marks, edge break, color requirements, and packaging protection before machining starts. A sample or photo standard is useful for repeat orders.

Why do suppliers ask so many questions before quoting?

Good questions reduce assumptions. Material, tolerance, finish, inspection, and packing choices can change both price and outcome, so clarification protects the buyer as well as the supplier.

Categories
Machine Tools & Programming

Drilling vs Milling: Difference, Tools, Holes, Slots, and Part Features

Drilling vs milling is a practical question because the word is used in design reviews, RFQs, supplier audits, cost discussions, and quality reports. In manufacturing, it usually describes controlled material removal from metal or plastic stock to create a part with defined shape, dimensions, surface condition, and functional features. For buyers, the useful answer is not only the dictionary definition; it is how the process affects material choice, tolerance, lead time, finish, inspection, and supplier communication.

This guide combines common top-page coverage with CNC buyer details that are often missing: drawing requirements, process selection, cost drivers, inspection evidence, and realistic questions to ask before placing an order with MTSPi CNC / MEITESI.

Quick Answer

Drilling vs milling refers to a manufacturing subject connected to cutting, shaping, or removing material with controlled tools. In CNC work, the main decision is how to turn a drawing or model into a repeatable part without overpaying for unnecessary tolerance, finish, or setup complexity. A buyer should start with the part function, then define material, quantity, critical dimensions, finish, and inspection requirements.

When a part needs milled faces, pockets, slots, holes, or 3D profiles, a process-specific review can help match the geometry to a practical route. When the part includes round features, shafts, threads, bushings, or sleeves, turning may be more efficient than forcing the work into a milling setup.

Key Takeaways

  • Drilling vs milling should be understood through part function, not only a short definition.
  • The same term can mean different things in engineering, purchasing, shop-floor planning, and inspection.
  • Material grade, tolerance, surface finish, and batch quantity often matter more than the process name.
  • A clear 2D drawing is still important even when a 3D model is available.
  • The best supplier questions focus on risk: workholding, tool access, burrs, finish, measurement, and repeatability.

Definition and Core Meaning

Most leading educational pages explain drilling vs milling with a simple idea: controlled shaping of material into a desired part. That definition is useful, but it is incomplete for real sourcing work. A buyer also needs to know what will be held, where the cutting forces go, which surfaces are cosmetic, which dimensions control assembly, and what evidence proves the finished part is acceptable.

In a CNC project, the definition becomes more concrete. The process starts with a drawing, model, material, stock size, tools, fixtures, and inspection plan. If any of these are unclear, the quote may look fast but the project can still run into rework. MTSPi CNC reviews those details through drawing and model preparation before the machining route is finalized.

A useful way to think about the term is this: machining is not just cutting material away. It is a chain of decisions that includes programming, setup, tool selection, clamping, roughing, finishing, deburring, surface treatment, inspection, packaging, and communication. Each step can change cost and quality.

Question Simple answer Buyer detail that matters
What is being made? A part from raw material. The drawing should identify datums, threads, finish, tolerances, and critical surfaces.
How is material removed? By cutting tools or controlled energy. Tool access, chip control, heat, and workholding decide whether the process is stable.
What affects price? Machine time and material. Setup count, tolerance, finish, inspection, burr control, and quantity are often just as important.
How is quality confirmed? By inspection. Inspection should match the drawing risk with the right gauge, report, or sampling plan.

Main Process Categories

The most common process categories include milling, turning, drilling, boring, tapping, reaming, grinding, EDM, and finishing operations. Educational pages often list these as separate processes, but real parts often use several of them. A housing may need milling, drilling, tapping, deburring, bead blasting, and anodizing. A shaft may need turning, threading, grooving, polishing, and runout inspection.

Milling removes material with rotating cutters and is common for flat faces, pockets, slots, holes, and complex surfaces. Buyers can review CNC milling support when a part has prismatic geometry or multiple machined faces. Turning rotates the workpiece and is usually efficient for round parts, shafts, bushings, threaded pins, sleeves, and spacers; for these parts, CNC turning support may be the better starting point.

Drilling, boring, tapping, and reaming are hole-making or hole-finishing operations. They look simple on a drawing, but hole depth, thread engagement, position tolerance, burr direction, and access from one side or both sides can affect machining risk. Deep holes and small threaded holes deserve special attention before quoting.

A strong process choice also considers the order of operations. A hole drilled before milling may move slightly after material is removed around it. A thin wall roughed too aggressively may release stress and lose flatness. A cosmetic surface finished too early may be damaged during later clamping. These sequencing details are rarely visible in a simple definition, yet they are often the difference between a clean first batch and repeated correction.

Process Best suited for Common risk
Milling Flat faces, slots, pockets, 3D contours, hole patterns Long tool reach, vibration, internal corner radius, thin wall movement
Turning Shafts, bushings, sleeves, pins, threaded round parts Runout, concentricity, surface finish, slender-part deflection
Drilling and tapping Holes, threads, fastener locations Broken taps, wrong thread depth, burrs, poor position control
Grinding or fine finishing Tight surfaces and improved roughness Extra cost, measurement demand, and possible lead time increase

Materials and Manufacturing Considerations

Material choice changes nearly every part of drilling vs milling. Aluminum usually machines quickly and accepts many finishes, but thin walls may deform and cosmetic surfaces need protection. Stainless steel is strong and corrosion resistant, but it can work harden and increase tool wear. Brass cuts cleanly, copper needs careful burr and heat control, titanium demands conservative cutting and cooling, and engineering plastics need heat management and gentle workholding.

For metal projects, metal machining choices gives a useful way to compare alloy behavior before the RFQ is finalized. For projects where aluminum is likely, buyers should think about 6061, 7075, anodizing, flatness, and cost. Stainless steel buyers should pay attention to 304 versus 316, burr behavior, passivation, and the cost impact of tight tolerances.

Material is not only a performance choice. It is also a supply-chain choice. Availability, stock shape, minimum order size, certificate requirements, and substitute-grade permission can all affect quote speed. Buyers should state whether equivalent materials are allowed or whether the listed grade is mandatory.

Material Why buyers choose it Machining note
Aluminum Light weight, good machinability, many finish options Thin walls and cosmetic faces need careful sequence and handling.
Stainless steel Corrosion resistance, strength, clean appearance Tool wear, burrs, and work hardening can raise cost.
Brass or copper Conductivity, appearance, thread quality, fittings Copper can be gummy; brass is easier but alloy choice still matters.
Engineering plastics Weight reduction, insulation, wear behavior Heat, clamping, and burr control are important.

Cost, Tolerance, and Surface Finish Factors

Cost is often misunderstood because buyers compare only the unit price. A quote also reflects programming, setup, material preparation, fixture design, tool life, cutting time, deburring, finish, inspection, packaging, and delivery risk. A low quote may hide missing assumptions, while a high quote may include inspection or finish work that another supplier ignored.

Tolerances should protect function rather than decorate every feature. Tight dimensions on noncritical surfaces add cost without improving performance. A better approach is to mark critical features clearly and allow standard tolerances elsewhere. MTSPi CNC can review machining cost reduction checks when buyers want to reduce price without weakening the part.

Surface finish also changes the process. A visible aluminum panel may need careful tool paths, deburring, polishing, bead blasting, or anodizing. A hidden bracket may only need safe edges and functional holes. Surface expectations should be discussed before machining, especially when a post-machining finish will be applied after cutting.

Tolerance and finish should also be separated by purpose. A sealing face, bearing seat, threaded hole, and decorative cover do not fail in the same way. A sealing face may need flatness and surface roughness control. A bearing seat may need diameter, roundness, and runout. A visible cover may need consistent texture and protected edges. A hidden mounting plate may only need hole position and deburred edges. This distinction helps buyers spend money where it protects function.

Factor Why it changes the quote How to control it
Tight tolerance Requires slower cutting, stable setup, and more inspection Apply it only to functional features.
Small batch Setup cost is spread over fewer parts Combine parts or request quantity breaks.
Complex finish Adds handling, protection, and rework risk Define visible and hidden surfaces separately.
Incomplete drawing Supplier must guess or ask repeated questions Send drawing, model, material, finish, and quantity together.

Design and Drawing Notes for Better Results

Good design makes the important features reliable. Internal corners should allow realistic cutter radius. Deep pockets should allow tool access. Thin walls need enough stiffness for cutting and finishing. Threads should have clear depth and class. Holes should show whether they are blind, through, tapped, reamed, or counterbored.

A 3D model gives geometry, but the 2D drawing gives manufacturing intent. It should identify datums, tolerances, surface roughness, thread callouts, finish requirements, revision level, and inspection notes. Without this, the supplier may produce the shape correctly but miss the real acceptance standard.

For prototype work, prototype machining review helps confirm fit and function before the design moves to a production order. For repeated small batches, fixture notes, approved samples, and inspection records should be kept with the job so later orders do not restart the learning process.

Common Mistakes to Avoid

  • Using a broad term without explaining the part’s function or assembly risk.
  • Sending only a model when threads, finish, tolerances, and critical features are needed.
  • Specifying tight tolerances on every dimension instead of only where fit or performance requires them.
  • Leaving surface finish until after the machining process is already fixed.
  • Comparing supplier quotes without checking whether material, finish, inspection, and packing assumptions match.
  • Approving a prototype without recording what changed before low-volume production.

Supplier and Quotation Checklist

A good RFQ package helps suppliers answer quickly and accurately. It should include the model, drawing, material, quantity, finish, target lead time, inspection requirement, and any special packaging need. If the part is used with another component, include a short note about the mating feature or failure concern.

A capable supplier should explain the process route, not only state that the part can be made. Ask about workholding, tool access, burr control, inspection, and finish sequence. The answer should be specific enough that an engineer can see how the part will be controlled before shipment.

RFQ item What to provide Why it helps
3D model STEP or other usable CAD format Supports programming and geometry review.
2D drawing Tolerances, datums, threads, finish, revision Shows manufacturing intent and acceptance rules.
Material Grade, temper, certificate need, substitute permission Controls performance, cost, and availability.
Quantity Prototype and production breaks Helps choose fixture and process strategy.
Inspection Critical dimensions and report needs Prevents disputes after delivery.

How to Use This Information in a Real RFQ

After reading a definition or comparison, buyers should turn the information into a short RFQ note. The note can be simple: part function, material preference, expected quantity, important mating features, visible surfaces, and delivery target. This small addition helps the supplier understand why certain features matter and where standard manufacturing variation is acceptable.

For example, instead of asking only for a price, a buyer can write that two bores locate bearings, the top face is visible after assembly, the threaded holes need repeated installation, and the first order is for functional testing. That kind of note guides process planning, inspection priority, and packaging protection without making the project more complicated.

Specific Notes for Drilling vs Milling: Difference, Tools, Holes, Slots, and Part Features

For the topic drilling vs milling, the most useful article is one that begins with the general definition but quickly moves into practical manufacturing choices. The front-page results commonly explain the concept well, yet they often leave buyers without enough detail about drawings, tolerance, cost, finishing, inspection, and supplier communication.

The better approach is to connect the concept to part features. If the part has milled pockets, use milling logic. If it has round geometry, evaluate turning. If it needs a smooth visible finish, plan surface treatment early. If it has tight functional dimensions, decide the inspection method before accepting the quote.

This is why MTSPi CNC / MEITESI treats every request as a connected manufacturing problem rather than a single-word process label. A clear drawing, suitable material, realistic tolerance, and measurable quality standard make the finished part easier to quote, easier to produce, and easier to approve.

Practical Buyer Scenario

Consider a buyer who searches for drilling vs milling because a new project has moved from concept to sourcing. The drawing shows a metal housing with two bearing bores, four mounting holes, a visible top surface, and a note calling for black finish. A basic educational explanation may help the buyer understand the term, but it will not answer the real purchasing questions: which faces are datums, whether the bores need inspection reports, whether the finish changes dimensions, and how the supplier will protect the visible surface during shipping.

In that situation, the buyer should not ask only whether the supplier can machine the part. A better request is to ask for a review of stock material, setup count, bore measurement, edge break, surface finish route, and packaging. If the housing is still being tested, prototype machining review can help confirm geometry before repeat orders. If the order will move into small batches, the buyer should ask which setup details can be reused and which dimensions need routine reporting.

This scenario shows why information articles should lead into real manufacturing decisions. The reader may begin with a broad question, but the project succeeds only when the definition becomes a drawing, a process route, a material order, a controlled finish, and an inspection method. That is the bridge between learning a term and buying usable parts.

Conclusion

Drilling vs Milling: Difference, Tools, Holes, Slots, and Part Features should be understood as a practical manufacturing topic, not just a short definition. Buyers should use the concept to make better decisions about process selection, materials, tolerances, finish, cost, inspection, and supplier communication. With a clear RFQ package and a supplier that explains the route before production, MTSPi CNC / MEITESI can help turn general manufacturing knowledge into reliable machined parts.

FAQ

What does drilling vs milling mean in manufacturing?

It generally refers to a controlled way of shaping material, often by removing material with tools or machine processes. In CNC work, the meaning also includes programming, setup, workholding, finishing, and inspection.

What information should I send for a CNC quote?

Send a 3D model, 2D drawing, material grade, quantity, finish requirement, critical dimensions, thread notes, and any assembly concerns.

Is CNC machining always the best process?

No. It is excellent for precision parts, prototypes, low-volume production, metal components, and many plastic parts, but casting, forming, molding, or fabrication may suit some designs better.

Why do machining costs vary so much?

Costs vary because material, setup count, tolerance, finish, inspection, tooling, batch size, and lead time can change the real work behind the same-looking part.

How can buyers reduce machining risk?

Clarify drawings, mark critical features, choose suitable materials, avoid unnecessary tight tolerances, define finish expectations, and request inspection evidence that matches the part function.

Categories
Surface Finishing

3 Axis CNC Machining Guide for Cost-Effective Parts

3 axis cnc machining decisions should start with function, not with a generic machining label. Buyers get better results when they define how the part will be used, which dimensions control assembly, what material behavior matters, and how the supplier will inspect the finished work. For this topic, the important issues are cost-effective milling, simple setups, accessible features, fixture planning, and comparison with multi-axis machining. A capable supplier should be able to explain the process route, likely risk points, quotation assumptions, and inspection evidence before production begins.

Quick Answer

The practical answer is to match the drawing to a manufacturing route, then confirm material, tolerance, finish, quantity, and inspection before approving the order. If the part has mostly milled faces, pockets, slots, and holes, review CNC milling service capability. If it includes round features, shafts, bushings, or threads, include 3-axis machining option in the discussion. For buyer-side risk control, ask how the shop will hold the part, which features are critical, and whether any finish or secondary process changes final dimensions.

Key Takeaways

  • Define the functional dimensions before asking suppliers to quote every feature as critical.
  • Send a 2D drawing with tolerance notes and a 3D model for programming reference.
  • Confirm material grade, heat condition, surface finish, and inspection report requirements early.
  • Ask the supplier to identify difficult features, tool access issues, and possible design changes.
  • Use sample approval or first article checks when the part is new, tight, cosmetic, or assembly-critical.

What Buyers Usually Need to Know

Most problems in custom machining come from unclear assumptions. A supplier may quote one setup while the buyer expects multiple controlled operations. A buyer may request a tight tolerance on the full drawing while only one bore or mounting face actually affects the assembly. For 3 axis cnc machining, the conversation should make those assumptions visible before the purchase order is issued.

The RFQ should include units, drawing revision, STEP file, material grade, quantity, surface finish, critical dimensions, and target delivery. When these details are missing, suppliers either pause the quote or make assumptions. A fast answer based on assumptions can look attractive, but it often creates rework later. A better supplier asks clear questions and records the answers.

Capability should be checked against the part shape. A shop with 5-axis machining option may handle many related jobs, but the buyer still needs to know whether the part will be milled, turned, ground, cut by EDM, drilled, or finished by a partner. Process route clarity is the first sign that the quotation is built on real manufacturing thinking.

Buyer Question Why It Matters Useful Evidence
Which process will make the main features? Process choice affects setup count, accuracy, cost, and lead time Supplier explains milling, turning, EDM, grinding, drilling, or finishing route
Which dimensions are functional? Critical dimensions need better control than clearance or cosmetic areas Marked drawing, datum notes, inspection plan
Which material condition is required? Grade, temper, hardness, and stress condition change machining behavior Material certificate or written grade confirmation
What happens after machining? Deburring, anodizing, plating, polishing, or heat treatment can change size and appearance Finish specification and post-finish inspection method

Material and Process Considerations

Material changes cutting speed, tool wear, clamping force, burr behavior, and finishing results. Aluminum is usually easier to machine and finish, stainless steel needs more attention to heat and work hardening, brass and copper require careful burr and dent control, and engineering plastics can move under heat or clamping pressure. For 3 axis cnc machining, material selection should support the part’s function rather than only the lowest raw material price.

The process route should match both material and geometry. Deep pockets, small internal radii, long shafts, thin walls, fine threads, and cosmetic faces each require different planning. Buyers should ask whether the supplier sees any design feature that raises risk. If the supplier recommends a larger radius, a different stock size, or a changed tolerance, ask for the reason and the expected effect on cost and quality.

When finishing is required, discuss it before machining starts. Anodizing, plating, passivation, polishing, blasting, coating, and heat treatment may change dimensions, surface appearance, or edge condition. A controlled supplier will connect machining allowance, masking, inspection, and packaging rather than treating finishing as an afterthought. Relevant finishing choices can be checked through quality assurance process.

Tolerance, Surface Finish, and Quality Checks

Tolerance should be tied to function. A general tolerance may be enough for clearance edges, while a bearing diameter, threaded hole, sealing face, or locating surface may require a tighter limit and a clear datum. Buyers should avoid applying strict tolerance across the whole drawing unless the part truly requires it, because unnecessary precision raises cost and may increase rejection risk without improving performance.

Inspection should be planned before production. Calipers may be enough for noncritical outside dimensions, but bores, threads, flatness, profile, runout, and surface roughness often need gauges, micrometers, CMM checks, height gauges, pin gauges, or functional fit tests. For 3 axis cnc machining, ask which tool will verify each critical feature and whether the report covers first article, sampling, or full inspection.

Surface finish needs clear language. Words like smooth, clean, or nice are not enough when mating, sealing, sliding, corrosion, or appearance matters. Use Ra values where function requires them and visual notes where cosmetic faces matter. If finish follows machining, confirm whether dimensions are checked before or after finishing through surface treatment options.

Factor Typical Risk Practical Control
Tight tolerance Higher cost, slower machining, more inspection Apply tight limits only to functional features
Thin walls or deep pockets Vibration, distortion, tool reach limits Use larger radii, balanced walls, and realistic flatness notes
Cosmetic finish Color variation, handling marks, unclear acceptance Define visible faces and approve samples when needed
Repeat order Different lot, tool wear, undocumented changes Keep revision, process, and inspection records

Cost Factors and Quotation Details

Cost depends on more than part size. Setup time, programming, material stock, tooling, machine time, number of operations, inspection, finishing, packaging, and batch size all affect the final quote. A small part with deep features and tight tolerances can cost more than a larger simple plate. A large batch may justify fixture work that would not make sense for a one-off sample.

Buyers can improve quote accuracy by separating must-have requirements from preferences. State which features control assembly, which surfaces are cosmetic, which dimensions may follow general tolerance, and what report is required. If the supplier has to guess, the quote may change after technical review. Cost-focused topics can also be compared against CNC machine shop capability when drawing changes are possible.

Lead time should be broken down into material purchase, programming, setup, machining, finishing, inspection, packing, and shipment. Finishing and inspection often create delays that buyers do not see in a simple machine-time estimate. Ask for a realistic timeline and identify which step has the highest risk of delay.

Design Tips for Better Machining Results

Good design makes machining predictable. Use accessible features, practical internal radii, balanced wall thickness, clear datums, standard threads, and realistic hole depths. Avoid deep narrow pockets, very thin unsupported walls, tiny corner radii, and tight tolerances on nonfunctional features. These changes often lower cost while improving consistency.

For 3 axis cnc machining, design review should focus on cost-effective milling, simple setups, accessible features, fixture planning, and comparison with multi-axis machining. If a feature is difficult but not functional, simplify it. If a feature is critical, mark it clearly and allow the supplier to plan the correct process. Tool access, clamping surface, burr direction, and finishing allowance should be considered before the drawing is released.

When the part is still being developed, use prototype or low-volume stages to learn from the design. A sample can reveal fit issues, burr problems, coating changes, or tolerance conflicts. It is cheaper to update the drawing after a controlled sample than to repair a full batch after shipment.

Common Buyer Mistakes to Avoid

One common mistake is comparing prices without comparing assumptions. If one supplier includes material certification, surface treatment, inspection report, and protective packaging while another quotes machining only, the prices are not equivalent. Ask each supplier to state what is included and what is excluded.

Another mistake is sending only a 3D model. The model helps programming, but the drawing carries tolerances, threads, material notes, finish requirements, datum references, and revision control. For 3 axis cnc machining, a missing drawing often leads to arguments about what should have been inspected or finished.

Buyers also overlook packaging. Sharp edges, polished faces, threads, thin walls, and precision bores can be damaged after inspection if parts are packed loosely. Packaging method should match the part’s risk and should be confirmed before shipment, especially for export orders.

Supplier Selection Checklist

A useful supplier review is technical and specific. Ask for the process route, material confirmation, fixture concept, inspection method, finishing plan, and lead time breakdown. The supplier does not need to expose every internal detail, but it should be able to explain how risk will be controlled.

Checklist Item Good Response Warning Sign
Drawing review Supplier identifies critical dimensions and unclear notes Supplier quotes with no technical questions
Process fit Supplier explains setups and secondary operations Supplier only lists machines generally
Inspection plan Supplier names tools and report format Supplier says quality is checked without details
Revision control Supplier confirms file version and change process Supplier relies on informal messages

Specification Sheet to Request

Before production, request a simple specification sheet covering drawing revision, 3D file name, material grade, quantity, finish, tolerance notes, critical dimensions, inspection report, packaging, and delivery terms. This sheet keeps engineering, purchasing, quality, and supplier teams aligned.

For repeat orders, the same sheet prevents silent changes. If material stock, finish partner, inspection method, or packaging changes, the buyer can review the difference before shipment. This is especially important when 3 axis cnc machining parts are used in assemblies or ordered across several batches.

3 Axis CNC Machining Deep-Dive Notes

The most important judgment for 3 axis cnc machining is knowing which requirement truly drives performance. If the part is a prototype, fast learning may matter more than cosmetic perfection. If it is a repeat production component, stable process control and inspection records may matter more than the fastest quote. If the part is visible to customers, handling and finishing should be planned with the same care as dimensions.

Suppliers should be encouraged to flag manufacturability issues. A larger internal radius, modified thread depth, adjusted wall thickness, or changed finish sequence can reduce cost and risk. The buyer should evaluate each suggestion based on function, assembly, cost, and schedule rather than accepting or rejecting changes automatically.

For higher-risk parts, use a first article approval step. Measure critical dimensions, test fit with mating parts, review burrs, check finish, and document any accepted deviations. Once the sample is approved, update the drawing or specification so production follows the approved standard. That discipline is what turns a one-time sample into a repeatable purchasing process.

Quotation review for 3 axis cnc machining should include a short risk discussion, not only a unit price. Ask the supplier which feature is most likely to drive cycle time, which tolerance is most difficult, whether the material is standard stock, and whether finishing or inspection creates a separate lead time. These answers help the buyer understand why two quotations may differ even when the drawing is the same.

Inspection planning should also separate first-piece approval from batch control. The first piece confirms that the program, fixture, material, and drawing interpretation are correct. Batch inspection confirms that the process stays stable as tools wear, operators change shifts, or material lots vary. For 3 axis cnc machining, both checks can matter when parts must fit an assembly or repeat across several orders.

Communication should be documented in a way that survives staff changes. If the buyer approves a larger corner radius, accepts a minor tool mark, changes a finish, or allows a substitute material, that decision should be written into the drawing, purchase specification, or deviation record. A message buried in a chat thread is easy to miss when the next batch is ordered.

Packaging and handling deserve a line in the purchase requirements. Precision parts can pass inspection and still arrive unusable if threads rub together, cosmetic faces are scratched, thin walls are bent, or moisture reaches bare steel. Ask for trays, separators, oil paper, caps, bags, or carton reinforcement where the part geometry justifies it. The right packaging method is part of the delivered quality, not an optional extra.

If the design is still changing, buyers should avoid locking a large batch too early. A small sample or pilot run can expose burrs, assembly interference, coating thickness issues, tolerance conflicts, or unexpected cost drivers. Once those details are corrected, the production batch becomes less risky. This staged approach is especially useful when 3 axis cnc machining parts combine tight dimensions with visible surfaces or secondary finishing.

Supplier capability should be judged by the questions the supplier asks. A useful supplier will ask about datums, mating parts, finish class, inspection reports, material grade, and delivery constraints. A weak supplier may simply agree to every requirement without explaining how it will be controlled. Buyers should prefer the partner who makes hidden risk visible before production starts.

Finally, keep a record of what worked. After an accepted order, save the final drawing, approved sample notes, inspection report, finish reference, packing photos, and supplier comments. The next order can then start from a known standard instead of repeating the same technical discussion. This habit improves repeatability and makes 3 axis cnc machining purchasing easier over time.

For acceptance, define what happens if only a noncritical feature is outside the drawing while the functional areas pass. Some buyers allow a documented deviation for prototypes or internal fixtures, while production parts may require rework or remake. Agreeing on this decision path before shipment makes 3 axis cnc machining projects easier to manage when small issues appear.

For scheduling, ask the supplier to identify the latest date for drawing freeze, material purchase, machining start, finishing release, inspection, and packing. A clear timeline helps the buyer understand which change requests are still practical and which ones will reset delivery. That clarity is often the difference between a controlled order and a rushed recovery.

Conclusion

3 axis cnc machining sourcing works best when buyers define function, material, tolerance, finish, inspection, and delivery expectations before production. The strongest supplier is not simply the one with the fastest quote; it is the one that can explain the manufacturing route, identify risks, and provide evidence that the finished parts match the drawing. Clear RFQ data and practical design decisions reduce cost, delays, and rework.

FAQ

What information should I send for 3 axis cnc machining?

Send a 2D drawing, STEP file, material grade, quantity, finish requirement, tolerance notes, critical dimensions, inspection report needs, and target delivery date.

How can I reduce cost without weakening the part?

Use practical tolerances, larger internal radii, accessible features, standard materials, and clear finish notes. Ask the supplier which design details add the most machine time.

When should I request a first article report?

Request it when the part is new, tight tolerance, cosmetic, assembly-critical, or used for repeat production. The report should focus on the dimensions and features that affect function.

Request A Quote

We'll Send You Back with Price Immediately!

DEC 1-31

XMAS SPECEIL

Up to

40% off

3 Axis CNC Machining Guide for Cost-Effective Parts

We'll Send You Back with Price Immediately!
