Investment Casting vs Sand Casting: A Finished-Part Selection Guide

Investment casting generally suits detailed near-net shapes, while sand casting offers a flexible route for many larger or less intricate components. The better choice depends on the finished drawing, alloy, quantity, inspection requirements, and machining needed after casting. Neither process eliminates the need to plan critical bores, sealing faces, datums, or material verification.

This guide compares the routes from the perspective of an engineer purchasing a finished component. It does not assign universal size limits, surface roughness, or tolerances: foundry capability and the particular geometry must establish those values.

Understand the Different Mold Routes

Investment casting uses an expendable pattern, commonly wax, surrounded by a ceramic mold system. After pattern removal and mold preparation, molten alloy fills the cavity. The shell is removed after solidification, and the casting is separated, cleaned, and processed as specified.

Sand casting forms a cavity in a sand-based mold using a pattern or another qualified mold-making route. Cores can create internal passages. The mold is broken away after casting. The Steel Founders’ Society of America describes geometry, patternmaking, coremaking, molding, pouring, and cleaning as key stages; further operations depend on the purchase specification.

Separate Cast Features From Machined Interfaces

Mark the drawing to show features that can remain as cast and those requiring machining. A decorative contour may be acceptable as cast while a bearing bore, gasket face, threaded port, or assembly datum needs a controlled finishing operation. Avoid specifying machining-level requirements on every surface without a functional reason.

For each finished interface, define the datum scheme, required stock, cutter access, and inspection method. The casting supplier and machining supplier need compatible assumptions. A near-net blank with insufficient stock in one location can be unusable despite excellent appearance elsewhere.

Compare Practical Selection Factors

Decision Investment casting consideration Sand casting consideration
Fine external detail Often attractive for detailed near-net geometry Review mold method and whether detail needs machining
Part envelope Check shell handling, pouring, and foundry capability Often worth evaluating for large components
Internal passages Core design and removal still require review Core support, position, and removal are central issues
Finished interfaces May reduce some machining scope Plan stock and setups for required precision
Production economics Pattern and shell work affect cost and lead time Pattern, molding method, and core complexity affect economics

Use the table to generate supplier questions rather than selecting a process automatically. A simple small part may not justify investment casting, while a complicated larger part may still be feasible through a specialized investment foundry.

Review Geometry and Solidification Together

Large section changes, isolated heavy masses, sharp internal corners, and poorly supported features can complicate filling and solidification. Ask the foundry to review wall transitions, fillets, feeding, and the proposed part orientation. The shape must work with the selected alloy and mold system.

Gates, risers, and cutoff locations also affect the finished part. Agree where remnants may remain and where removal must be controlled. Keep gate-removal work away from critical cosmetic or functional interfaces where practical, and document any permitted blending or repair.

Select Alloy and Heat Treatment Before Comparing Prices

Use a specific alloy designation and applicable material standard rather than asking for steel or aluminum alone. Required mechanical properties, corrosion exposure, operating temperature, weldability, and heat-treatment condition can narrow the feasible processes and suppliers.

Define whether test results apply to separately cast specimens, attached coupons, or the component itself. Those approaches do not establish identical evidence. If a casting will be heat treated before machining, plan the dimensional and hardness checks at the appropriate stage.

Plan CNC Machining Around Reliable Datums

The first setup must establish a useful relationship between the as-cast geometry and the final interfaces. Specify locating areas and accessible surfaces, and review how casting variation affects clamping. A blank that rocks on an uncontrolled surface can create inconsistent material removal.

Discuss milling of casting interfaces with the blank model, finished model, alloy condition, and inspection requirements. For rotational features, the turning process overview helps frame questions about bores, faces, and concentric surfaces. Confirm scope and machine capacity before finalizing the route.

Choose Inspection From the Failure Consequences

Dimensional inspection, visual checks, material identification, mechanical testing, and nondestructive examination answer different questions. Define the required method, coverage, acceptance criteria, and reporting. A statement such as X-ray available is not an acceptance standard.

For pressure-containing, fatigue-sensitive, or highly loaded parts, involve the responsible engineer in selecting acceptance requirements. Agree how discontinuities, weld repairs, and rework are handled. Test records should trace to the relevant heat, lot, and revision when that evidence is required.

Compare Delivered Cost Rather Than Casting Price

Include tooling, samples, casting, heat treatment, straightening where permitted, machining, inspection, finish, packaging, freight, and expected scrap. A more expensive blank can be economical if it removes substantial machining and inspection work; a lower-cost casting may win when its extra stock is easy to remove.

Request comparable quantities and releases. Separate one-time tooling from recurring unit cost, clarify ownership and maintenance, and ask how design changes affect the existing pattern equipment. There is no universal break-even quantity between these two processes.

Release a Coordinated First Article

Approve the casting and machining drawings together. Record the alloy, treatment, process route, datums, inspection plan, and approved deviations. Review a first article against the actual assembly, particularly where an as-cast profile sits close to a machined mounting feature.

If the first article requires a geometry change, identify whether it affects the pattern, shell, core, machining fixture, or inspection program. Keep the change record with both suppliers so the next lot does not combine mismatched revisions.

Frequently Asked Questions

Is investment casting always more accurate?

It often offers advantages for detail and near-net shape, but actual dimensional capability depends on geometry, alloy, tooling, and process control. Obtain a feature-specific commitment.

Does sand casting always cost less?

No. Compare the finished component including cores, machining, inspection, tooling, and the order quantity.

Can either process deliver precision bearing bores directly?

Do not assume so. Discuss the fit and verification requirements and plan machining where necessary.

What does MTSPi need for a machining review?

Supply the blank and finished drawings, material condition, stock allowance, critical interfaces, quantity, and required reports through the manufacturing enquiry page.

Categories
Blog Manufacturing Process Comparisons

3D Printed Tooling: Choosing Printed, Machined, or Hybrid Fixtures

3D printed tooling is useful when a manufacturing aid needs complex contact geometry, quick revision, or low weight. CNC machined tooling is often the stronger candidate when sustained load, wear, heat, or a demanding locating interface controls the design. A hybrid fixture can combine a printed nest with machined datums, steel bushings, and replaceable wear components.

The selection should begin with the operation and its acceptance criteria. A tray for arranging components, a drill jig, and a machining fixture can look similar while having very different failure consequences. Compare complete tools that perform the same job rather than comparing material prices alone.

Start With the Operation and the Forces

Document the workpiece, locating sequence, applied forces, operator actions, and expected cycle count. Include the weight of the part, clamp forces, cutting or drilling loads where relevant, and any loads created during unloading. A tool that holds a component securely on a bench may behave differently when mounted vertically or accelerated by automation.

Define the failure modes worth preventing: movement, excessive deflection, crushed contact pads, worn locating holes, loose inserts, or heat distortion. Identify where a displaced component could damage equipment or expose an operator to harm. Select the tool architecture and validation effort to match those consequences.

Distinguish a Jig From a Fixture

A fixture locates and supports a workpiece during an operation. A jig also guides a tool, for example through a drill bushing. This distinction matters because the guide interface may encounter concentrated wear, friction, and forces that an assembly nest never experiences.

Formlabs’ manufacturing guidance describes both as customized production aids. The practical design lesson is to map each interface separately. A comfortable printed handle can be appropriate even when the drill guide, locating pin, and base plate require metal. Select a construction by function rather than requiring every feature to use one manufacturing process.

Compare the Three Tooling Routes

Route Useful characteristics Items to validate
Printed polymer tool Complex nests, low weight, rapid geometry changes Orientation, creep, heat, chemical exposure, surface wear
Machined metal tool Rigid bases, durable datums, accessible precision interfaces Clamping distortion, mass, corrosion, machining access
Hybrid assembly Printed geometry combined with durable locating and guiding elements Insert retention, tolerance accumulation, replaceability, joint stability

No row guarantees a particular tolerance or service life. Those outcomes depend on material, geometry, processing, inspection, and use. Compare the actual proposed constructions, including post-processing and any machining, rather than a generic label such as engineering resin or aluminum.

Design Datums and Support Before Adding Clamps

Choose repeatable locating features that constrain the intended motion without unnecessarily overconstraining the workpiece. Place supports under locations that carry clamp or process loads. A clamp acting between distant supports can bend the part and create a false inspection result.

Provide clearance for burrs, debris, and nonfunctional surfaces. Do not let a large cosmetic surface accidentally become the locating datum unless the drawing permits that approach. Where the operation needs accurate reference features, discuss machined base plates and locating surfaces early enough to coordinate them with the nest.

Treat Printed Orientation as a Design Variable

Printed properties and surface quality can depend on build orientation, layer bonding, support placement, and post-curing or conditioning. Avoid assuming that a material datasheet represents every direction in the finished tool. Ask the supplier which surfaces need supports and how their removal affects the workpiece contact.

Allow for the processing sequence. An insert installed into a thin boss can split or distort it; a threaded connection repeatedly tightened into polymer can lose retention. Provide sufficient surrounding material and validate the selected insert installation method using representative samples. There is no universal wall thickness that qualifies every tool.

Put Metal Where Wear and Contact Demand It

Steel drill bushings, locating pins, threaded inserts, and replaceable pads can protect a printed body from repeated contact. The interface holding those components matters as much as the components themselves. Define whether the fit is pressed, bonded, mechanically retained, or assembled through a separate metal structure.

Keep the load path understandable. For a hypothetical assembly nest, a printed shell might position a cosmetic housing while a metal stop reacts the clamp force. That arrangement needs a review of the housing support and stop position; adding a steel pin alone does not make the entire fixture rigid.

Check Heat, Coolant, Cleaning, and Time Under Load

Service conditions can overturn an otherwise attractive tooling choice. Exposure to cleaning agents, oils, humidity, ultraviolet light, soldering heat, or hot components should be considered using the actual material and exposure duration. A brief temperature rating cannot establish long-term dimensional stability.

Also review creep under sustained clamping and the temperature reached during repeated cycles. A fixture left loaded overnight may behave differently from a tool released after each short operation. Record the intended cleaning method and storage condition alongside the operating instructions.

Validate the Tool Against a Measurable Acceptance Plan

Inspect the locating features before loading a part, then verify the part position under the intended clamp condition. Run representative cycles and inspect again for movement, wear, loose hardware, and permanent deformation. Compare repeated load and unload measurements where repeatability controls the process.

For inspection fixtures, assess the contribution of the tool and operator to measurement variation. For production aids, agree the permissible workpiece movement and part quality results. The inspection planning resources provide context for defining critical features and reports with MTSPi.

Compare Lifetime Cost and Revision Risk

Include design, printing or machining, hardware, finishing, inspection, validation, downtime, repairs, and replacement in the comparison. A low initial cost may be attractive for a frequently revised prototype, while a stable production line may justify durable replaceable wear surfaces.

Freeze the approved CAD revision and material specification after validation. Mark tools so operators can distinguish old and new versions. Maintain spare wear components when replacement time affects production, and revalidate meaningful changes in build orientation, material, or supplier.

Frequently Asked Questions

Can a printed fixture replace an aluminum fixture?

Sometimes. Compare stiffness, load, temperature, wear, repeatability, and lifetime requirements using a representative tool and operation.

Can drill bushings be installed in printed tooling?

Yes, with a suitable retention design. Validate alignment, local support, retention, and wear under the intended drilling conditions.

What should I send for a tooling quote?

Send the workpiece model and drawing, operation description, datums, loads, environment, cycle expectations, and acceptance requirements. Confirm the proposed mechanical scope through the project contact page.

Categories
Blog Manufacturing Process Comparisons

Large Format 3D Printing: Design, Joining, and CNC Finishing

Large format 3D printing produces oversized components using a suitable additive process, sometimes followed by joining and CNC finishing. The useful question is not simply whether a model fits inside a printer. It is whether the complete manufacturing route can deliver the required interfaces, stability, surface condition, and inspection evidence.

This guide focuses on polymer components and tooling. Metal additive manufacturing has different equipment, support, thermal-processing, and qualification requirements. Neither route should be selected from a machine’s advertised build volume alone.

Define the Finished Part Before Choosing a Machine

Separate the overall shape from the functional interfaces. A full-size appearance model may accept visible layer lines. A fixture may need accurate locating pads. A mold may require a qualified working surface and temperature capability. These are different acceptance problems even when the outer dimensions are similar.

List the supplied dimensions, transport envelope, service environment, assembly loads, and surfaces requiring measurement. Identify the part’s inspection condition: unsupported, located on datums, or held in an assembly fixture. A large compliant shell can produce different measurements under different restraints.

Match the Process to the Entire Manufacturing Route

Route Reason to consider it Question before quotation
Large filament extrusion Full-scale polymer prototypes and suitable functional parts Can the selected material and geometry be produced without unacceptable distortion?
Pellet-fed extrusion Large near-net shapes with substantial material deposition What machining and finishing steps are included?
Large resin printing Detailed models or patterns where the chosen resin is suitable How are supports, curing, and dimensional acceptance controlled?
Sectioned assembly Parts exceeding a practical build or handling envelope How will the joints be located, inspected, and qualified?

Manufacturer specifications must be checked for the particular machine and material. There is no single build-size limit or tolerance that applies to an entire process family. Large-printing equipment also differs in its thermal controls and processing workflow.

For context on the broader alternatives, see the requirement-based process comparison. An attractive process name cannot replace a review of the actual part.

One Piece or Several Sections?

A one-piece build avoids assembly joints but can create a long, expensive job with demanding handling and finishing requirements. Dividing the part can improve access and allow smaller sections to be replaced, but adds alignment work and another source of variation. Neither choice is automatically cheaper.

Compare both routes against the same finished specification. Include the time required for adhesive preparation and cure, fastening, surface blending, alignment fixtures, and final inspection. Consider where the completed component will be installed: a part that fits the printer but not the building access route creates a separate logistics problem.

For a hypothetical equipment cover, a split near a removable service panel might be acceptable while a seam across a prominent cosmetic face is not. For a loaded tool, joint placement needs an engineering review of the load and temperature conditions. Appearance alone is not a sound basis for locating that joint.

Design Joints as Functional Features

Provide a defined locating method rather than relying on a long butt joint to align itself. Depending on the application, mating steps, dowels, fixtures, or designed fastening features may help establish position. Agree which features carry load and which only locate the assembly.

  • For bonded joints, validate material compatibility, preparation, bond geometry, and cure conditions.
  • For fastened joints, check local wall support, access, preload effects, and repeated assembly requirements.
  • For thermoplastic welding, confirm material and process compatibility with a qualified supplier.
  • For every joint, define the acceptance method and permissible mismatch.

There is no universal strength ranking between adhesives, fasteners, and welded joints. Geometry, material condition, temperature, and loading direction all matter. Use representative testing where the failure consequences justify it.

Reserve CNC Finishing for the Surfaces That Need It

Thermwood describes a near-net-shape workflow in which a part is printed oversize and then CNC trimmed to its final geometry. This is a useful manufacturing strategy, not a promise that any print can achieve any tolerance through machining.

Identify the mounting pads, sealing faces, locating holes, or other interfaces that require finishing. Define machining allowance with the manufacturing team, allowing for the selected print route and anticipated variation. Avoid removing so much stock that a cutter exposes an unsuitable internal structure or leaves a wall below its functional thickness.

Plan how the blank will be held. Clamping against a flexible printed wall can alter its shape, so the measured result in the fixture may differ from the released part. Datums, supports, cutter access, and tool travel need to be reviewed together. A part fitting the printer does not guarantee it fits the subsequent machining setup.

Discuss the critical interfaces and blank condition when requesting secondary milling of functional surfaces. Confirm material suitability and machine capacity with MTSPi before committing to a production route.

Validate Behavior at the Intended Scale

A small sample can help compare surfaces or basic material behavior, but it does not demonstrate the dimensional stability of a much larger geometry. Long spans, uneven section thickness, handling supports, and the sequence of processing operations deserve specific attention.

Record build orientation and post-processing conditions for the approved sample. Define the environment and support condition for dimensional inspection. Where elevated temperature or sustained loading matters, qualify the finished construction, including any coating, joint, or insert, rather than assuming that a resin name establishes performance.

Request a Delivered-Part Quote

Compare proposals that include the same scope: printing, material conditioning, support removal where applicable, joining, machining, finishing, inspection, packaging, and transport. Ask which requirements are guaranteed, which depend on a trial, and which require a design change.

A low print-only price can be misleading if another proposal includes the fixture and finished interface measurements. For interim production planning, the bridge-production acceptance checklist adds useful controls for revision and lot traceability.

Frequently Asked Questions

Does large format have a fixed size definition?

Not one universal threshold across suppliers. Specify actual part dimensions and the complete production route instead of relying on the label.

Must a large print be machined afterward?

No. Some as-printed parts meet their requirements. Machining is useful when selected interfaces need a condition the printing route cannot reliably provide.

Is printing in one piece always stronger?

No. Performance depends on material, build direction, geometry, and loads. A designed and qualified assembly may be suitable; a poorly positioned joint may not be.

Can a printed mold be used at any temperature?

No. Validate the complete tool against its thermal and mechanical duty. Material choice, construction, working surface, and operating conditions must be compatible.

Technical reference basis: Thermwood LSAM near-net-shape documentation and BigRep large-format equipment and design guidance. Examples are illustrative, not claims about MTSPi equipment ownership or documented customer test results.

Categories
Blog Manufacturing Process Comparisons

3D Printing for Low-Volume Production: A Bridge-to-Molding Plan

3D printing can supply a low-volume production batch while an injection mold is being developed, provided the printed material, process, and inspection plan are approved for the actual use. A successful bridge-production plan defines what may ship, how each batch will be accepted, and when the program will change to molded parts. It is not simply a larger prototype order.

Decide What the Interim Parts Must Prove

Start with the consequence of failure. A display housing for an internal sales review does not have the same requirements as a customer-delivered enclosure exposed to heat, sunlight, cleaning chemicals, or repeated screw assembly. Write down the operating environment and the release authority before selecting a printer or material.

Intended use Useful acceptance evidence Do not assume
Appearance review Approved color and surface sample Printed texture reproduces molded texture
Assembly trial Mating-part checks and measured interfaces One fit check establishes production capability
Functional pilot Application-specific load and environmental tests A similarly named resin has identical properties
Customer shipment Approved specification, lot records, release inspection A prototype approval covers end-use shipment

Where certification or regulated use applies, confirm which manufacturing changes require additional qualification. A material datasheet alone does not establish compliance of a finished assembly.

Choose the Process Against the Failure Mode

SLA, SLS, MJF, and material-extrusion processes can address different combinations of appearance, geometry, material behavior, and throughput. Compare candidate processes using the same part and inspection criteria rather than a generic claim about the strongest or cheapest technology. The requirement-based printing process comparison provides a starting framework.

Orientation affects printability, support placement, finish, and dimensional results. The printer manufacturer’s validated guidance should inform the build setup. Keep supports away from critical cosmetic or mating surfaces where practical, and include cleaning and post-curing when the selected system requires them. Lock the approved build recipe before interpreting results from multiple deliveries as comparable.

Do not substitute an SLA resin described as ABS-like for molded ABS without checking the properties relevant to the application. Repeated flexing, long-term temperature exposure, creep, and chemical resistance may decide suitability even when both samples initially fit.

Compare Total Accepted-Part Cost

There is no universal quantity at which molding becomes cheaper. Use supplier quotations for the same revision and include tooling, setup, finishing, inspection, expected scrap, and delivery. A simple preliminary model is:

Break-even quantity = (mold tooling and setup cost minus print setup cost) / (accepted printed-part cost minus accepted molded-part cost).

This expression is useful only when the denominator is positive and the compared parts satisfy the same requirements. For an illustrative calculation, a tooling difference of $8,000 and a unit-cost difference of $16 gives 500 accepted parts. Those figures are invented planning inputs, not MTSPi pricing. A design revision that changes the tool, or a finishing operation omitted from one quotation, can invalidate the comparison.

Separate economics from availability. Printing may remain appropriate for a time-critical interim batch even when molding has a lower eventual unit cost. For a broader quotation checklist, review the factors behind printing and scale-up cost.

Make Each Batch Traceable

Printed parts can have effective traceability; it must be specified and maintained. A useful traveler connects the part revision to material lot, machine, build identifier, approved orientation, post-processing records, inspection results, and release date. Decide whether individual serialization or batch identification is needed.

  • Approve a representative sample before the first production release.
  • Identify critical dimensions and how they will be measured.
  • Agree sampling frequency and the response to a failed check.
  • Record build or material changes before shipping affected parts.
  • Retain a reference sample when useful for later comparison.

A hypothetical enclosure program might check mounting-hole location with a fixture, verify lid engagement with a mating part, and inspect the cosmetic face under agreed lighting. These checks answer different questions. Passing the visual inspection does not replace measuring the mounting interface.

Control the Transition to Molded Production

Maintain a revision-controlled comparison between the interim part and the molded design. Draft, ribs, wall thickness, gate locations, ejection marks, and shrinkage behavior require a molding-specific review. A printed prototype that assembles successfully does not prove that the same geometry is ready for tool release.

Close the bridge phase after the production process has passed its agreed qualification and supply can meet the schedule. Keep interim and molded stock identifiable when their material or performance differs. Establish disposition for remaining inventory instead of silently mixing both routes under an uncontrolled label.

When planning the surrounding mechanical parts, share the assembly model, tolerances, and expected production sequence with MTSPi through the project inquiry page. Confirm the proposed scope and process with the team rather than assuming every manufacturing route is available.

Frequently Asked Questions

Can printed bridge parts be sold to customers?

Yes, when the material and finished part are qualified for their intended use and the required approvals and traceability are in place. Prototype acceptance alone is insufficient.

Does bridge production always mean printing?

No. The term describes an interim production role. Machining, casting, or temporary tooling may also be suitable, depending on the part and schedule.

Are printed molds the same as directly printed parts?

No. Direct printing creates the component. A printed mold is tooling used to form a separate component, with its own limits on temperature, pressure, wear, and tool life.

Should every small batch avoid injection molding?

No. Required resin behavior, geometry, repeatability, and available tooling can make molding appropriate even for modest quantities.

Technical reference basis: Formlabs model-orientation guidance and injection-molding application documentation. Cost figures and inspection examples are illustrative planning examples, not production test data.

Categories
Blog Guides Manufacturing Process Comparisons

Industrial 3D Printing Processes: A Requirement-Based Selection Guide

Industrial 3D printing is not one process. Resin vat systems, polymer powder-bed machines, metal powder fusion, filament extrusion, and pellet extrusion produce very different parts even when they start from the same CAD file. The best choice depends on the requirement that cannot be compromised.

A useful selection method filters processes in order: material, build size, feature detail, service conditions, geometry, surface requirements, and quantity. This prevents a visually attractive prototype from being mistaken for a production-capable part.

Quick Answer

Use SLA or DLP for fine visual detail, SLS or MJF for durable nylon geometry without support structures, FDM for economical engineering thermoplastics, FGF for very large parts, and metal powder-bed fusion for high-value metal geometry. Add CNC machining when datums, bores, sealing faces, or tight fits exceed as-printed capability.

Comparison at a Glance

Process family Typical material Best fit Key limitation
SLA / DLP Photopolymer resin Detailed visual and fit models Creep, UV aging, and brittle grades
SLS / MJF Nylon powder Functional parts and complex channels Grainy surface and moderate tolerance
Metal powder fusion Steel, aluminum, titanium, nickel alloy Load-bearing metal geometry Cost, supports, stress relief, finishing
FDM Filament thermoplastics Fixtures, housings, and heat-resistant prototypes Layer anisotropy and visible layer lines
FGF Pellet thermoplastics Large tools, patterns, and structures Coarse detail and machining allowance

1. Start With Material and Service Conditions

Ask whether the part must be metal, a production thermoplastic, an elastomer, transparent, sterilizable, chemically resistant, or stable at temperature. Material requirements remove unsuitable processes faster than comparing nominal resolution.

Resin can reproduce small details but usually does not behave like molded ABS or polycarbonate. Nylon powder processes offer better toughness for functional assemblies. FDM and FGF can use engineering thermoplastics, but orientation affects strength. Metal systems serve demanding thermal and mechanical duties, with post-build heat treatment often required.

  • Define sustained and peak temperature
  • List fluids, cleaners, and UV exposure
  • Separate cosmetic tests from structural tests
  • Identify flame, medical, or aerospace documentation needs

2. Check the Complete Build Envelope

A part must fit along all three machine axes, including supports and orientation. Splitting a large model introduces joints, alignment error, finishing labor, and weaker load paths.

Large-format extrusion is often more practical than joining many small prints. Conversely, a huge machine does not guarantee fine features: nozzle size, layer height, and thermal movement still control detail.

3. Separate Resolution From Tolerance

Layer height and pixel size describe the machine’s smallest increments, not guaranteed dimensional accuracy. Part size, orientation, shrinkage, thermal history, support strategy, and measurement method determine actual results.

For critical interfaces, print near-net geometry and machine the mating faces. This hybrid route is common for metal prints, large FGF tools, and nylon components that need precise bores or sealing surfaces.

  • Mark inspection datums on the drawing
  • Define general and critical tolerances separately
  • Add stock to faces that will be machined
  • Confirm fixture access before printing

4. Let Geometry Decide Support Strategy

Powder-bed nylon surrounds the part with loose powder, enabling internal passages and complex overhangs without attached supports. Resin, filament, pellet, and metal processes require deliberate support and removal access.

Hollow resin parts need drainage. Metal channels may trap powder or support material. Long flat walls can warp. Design reviews should address escape holes, minimum walls, unsupported spans, trapped volumes, and inspection access before the build starts.

5. Plan Surface Finish as an Operation

SLA and DLP can deliver smooth visual surfaces after support removal and light finishing. SLS and MJF have uniform powder texture. FDM and especially FGF retain layer lines. Metal powder fusion normally needs blasting plus machining on critical faces.

Polishing changes texture but cannot create a precision datum. Machining controls dimensions but may not reach every cosmetic surface. Specify appearance zones and functional zones separately so the quote includes the right operations.

6. Match the Process to Quantity and Design Maturity

Printing is valuable while CAD changes frequently because there is no hard tool to remake. Unit cost remains relatively linear, so tooling becomes attractive after geometry stabilizes and demand rises.

A practical development route may use resin for early appearance, nylon for functional testing, CNC machining for production-material validation, and vacuum casting or injection molding for repeated plastic parts.

A Seven-Step RFQ Checklist

A complete request reduces quotation uncertainty and prevents the supplier from choosing a process based only on file format.

  • Material or required properties
  • Overall dimensions and smallest features
  • Critical tolerances and datums
  • Loads, temperature, and chemical exposure
  • Internal channels and support-removal access
  • Surface finish and color
  • Prototype quantity and expected future volume

Frequently Asked Questions

Which industrial 3D printing process is most accurate?

SLA and DLP generally reproduce the finest small details, but accuracy depends on geometry and scale. Tight functional dimensions may still require secondary machining.

When should CNC machining replace 3D printing?

Use CNC machining when the part needs production-grade stock properties, precise datums, threads, sealing surfaces, predictable tolerances, or a finish that is difficult to achieve additively.

Can printed parts be used for production?

Yes, when the material, process control, inspection, traceability, and economics meet the application. Production suitability must be demonstrated rather than assumed.

Related MTSPi Resources

Categories
Blog CNC Materials Manufacturing Process Comparisons Quality & Tolerances

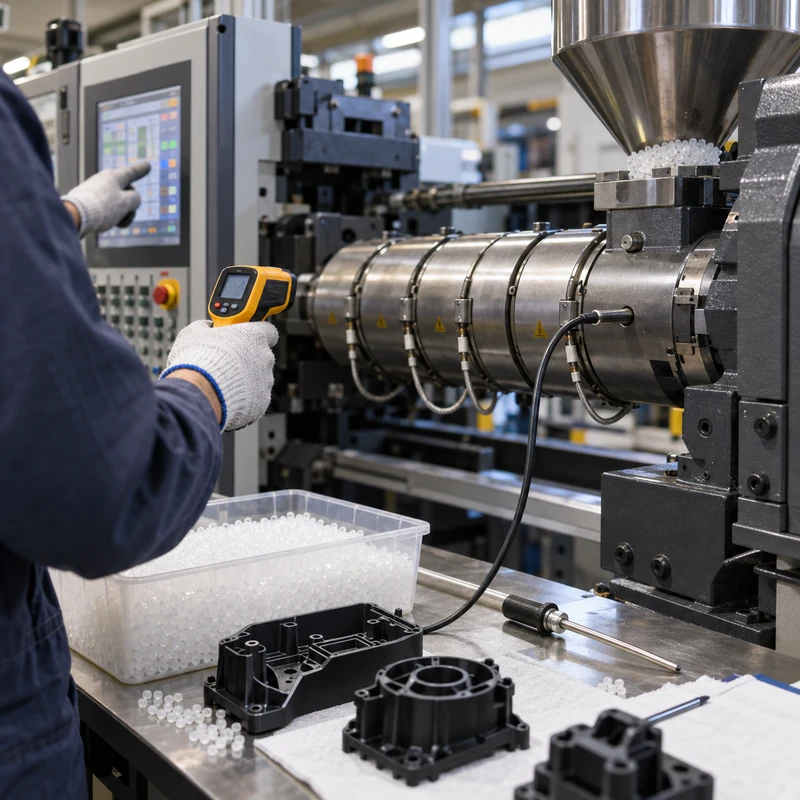

Injection Molding Melt Temperature Guide: Materials, Settings, and Defect Control

Injection molding melt temperature controls viscosity, cavity filling, weld lines, surface replication, shrinkage, molecular orientation, and degradation. It is related to barrel-zone settings but is not identical to the displayed heater temperatures.

The correct range depends on polymer grade, additives, moisture, residence time, shear, screw design, machine size, part geometry, and mold temperature. Material supplier data is the starting point, followed by an approved process window.

Quick Answer

Use the resin manufacturer’s grade-specific range, dry the material correctly, measure actual melt when needed, and establish a stable window rather than one nominal number. Change temperature only after considering speed, pressure, back pressure, residence time, and mold conditions.

Comparison at a Glance

Factor Option A Option B
Low melt temperature High viscosity, short shots, weak weld lines Increase within approved window and verify drying
High melt temperature Degradation, gas, discoloration, flash Reduce heat or residence and check shear
Barrel display Shows zone control, not actual melt Verify with purge measurement or validated method
Shear heating Raises polymer temperature during plasticizing and fill Control screw speed and injection speed
Residence time Long exposure can damage resin Match shot size and cycle to machine capacity

Melt Temperature vs Barrel Temperature

Heater bands control barrel zones while the rotating screw generates shear heat. The polymer experiences a thermal history, so actual melt can differ from setpoints. Measure consistently and safely when troubleshooting.

Material Families

Amorphous and semi-crystalline polymers respond differently. ABS, PC, PMMA, PA, POM, PP, PE, PBT, and PEEK each need grade-specific conditions. Filled, flame-retardant, recycled, colored, and medical grades may use different limits.

Drying and Moisture

Hygroscopic materials can hydrolyze at processing temperature, reducing molecular weight and strength even if the part looks acceptable. Confirm dryer temperature, dew point, time, airflow, and material handling.

Defects Linked to Temperature

Low temperature can cause short shots, hesitation, poor knit lines, dull surfaces, and high pressure. Excessive temperature can cause splay, gas, odor, discoloration, flash, sticking, or brittleness. Similar defects can also come from moisture, venting, speed, or mold temperature.

  • Avoid changing several variables at once
  • Record actual conditions and lot
  • Check purge appearance and odor
  • Review residence time and shot utilization
  • Use a structured process study

Building a Process Window

Establish acceptable low and high boundaries for melt, fill speed, pack, cooling, and mold temperature. Validate critical dimensions and appearance across normal variation.

Design and Tooling Interaction

Thin walls, long flow paths, small gates, abrupt thickness changes, weak venting, and poor cooling may force an unnecessarily narrow thermal window. Improve part and mold design instead of relying on hotter material to solve every fill problem.

Quality Documentation

Record resin grade, lot, regrind policy, drying, machine, screw, zone settings, cycle, measured melt, mold temperature, pressure, and inspection results for controlled production.

Frequently Asked Questions

Is melt temperature the same as nozzle temperature?

No. Nozzle temperature is one setpoint; actual melt reflects barrel heating, shear, residence, and heat loss.

Should I use a universal temperature chart?

Charts provide orientation only. Use the exact resin supplier data and validate the process on the actual machine, mold, and part.

What happens if nylon is wet?

Moisture can create splay and hydrolytic degradation during melting, reducing strength. Proper drying and handling are essential.

Related MTSPi Resources

Categories
Blog Manufacturing Process Comparisons Quality & Tolerances

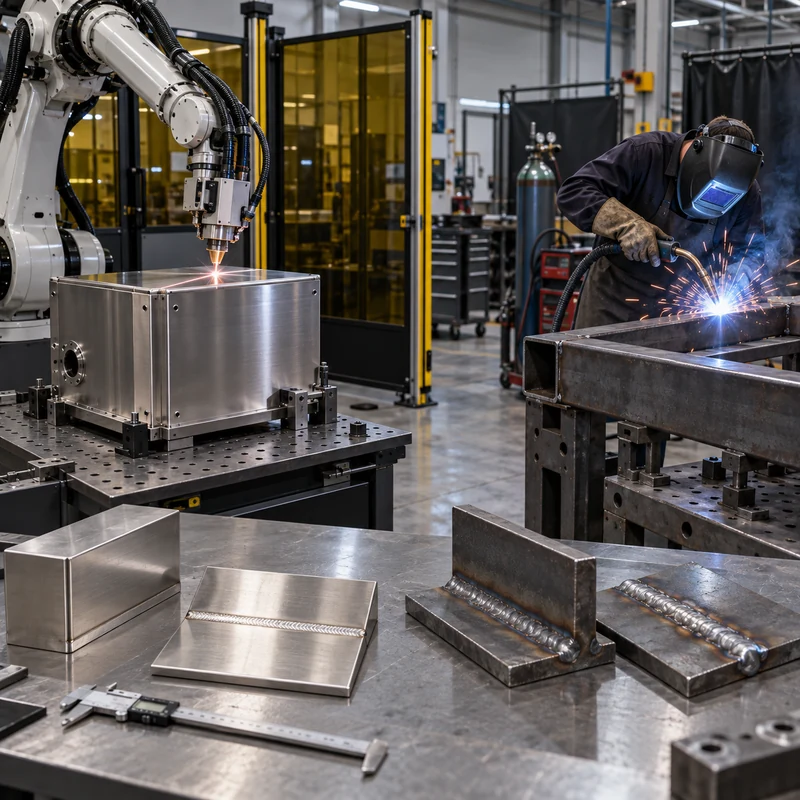

Laser Welding vs MIG Welding: Differences, Applications, and Design Rules

Laser welding and MIG welding can both create strong production joints, but they differ in energy concentration, fit-up tolerance, speed, automation, filler use, heat input, and equipment cost. The right process starts with the joint and production system, not a headline about speed.

This comparison focuses on practical design, quoting, distortion, and inspection for fabricated and machined assemblies.

Quick Answer

Choose laser welding for precise repeatable joints, low heat input, limited distortion, and automated sheet-metal production with excellent fit-up. Choose MIG for versatile structural fabrication, thicker sections, larger gaps, repairability, and lower equipment barriers.

Comparison at a Glance

Factor Option A Option B
Heat source Concentrated laser beam Electric arc with wire electrode
Fit-up Requires tight consistent joints More tolerant of gaps with filler
Speed Very high in automated cells Productive but generally slower
Distortion Often lower due to focused heat Higher heat input can increase movement
Investment High equipment and safety cost Lower and widely available

Process Fundamentals

Laser welding focuses optical energy into a small zone and may operate with or without filler. MIG continuously feeds consumable wire through a shielding-gas torch, making filler addition part of the process.

Joint Design and Fit-Up

Laser joints need consistent gap, edge position, focus, and cleanliness. MIG can bridge more variation but still needs suitable preparation, access, and control.

  • Define joint gap and edge condition
  • Provide fixture and clamp access
  • Avoid hidden reflections for laser cells
  • Plan torch angle and stickout for MIG
  • Control coatings and contamination

Materials and Thickness

Both methods can join steels, stainless, and selected aluminum alloys. Reflective materials, coatings, dissimilar combinations, and crack-sensitive alloys require process development. Thick sections may need multi-pass MIG or hybrid strategies.

Distortion and CNC Interfaces

Laser welding often protects nearby precision features through lower heat input, but fixtures and sequence still matter. MIG assemblies may require post-weld machining of datums, bores, and sealing faces.

Production Economics

Laser systems cost more but can deliver rapid automated cycles and low finishing labor at volume. MIG equipment is accessible and flexible for mixed fabrication. Calculate fixture, programming, filler, gas, cleanup, inspection, and rework.

Inspection and Quality

Visual inspection, dimensional checks, cross-sections, leak testing, penetrant, radiography, or other NDT may be appropriate. Acceptance criteria should match joint consequence.

  • Approve weld procedure and samples
  • Monitor penetration and porosity
  • Check distortion against final datums
  • Trace parameters for critical programs

Frequently Asked Questions

Is laser welding stronger than MIG?

Strength depends on joint design, penetration, material, defects, and procedure. Either can meet demanding requirements when correctly engineered.

Does laser welding need filler wire?

Not always. Autogenous laser welding is common, but filler may help metallurgy, gap bridging, or reinforcement.

Which process is cheaper?

MIG is usually cheaper to start. Laser can lower unit cost in repeatable automated production where speed and reduced finishing offset capital cost.

Related MTSPi Resources

Categories
Blog Design, Cost & Sourcing Manufacturing Process Comparisons

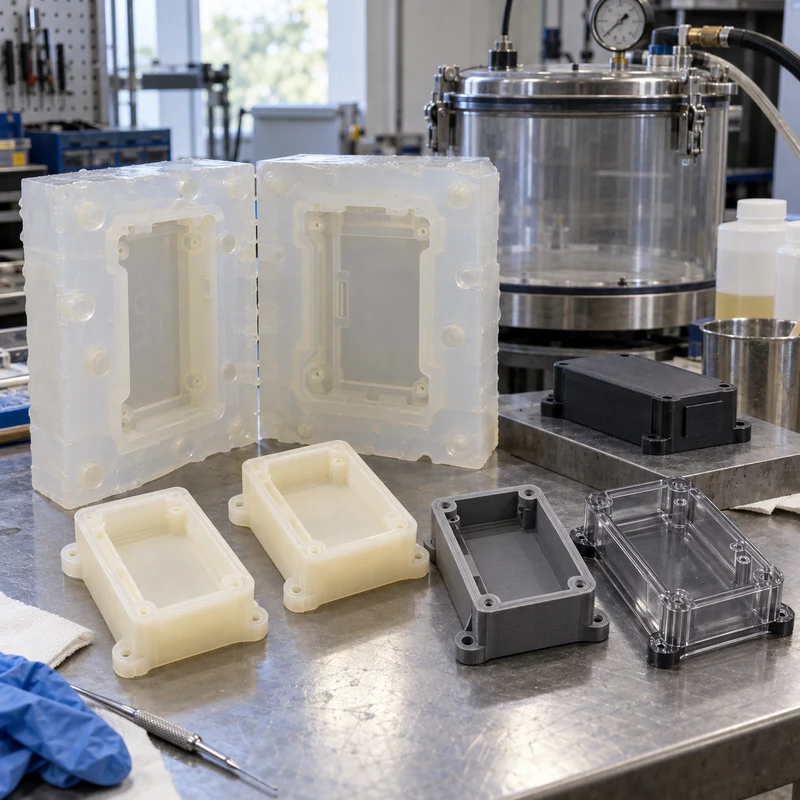

Vacuum Casting vs 3D Printing: Choosing the Right Plastic Prototype Process

Vacuum casting and 3D printing are both practical routes for plastic prototypes and low-volume parts, but they solve different problems. Printing builds each part directly from digital data. Vacuum casting first needs a master pattern and silicone mold, then reproduces polyurethane parts with molded appearance.

The decision should be based on what the prototype must prove, how many copies are needed, and whether appearance, material behavior, geometry, or speed carries the most value.

Quick Answer

Choose 3D printing for one-off geometry, rapid iteration, complex internal features, and early design learning. Choose vacuum casting when you need a small batch of consistent, molded-looking parts with color, texture, transparency, or overmold simulation.

Comparison at a Glance

Factor Option A Option B
Quantity Excellent for one to several parts Better economics for repeated small batches
Tooling No physical mold Silicone mold and master required
Geometry Strong for complex shapes Needs castable geometry and venting
Surface Process-dependent layer or powder texture Replicates master surface closely
Changes Update file and print again May require new master and mold

How the Processes Work

Additive systems create parts layer by layer using filament, resin, powder, or other feedstock. Vacuum casting places a master inside silicone, removes the master after curing, then draws mixed polyurethane into the mold under vacuum.

Material and Functional Behavior

Printed polymers and cast polyurethane families can imitate different stiffness, clarity, heat resistance, and impact behavior, but neither should automatically be treated as production injection-molded resin. Use CNC machining when production-intent stock properties are essential.

Cost and Lead Time

Printing avoids mold preparation, making it fast for first parts and frequent revisions. Vacuum casting adds master and mold time but spreads that setup over repeated copies. Finishing, inspection, paint, inserts, and assembly may dominate either quote.

  • Define quantity and revision risk
  • Specify visible and critical surfaces
  • Identify inserts, colors, and textures
  • Quote finishing separately

Design Rules

Printing needs process-specific minimum walls, holes, supports, and powder escape. Casting needs draft where practical, controlled wall thickness, gates, vents, and accessible parting strategy.

Scaling Toward Production

Use early prints to validate form, then cast parts for stakeholder trials or pilot builds. Before injection molding, update CAD and drawings using test results rather than assuming prototypes prove production capability.

Quality Checklist

Inspect dimensions that control assembly, visual limits, bubbles, voids, warpage, inserts, color, hardness, and surface finish. Approve a representative sample and define how later parts are compared.

Frequently Asked Questions

Which is cheaper?

3D printing is usually cheaper for one or a few parts; vacuum casting often becomes competitive for repeated small batches with molded appearance.

How many parts can a silicone mold make?

Tool life depends on geometry, resin, undercuts, temperature, and surface requirements. Suppliers should quote an expected range rather than a guaranteed universal number.

Can vacuum-cast parts replace injection-molded testing?

They can support many fit, appearance, and limited functional tests, but material and process differences must be considered.

Related MTSPi Resources

Categories
Blog Design, Cost & Sourcing Guides Manufacturing Process Comparisons

3D Printing Prototype Cost Guide: Pricing Factors and Scale-Up Decisions

3D printing prototype cost can range from a small desktop build to an expensive certified metal component. Price is driven by process, material, bounding volume, build height, supports, machine time, nesting, post-processing, inspection, quantity, and failure risk.

A useful estimate begins with what the prototype must prove. A visual model, fit-check part, functional nylon component, transparent flow model, and metal load-bearing prototype should not use the same process or budget.

Quick Answer

Choose the least expensive process that answers the current design question. FDM often suits early form and fit, SLA suits detail and smooth appearance, SLS or MJF suits functional nylon, and metal powder-bed fusion suits valuable complex metal geometry. Use CNC when production material, tight tolerances, or machined surfaces are essential.

Key Engineering Factors

Factor Practical effect Control method
Part size Larger bounding volume consumes capacity Hollow noncritical volumes and split models carefully
Build height More layers increase machine time Orient around function, finish, and risk
Support Adds material and removal labor Place supports on noncritical surfaces
Material Engineering and metal feedstocks cost more Match material to the test purpose
Finishing Sanding, dyeing, machining, and coating add labor Specify only required surfaces

Cost by Prototype Purpose

Appearance models prioritize detail, color, and finish. Fit models prioritize dimensions and interfaces. Functional models add material behavior, load, temperature, and fatigue. Certification or end-use parts add traceability and inspection.

Process Cost Differences

FDM has low material and equipment cost but visible layers and directional strength. SLA provides fine detail but requires washing, curing, and support finishing. SLS and MJF nest parts in powder and suit functional batches. Metal printing adds powder control, supports, heat treatment, and machining.

Geometry That Raises Price

Tall builds, large solid volumes, extensive supports, trapped powder, thin fragile features, difficult cleaning, and tight tolerances raise cost. A complex-looking lattice may be economical if it prints support-free, while a simple tall wall may dominate build time.

  • Separate cosmetic and functional surfaces
  • Avoid unnecessary solid mass
  • Provide drain and powder-removal openings
  • Use realistic minimum walls and holes
  • Add stock for machined critical features

Quantity and Build Utilization

Unit cost can fall when multiple parts share setup and build capacity, especially in powder-bed systems. However, a larger batch also increases exposure if the design is unverified. Order a small validation lot before scaling.

Post-Processing and Inspection

Support removal, blasting, curing, dyeing, smoothing, painting, heat treatment, HIP, CNC finishing, threaded inserts, and CMM inspection can exceed the raw print cost. Quote them explicitly.

When to Move to CNC or Injection Molding

Move to CNC when the design needs production-intent stock, tight bores, flat sealing faces, threads, surface roughness, or predictable isotropic behavior. Consider molding when design and demand stabilize enough to recover tooling cost.

  • Use printing for fast learning
  • Use CNC for material and tolerance validation
  • Use bridge tooling for uncertain early demand
  • Calculate total lifetime cost before production tooling

RFQ Checklist

Send a STEP file, process or material preference, quantity, finish, color, critical tolerances, inspection level, and delivery requirement. Explain what the prototype must prove so the supplier can recommend alternatives.

Frequently Asked Questions

What is the cheapest 3D printing process?

FDM is often cheapest for simple early prototypes, but the best value depends on size, detail, quantity, material, and finishing.

Why is metal 3D printing expensive?

Metal systems require costly equipment, controlled powder, long builds, supports, heat treatment, safety procedures, inspection, and frequent CNC post-processing.

Is 3D printing always cheaper than CNC machining?

No. CNC can be more economical for simple geometry, production material, precise features, and small batches where printed post-processing is extensive.

Related MTSPi CNC Resources

Categories
Blog CNC Materials Guides Manufacturing Process Comparisons

PVC Extrusion Guide: Process, Materials, Design Rules, and Quality Control

PVC extrusion produces continuous rigid and flexible profiles for construction, equipment, electrical, fluid-handling, sealing, and industrial applications. PVC is versatile and cost-effective, but it is thermally sensitive and requires controlled compounding and processing.

This guide explains the full route from compound and die to cooling, haul-off, cutting, inspection, and secondary machining.

Quick Answer

Rigid PVC suits structural profiles, channels, pipe, and housings. Flexible PVC suits seals, sleeves, and cable-related products. Stable results require correct formulation, gentle heat history, balanced die flow, controlled cooling, and inspection after conditioning.

Key Engineering Factors

Factor Practical effect Control method
Compound Stabilizers, impact modifiers, pigments, and fillers change behavior Lock the approved formulation
Heat history Excess temperature can degrade PVC Control barrel, die, screw, and residence time
Profile balance Uneven sections distort during cooling Use balanced walls and calibrated surfaces
Cooling Controls final size and residual stress Maintain consistent vacuum and water conditions
Weathering UV and environment change service life Specify outdoor grade and color requirements

Rigid PVC vs Flexible PVC

Rigid PVC has higher stiffness and is common in profiles, pipe, conduit, and frames. Flexible PVC contains plasticizers and is used for seals, tubing, sleeves, and protective components. Their tooling, shrinkage, hardness, and testing requirements differ.

PVC Extrusion Process

Dry blend or pellets feed the extruder, where the screw conveys, heats, mixes, and pressurizes the compound. The die shapes the melt. Calibration and cooling stabilize it, the haul-off controls speed, and a saw or cutter creates final lengths.

Profile Design Rules

Uniform walls and gradual transitions improve flow. Multi-chamber profiles need webs that remain stable through calibration. Sharp corners, isolated thick masses, and fragile fins increase tooling and process risk.

  • Use radii at internal transitions
  • Balance opposite walls where possible
  • Allow room for calibration tooling
  • Define visible surfaces and texture
  • Identify mating and sealing dimensions

Common PVC Extrusion Defects

Burn marks can indicate degradation or stagnation. Wavy surfaces may reflect unstable output or pull. Bow and twist arise from unbalanced cooling. Die lines, poor gloss, bubbles, and dimensional drift each require process-specific diagnosis.

  • Do not solve every defect by changing line speed
  • Check compound moisture and contamination
  • Inspect die buildup and flow restrictions
  • Confirm cooling and puller alignment

Quality and Testing

Dimensional inspection should include cross-section, wall thickness, bow, twist, cut length, and fit with mating parts. Depending on service, test impact, hardness, color, gloss, weathering, flammability, chemical resistance, or low-temperature behavior.

Secondary Fabrication and CNC Work

PVC profiles can be drilled, routed, milled, punched, welded, bonded, printed, and assembled. Cutting heat and clamping pressure must be controlled to prevent melting, cracking, or deformation.

Sourcing Checklist

Provide a controlled cross-section drawing, CAD data, compound specification, color, surface requirements, expected volume, packaging, cut length, environmental exposure, and test standards. Approve conditioned samples before final tooling release.

Frequently Asked Questions

Does PVC need drying before extrusion?

Requirements depend on the compound and storage. Moisture and contamination should still be controlled even when drying is less demanding than for hygroscopic polymers.

Can recycled PVC be used?

It can be used in suitable products, but formulation consistency, contamination, color, and mechanical requirements must be controlled.

Why does PVC turn yellow or brown?

Discoloration often indicates excessive heat, residence time, shear, or inadequate thermal stabilization.

Related MTSPi CNC Resources

Request A Quote

We'll Send You Back with Price Immediately!

DEC 1-31

XMAS SPECEIL

Up to

40% off

PVC Extrusion Guide: Process, Materials, Design Rules, and Quality Control

We'll Send You Back with Price Immediately!
